The Summit 11.7 Cu.Ft. Dipping Cabinet is a must-have for any ice cream shop! This unassembled cabinet provides ample space to store and display a wide variety of flavors, while keeping them at the perfect temperature for dipping. With its sleek design and efficient functionality, this cabinet is essential for any business that takes their ice cream seriously.
Made in Denmark with a durable glass sneezeguard included for fast installation to provide a clear but protected view of ice cream and other frozen treats
Summit Commercial's line offers the industry's best value on European ice cream storage and display, with a full series of chest freezers and matching glass sneezeguards.
Made for us by Elcold in Denmark, the NOVA35GDC is a 43" wide flat top ice cream freezer and compatible glass sneezeguard with a curved design and aluminum work surface. The sneezeguard is packaged unassembled with the freezer for safer shipping and is easy to install for fast use.
The NOVA35 freezer features 11.7 cu.ft. of storage. Two tempered glass lids on ball-bearing glides open and close smoothly to save your staff time and ensure ice cream isn't overexposed to warmer air temperature. We include a removable keyed lock to allow users the option of securing their goods. The white cabinet suits any setting, while the gray lid trim offers an added touch of clean style. Casters are included for optional installation. The digital thermostat is externally located for easy temperature management, with a wide range from -13 to 23ºF to accommodate a variety of desserts. We pre-set the unit to -4ºF.
Inside, the NOVA35 freezer features a steel interior in a clean white finish designed for lasting durability in busy commercial settings. We include 3 wire tub holder baskets with plastic lids to hold 6 11" round/3 gallon ice cream tubs, with room to store an additional 4 under the baskets. Extra novelty baskets are also packaged inside for alternate storage. This unit utilizes a manual defrost cooling system with environmentally friendly R290a cooling agent and extra thick insulation to ensure added reliability. A drain is included for easy defrosting.
The NOVA35GDC is UL-S listed to NSF-7 commercial standards. Additional sizes are available.
Note: Gelato pan holders are also available. To substitute the baskets, contact our sales team at 718-893-3900 ext. 507.
|
Overview
|
| Height of Cabinet |
49.5" (126 cm) |
| Width |
43.0" (109 cm) |
| Depth |
27.25" (69 cm) |
| Capacity |
11.7 cu.ft. (331 L) |
| Defrost Type |
Manual |
| Door |
Glass |
| Cabinet |
White |
| US Electrical Safety |
UL |
| Canadian Electrical Safety |
ULC |
| Sanitation |
UL-S |
| Amps |
7.2 |
| Voltage/Frequency |
115 V AC/60 Hz |
| Weight |
220.0 lbs. (100 kg) |
| Shipping Weight |
275.0 lbs. (125 kg) |
| Parts & Labor Warranty |
1 Year |
| Compressor Warranty |
5 Years |
| UPC |
761101065014 |
|
Freezer
|
| Door Swing |
Sliding |
| Interior Height |
26.0" (66 cm) |
| Interior Width |
36.75" (93 cm) |
| Interior Depth |
21.0" (53 cm) |
| Thermostat Type |
Digital |
| Refrigerant Type |
R290a |
| Refrigerant Amount |
3.03 oz. |
| High Side PSI |
345.0 |
| Low Side PSI |
140.0 |
| Compressor Step Height |
9.75" (25 cm) |
| Compressor Step Width |
7.88" (20 cm) |
| Compressor Step Depth |
21.0" (53 cm) |
| Temperature Range |
-13 to 23ºF |
European dipping cabinet
Ice cream freezer made in Denmark with glass sneezeguard included for the optimum serving and storing conditions
Commercially approved
UL-S listed to NSF-7 Standards for use in commercial establishments
Glass sneezeguard included
3-piece glass sneezeguard made in Denmark with a curved front for optimum visbility
Aluminum work surface
Sneezeguard surface is finished in brushed aluminum to hold up to heavy duty use in busy commercial settings
Digital thermostat
Electronic controls for more precise temperature management
Wide temperature range
Digital thermostat can be set between -13 and +23ºF to accommodate a variety of frozen treats

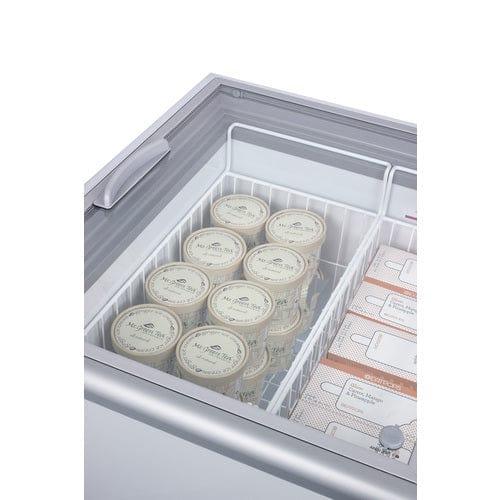

Ice cream tub holders
Three epoxy coated wire baskets with plastic lids included to hold standard ice cream tubs in place
Holds 10 standard 3 gallon tubs
Unit can store 4 tubs on the floor and display an additional 6 using the provided baskets
Novelty baskets included
Two extra epoxy-coated wire baskets packaged inside freezer for standard novelty treats
Sliding glass lid
Two tempered glass lids on ball-bearing glides slide open and closed easily for added efficiency
Strong insulation
3" thick insulation helps to ensure items stay cold
Casters
Heavy duty wheels for smooth mobility (ship unassembled)

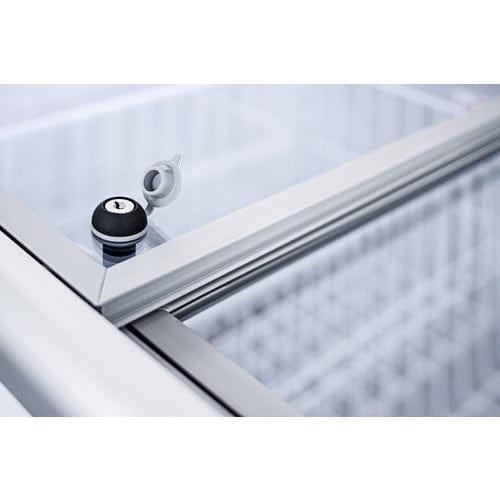

Removable lock
A keyed lock is included for optional use
Manual defrost
Static cooling system for improved temperature stability
Defrost drain
Front located for easier defrosting
Fan-cooled compressor
Offers improved temperature performance throughout the interior
Steel interior
Durable construction in a white finish for easy visibility
Easy assembly
Sneezeguard ships unassembled for safer transportation and can be installed in just a few easy steps
100% CFC Free
Environmentally friendly design with no ozone-damaging chemicals
CARB Compliant
Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
