Front-breathing design allows built-in installation under the counter in 15" wide spaces
SUMMIT offers a complete line of 15" wide appliances for built-in installation under residential or commercial counters.

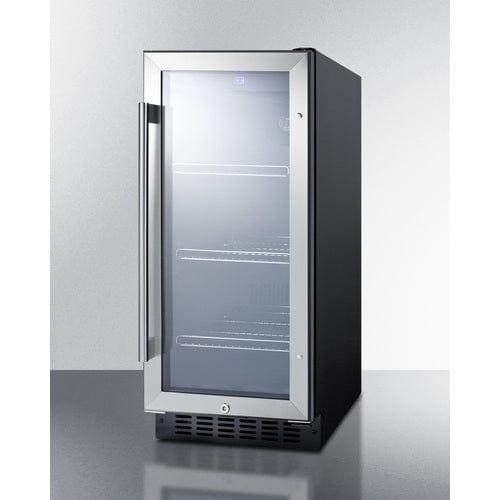

The SCR1536BG is a slim-fitting 14 3/4 inch wide beverage refrigerator that meets UL-471 standards and is ETL-S listed to NSF-7 for use in commercial settings but is also approved for residential applications. The front-breathing design allows built-in installation under counters, while the fully finished black cabinet also makes it possible to use freestanding. This unit features a user-reversible double pante tempered glass with door with stainless steel trim. A factory-installed lock offers convenient security as needed.
Inside, the SCR1536BG includes three adjustable chrome shelves for flexible storage. LED lighting offers an attractive and efficient view inside the black interior. The interior control panel includes a digital thermostat for easy temperature control, with an external readout in Celsius or Fahrenheit. This unit utilizes automatic defrost for easy maintenance. Additional features include audible warning alarms for high temperature and open door alerts, Sabbath mode, and a temperature memory function that restores your settings in the event of power loss.
With its perfect size and user-friendly features, the SCR1536BG brings true convenience under the counter. To create a complete bar set, pair this model with our matching SWC1535B wine cellar, along with our extended lineup of 15" wide refrigerators, freezers, and icemakers.
|
Overview
|
| Height of Cabinet |
33.88" (86 cm) |
| Width |
14.75" (37 cm) |
| Depth |
22.75" (58 cm) |
| Depth with Handle |
24.63" (63 cm) |
| Depth with door at 90° |
36.25" (92 cm) |
| Capacity |
2.45 cu.ft. (69 L) |
| Defrost Type |
Automatic |
| Door |
Glass |
| Cabinet |
Black |
| US Electrical Safety |
ETL |
| Canadian Electrical Safety |
ETL-C |
| Sanitation |
ETL-S |
| Energy Usage/Year |
250.0kWh/year |
| Amps |
1.0 |
| Voltage/Frequency |
115 V AC/60 Hz |
| Weight |
77.0 lbs. (35 kg) |
| Shipping Weight |
102.5 lbs. (46 kg) |
| Parts & Labor Warranty |
1 Year |
| Compressor Warranty |
5 Years |
| UPC |
761101050225 |
|
Refrigerator Features
|
| Sabbath Mode |
Yes |
| Door Swing |
RHD |
| Reversible |
Yes |
| Shelf Type |
Chrome |
| Shelf Qty |
3 |
| Thermostat Type |
Digital |
| Refrigerant Type |
R600a |
| Refrigerant Amount |
0.64oz. |
| High Side PSI |
270.0 |
| Low Side PSI |
105.0 |
| Level Legs Qty |
4 |
| Interior Light |
Yes |
|
Dimensions
|
| Interior Height |
23.5" (60 cm) |
| Interior Width |
10.25" (26 cm) |
| Interior Depth |
16.5" (42 cm) |
| Compressor Step Height |
3.75" (10 cm) |
| Compressor Step Width |
10.25" (26 cm) |
| Compressor Step Depth |
4.5" (11 cm) |
| Exterior |
| LHD - Left hand door swing |
Latch - Factory-installed door latch requires manual release to open unit |
| SSK - Stainless steel kickplate |
|
| Door |
| T4 Door Tint |
T3 Door Tint |
| T2 Door Tint |
T1S Door Tint |
| T1 Door Tint |
|
Commercially approved
ETL-S listed to NSF-7 Standards for use in commercial establishments
Built-in capable
Make the best use of space by installing your appliance under the counter
Fully finished black cabinet
Allows the unit to be used freestanding
Glass door with stainless steel trim
Provides a full display of stored contents with a heat-safe double tempered design
Factory installed lock
Keyed security on the door
Digital thermostat
Electronic controls for precise temperature management.
Digital display
Temperature readout can be shown in Celsius or Fahrenheit
LED lighting
Gentle illumination with an on/off switch
Automatic defrost
Reduced maintenance with the convenience of auto defrost
Adjustable chrome shelves
Slide-out shelves offer attractive and convenient storage for beverages
Reversible door
Keep your options flexible with a reversible door that is easy to switch when your arrangement changes
Professional handle
Stainless steel look for added elegance
Open door alarm
Audible alarm will sound if the door is left ajar for over a minute
High temperature alarm
Alerts if the temperature exceeds suggested range
Sabbath mode setting
Optional setting lets you disable the lighting and alarm for up to 48 hours
Right angle plug
Design allows you to plug the unit in flush against the wall socket with no need to add extra depth
Flush back
Space saving design
100% CFC Free
Environmentally friendly design with no ozone-damaging chemicals
CARB Compliant
Environmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
