The Summit 18" Wide 2-Drawer All-Refrigerator is the perfect addition to any kitchen, providing ample space and easy access with its wide 2-drawer design. This ADA compliant fridge offers convenience and functionality for all, without sacrificing style. Add your own personalized touch with panels (not included).
Panel-ready drawers allow you to customize the front to achieve the perfect style for every indoor or outdoor kitchen space
Summit manufactures an extensive selection of drawer refrigeration for versatile installation indoor or outdoor kitchen spaces, with customizable designs that allow easy integration into any cabinet style.

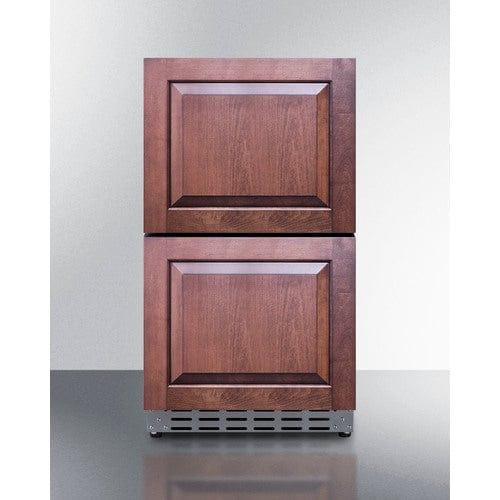

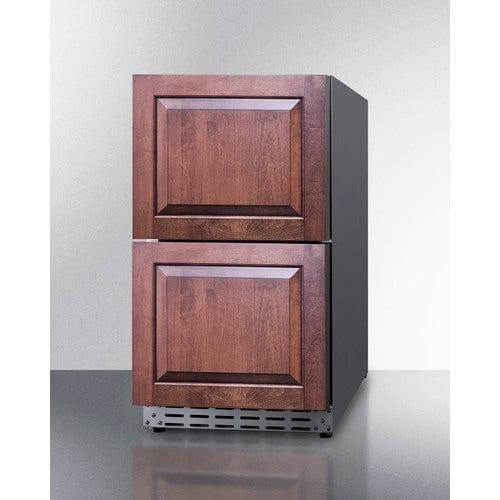

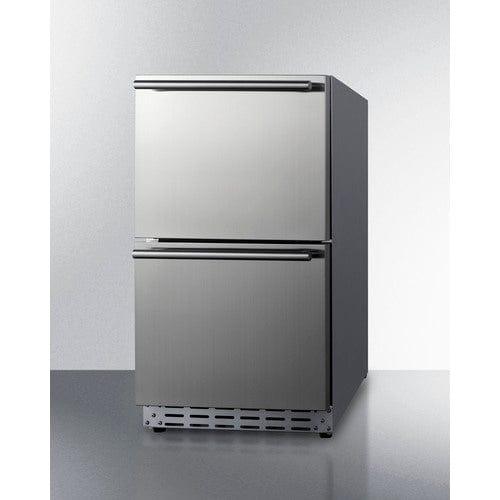

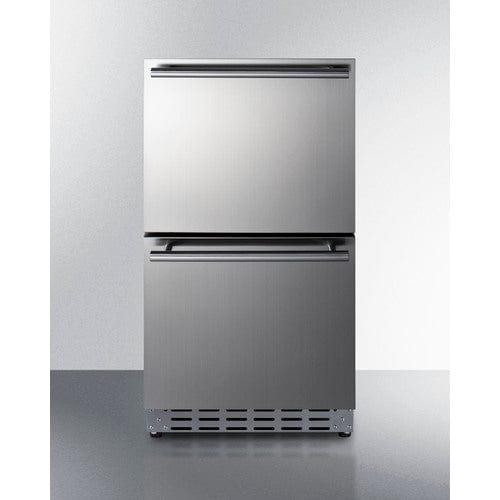

The ADRD18PNR is a two-drawer all-refrigerator sized just under 32 inches high for installation under lower ADA compliant counters. The front-breathing design and finished 304 grade stainless steel cabinet allow for built-in or freestanding use. The drawer front are specially designed to accept user-provided overlay panels, allowing you to create a custom look that blends into existing cabinetry (panel dimensions: 17.7" W x 14" H at 3/4" thick). The drawers are fully finished in stainless steel. We include two sleek handles for optional use. Soft close glides allow you to gently close each drawer with a light touch. The stainless steel kickplate and stylish handles complete the look. This unit features a right angle cord and sealed rear for added space spacings.
Frost-free operation ensures minimum user maintenance inside the 3.4 cu ft. interior. Each drawer includes a divider to make it easier to separate and organize your storage, with attractive and efficient LED lighting to illuminate the interior. Intuitive digital controls display a temperature readout switchable from Fahrenheit to Celsius to best suit your preference. High/low temperature alarms audibly warn if the interior goes out of the recommended range. Additional features include an open drawer alarm, child lock to secure the controls, sabbath mode for optional observance, and eco-mode for energy savings.
Model ADRD18PNR is ETL-S listed to NSF-7 commercial standards and also meets DOE guidelines for residential use. This unit is also approved for use in outdoor kitchens. Additional 18" wide options are available in front-opening styles as refrigerators, freezers, icemakers, beverage centers, and wine cellars. Browse the complete Summit lineup for more options.
|
Overview
|
| Height of Cabinet |
31.5" (80 cm) |
| Width |
17.75" (45 cm) |
| Depth |
23.25" (59 cm) |
| Depth with Handle |
25.0" (64 cm) |
| Depth with door at 90° |
37.0" (94 cm) |
| Capacity |
3.4 cu.ft. (96 L) |
| Defrost Type |
Frost-Free |
| Door |
Stainless Steel/Panel-Ready |
| Cabinet |
Stainless Steel |
| US Electrical Safety |
ETL |
| Canadian Electrical Safety |
ETL-C |
| Sanitation |
ETL-S |
| Energy Usage/Year |
259.0kWh/year |
| Amps |
1.25 |
| Voltage/Frequency |
115 V AC/60 Hz |
| Weight |
100.0 lbs. (45 kg) |
| Shipping Weight |
117.5 lbs. (53 kg) |
| Parts & Labor Warranty |
1 Year |
| Compressor Warranty |
5 Years |
| UPC |
761101088709 |
|
Refrigerator Features
|
| Sabbath Mode |
Yes |
| Door Swing |
Drawer |
| Thermostat Type |
Digital |
| Fan Type |
Interior and Exterior |
| Refrigerant Type |
R600a |
| Refrigerant Amount |
1.23oz. |
| High Side PSI |
150.0 |
| Low Side PSI |
50.0 |
| Level Legs Qty |
4 |
| Interior Light |
Yes |
| Interior Drawers |
Yes |
| Interior Drawers Qty |
2 |
| Temperature Range |
34 to 65°F |
|
Drawer Dimensions
|
| Interior Height 1 |
8.75" (22 cm) |
| Interior Width 1 |
12.75" (32 cm) |
| Interior Depth 1 |
17.5" (44 cm) |
| Interior Height 2 |
10.5" (27 cm) |
| Interior Width 2 |
12.75" (32 cm) |
| Interior Depth 2 |
17.5" (44 cm) |
|
Dimensions
|
| Compressor Step Height |
5.75" (15 cm) |
| Compressor Step Width |
12.75" (32 cm) |
| Compressor Step Depth |
4.75" (12 cm) |
18" wide drawer refrigerator
Two-drawer design in a unique 18" width ideal for undercounter spaces
Commercially approved
ETL-S listed to NSF-7 standards for commercial use
ADA compliant
32” height allows for installation under lower ADA compliant counters

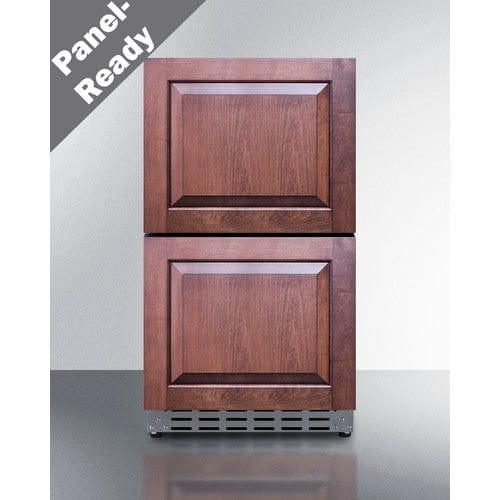

Panel-ready drawer fronts
Drawers can be customized with overlay panels sized (at 14" H x 17.7" W at 3/4" thick) to match or accent existing cabinetry
Built-in capable
Front-breathing design allows the unit to be built-in under counters
Stainless steel construction
Complete 304 grade stainless steel inside and out to ensure lasting durability with a luxurious look
Indoor/Outdoor compatible
Durable, weatherproof construction designed to hold up to the elements

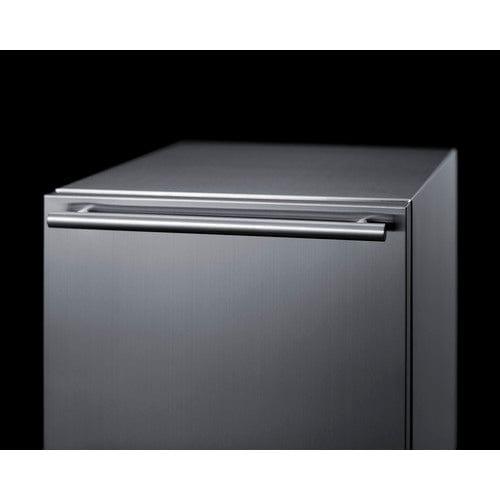

Professional handles
Stainless steel handles add style to any setting
Frost-free
No-frost operation for minimal user maintenance
Interior lighting
Soft LED lighting makes for easy viewing of each drawer’s contents

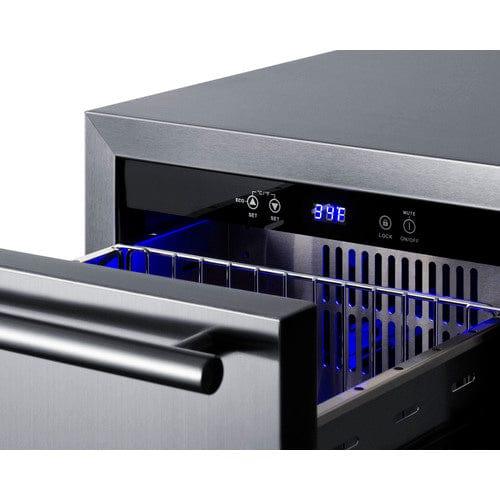

Digital thermostat
Electronic controls for seamless temperature management, with readout in either Celsius or Fahrenheit
Digital display
Large display allows for easy readability and unit control
Temperature alarm
Alarm alerts you if the unit’s temperature goes beyond recommended high and low temperature ranges
Open drawer alarm
Audible alarm sounds if the drawers are left open for more than five minutes
Sabbath mode
Optional feature disables alarms, interior light, and displays for up to 96 hours

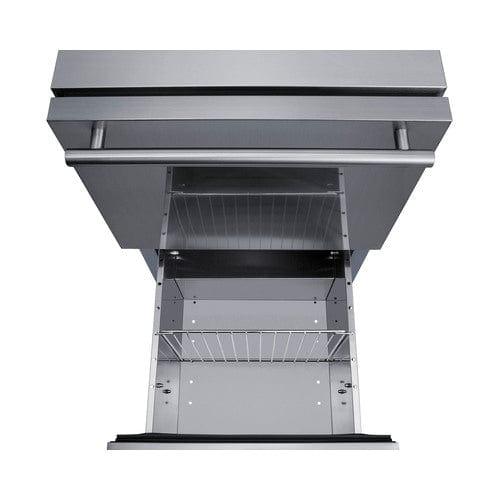

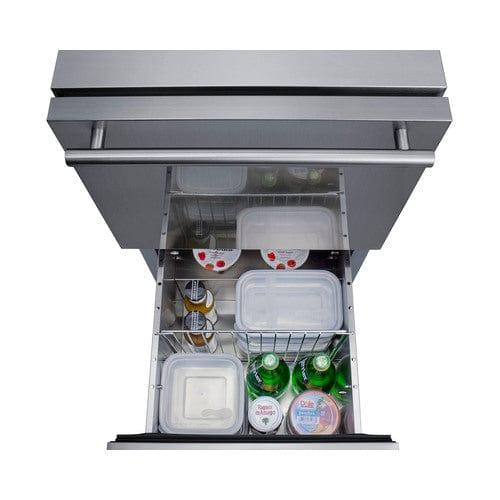

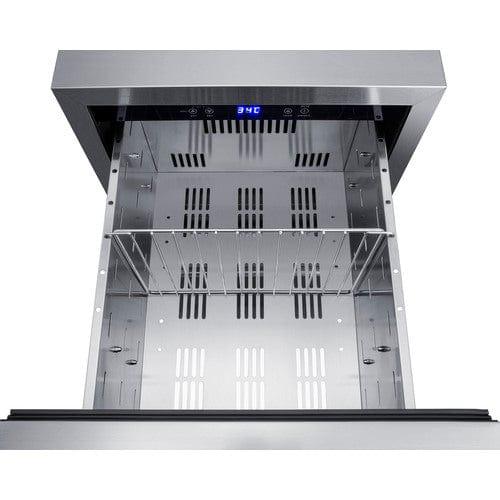

Drawer dividers
Each drawer includes an adjustable divider to allow easier organization of your storage

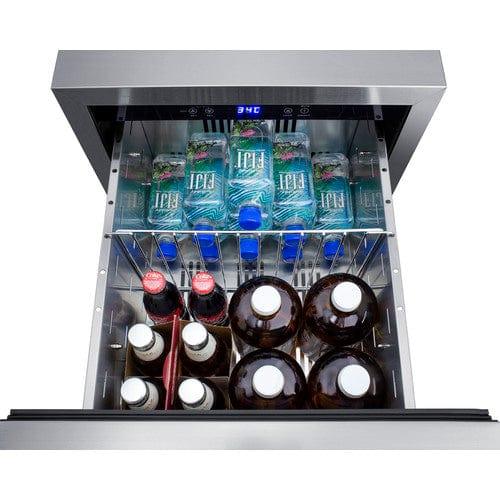

Holds tall bottles
Lower drawer has a 10.5" height to accommodate taller bottles as needed
Right-angle plug
Space-saving plug allows unit to sit flush against the wall
Sealed back
Ensures easier cleanup and a better fit with no exposed coils in the rear
Fan-forced cooling
Provides for efficient, even cooling of the entire unit
Soft-close drawers
Anti-slam drawers allow you to gently push to close
Anti-tip bracket
Included bracket recommended for installation to help prevent tipping for added safety
Fully finished cabinet
Allows the unit to be used freestanding
100% CFC free
Environmentally friendly design with no ozone-damaging chemicals
CARB Compliant
Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
