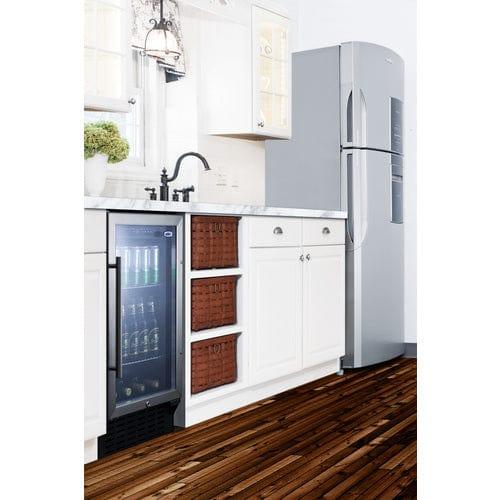

Front-breathing design allows built-in installation under the counter in 18" wide spaces
SUMMIT's selection of built-in undercounter beverage coolers combines user-friendly convenience with elegant style for an ideal fit in any setting.

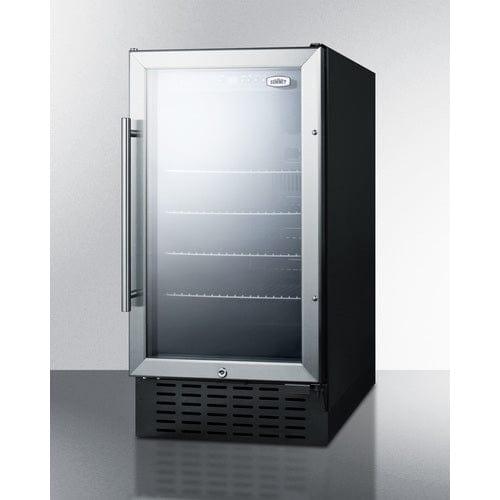

The SCR1841B is an 18" wide all-refrigerator designed for use in residential settings. The front-breathing system allows built-in installation under counters, while the fully finished black cabinet also allows freestanding use. This unit includes a user-reversible stainless steel trimmed door triple pane glass door, with a factory installed lock and professional style handle.

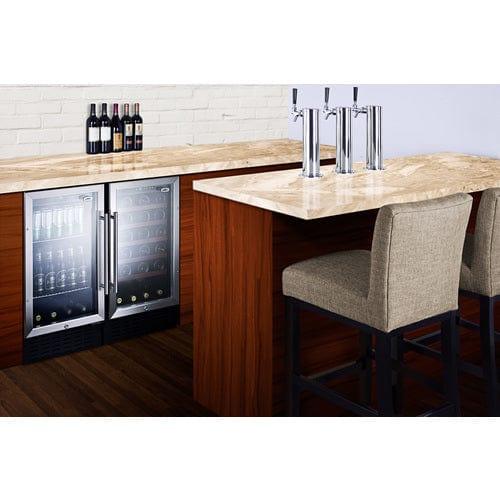

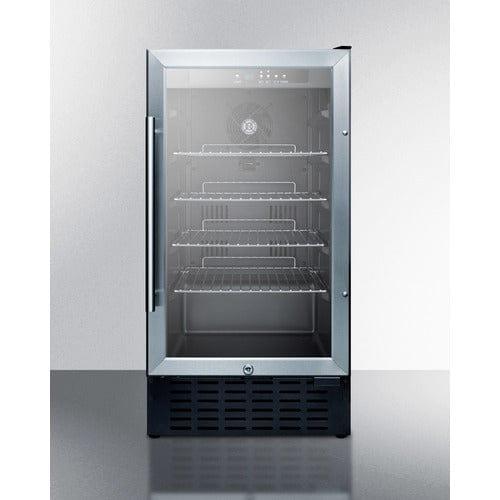

Items can be stored on four adjustable chromes shelves in the auto defrost interior, with attractive LED lighting providing an elegant display. The digital thermostat offers intuitive temperature management. The SCR1841B is also available in a 32" height for use in ADA compliant settings (see the SCR1841BADA) and can be paired with our matching wine cellar, model SWC1840B.
In addition to this unit, Summit offers a full collection of 18" wide undercounter choices, including single and dual zone wine cellars, refrigerators, and frost-freezers. Browse our website for more.
|
Overview
|
| Height of Cabinet |
34.25" (87 cm) |
| Width |
17.75" (45 cm) |
| Depth |
23.5" (60 cm) |
| Depth with Handle |
25.25" (64 cm) |
| Depth with door at 90° |
39.75" (101 cm) |
| Capacity |
2.7 cu.ft. (76 L) |
| Defrost Type |
Automatic |
| Door |
Glass |
| Cabinet |
Black |
| US Electrical Safety |
ETL |
| Canadian Electrical Safety |
ETL-C |
| Sanitation |
ETL-S |
| Energy Usage/Year |
284.0kWh/year |
| Amps |
1.25 |
| Voltage/Frequency |
115 V AC/60 Hz |
| Weight |
95.0 lbs. (43 kg) |
| Shipping Weight |
117.0 lbs. (53 kg) |
| Parts & Labor Warranty |
1 Year |
| Compressor Warranty |
5 Years |
| UPC |
761101049755 |
|
Refrigerator Features
|
| Door Swing |
RHD |
| Reversible |
Yes |
| Shelf Type |
Chrome |
| Shelf Qty |
4 |
| Adjustable Shelves |
Yes |
| Thermostat Type |
Digital |
| Fan Type |
Interior and Exterior |
| Refrigerant Type |
R600a |
| Refrigerant Amount |
1.06oz. |
| High Side PSI |
150.0 |
| Low Side PSI |
50.0 |
| Level Legs Qty |
2 |
| Interior Light |
Yes |
| Temperature Range |
34º to 64ºF |
| Sound Level |
34.2 dB |
|
Dimensions
|
| Interior Height |
21.5" (55 cm) |
| Interior Width |
12.75" (32 cm) |
| Interior Depth |
16.75" (43 cm) |
| Compressor Step Height |
4.75" (12 cm) |
| Compressor Step Width |
12.75" (32 cm) |
| Compressor Step Depth |
4.5" (11 cm) |
| Exterior |
| SSK - Stainless steel kickplate |
LHD - Left hand door swing |
| Latch - Factory-installed door latch requires manual release to open unit |
|
| Door |
| T4 Door Tint |
T3 Door Tint |
| T2 Door Tint |
T1S Door Tint |
| T1 Door Tint |
|
Built-in capable
Make the best use of space by installing your appliance under the counter
Commercially approved
ETL-S listed to ANSI-NSF Standard 7 for use in commercial establishments
Fully finished black cabinet
Allows the unit to be used freestanding
Stainless steel trimmed triple pane tempered glass door
Provides a full display of stored contents with a heat-safe double tempered design
Factory installed lock
Keyed security on the door
Digital thermostat
Electronic controls for precise temperature management.
Digital display
Temperature readout can be shown in Celsius or Fahrenheit
LED lighting
Gentle illumination with an on/off switch
Automatic defrost
Reduced maintenance with the convenience of auto defrost
Adjustable chrome shelves
Rearrange interior space to accommodate all sizes or remove shelves for simple cleanup
Reversible door
User-reversible door swing for added flexibility
Professional handle
Stainless steel look for added elegance
Flush back
Space saving design
100% CFC Free
Environmentally friendly design with no ozone-damaging chemicals
CARB Compliant
Environmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
HTS CODE: 8418.50.0080
Upright coolers incorporating refrigerating equipment, each measuring not more than 77 cm/30.315" in width, not more than 78 cm/30.7" in depth and not more than 200 cm/78.75" in height, weighing not more than 127 kg/280 lb, with one swing-type transparent glass door
