Made in South Korea with stainless steel construction inside and out for lasting durability in busy commercial settings
Summit Commercial's line of reach-in refrigeration features durable construction built to NSF-7 commercial standards.

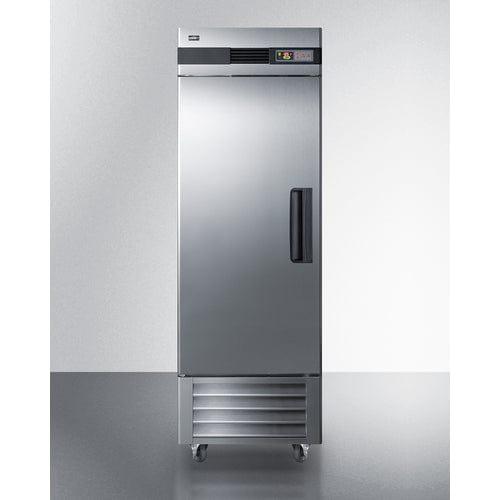

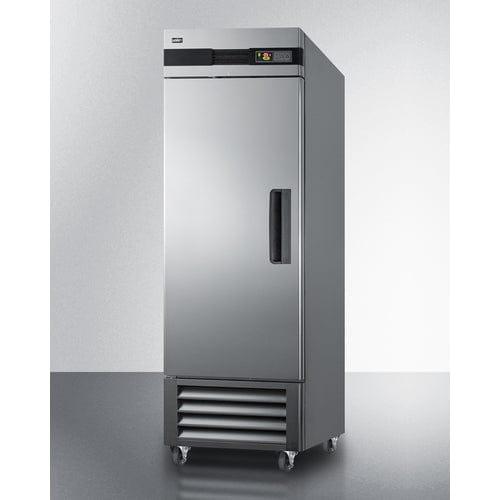

Made in South Korea, the SCFF237LH is a commercial all-freezer with a complete stainless steel cabinet. The stainless steel door features a self-closing design to help protect stored contents in busy commercial settings where customers may not take the time to make sure the door is closed. It will remain open when pushed to 90º, making it easier to load and unload the unit. The sealed back design helps to simplify cleanup. This unit features a factory-installed lock located towards the top of the door for convenient security. We include a set of locking casters for optional installation. The door has a left hand swing. For the same unit with the door opening from the other side, see the SCFF237.

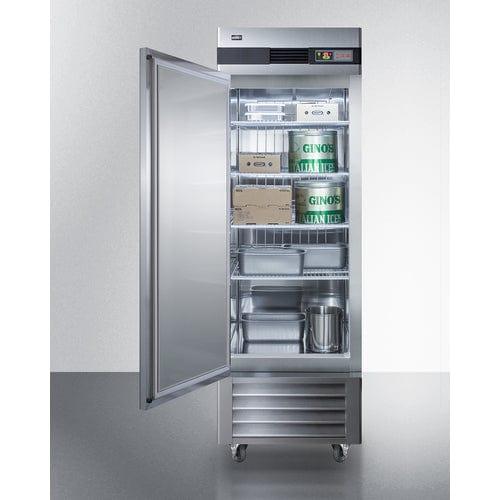

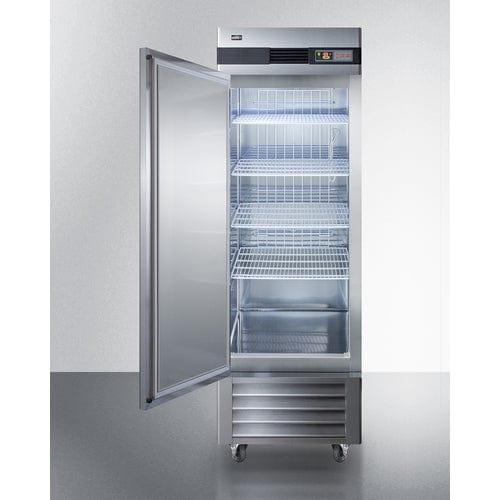

The SCFF237LH features a large 23 cu.ft. interior constructed from stainless steel for easy cleanup and lasting durability. The cantilevered shelving system allows you to adjust the four vinyl-coated shelves to virtually any position, making it easy to accommodate any sized item. This unit is designed to fit common commercial baking trays. The LED lighting offers an energy efficient display when the door is opened. This unit utilizes adjustable cycle defrost operation to avoid temperature spikes, with a top-mounted forced air cooling system to ensure rapid temperature recovery.
To ensure optimum storage conditions, the SCFF237LH is equipped with a microprocessor temperature controller that makes it easy for staff to adjust the temperature. The large digital LED readout displays the current and high/low temperatures in Celsius or Fahrenheit. An audible and visual temperature alarm sounds if the unit rises or falls above a user-set range. Additional alarms include a power failure alert, door open alarm, and a condenser cleaning reminder.
Designed with hydrocarbon refrigerant, the SCFF237LH provides an energy efficient solution to large capacity storage. It is ETL-S listed to NSF-7 commercial standards. For a matching refrigerator, see the SCRR232.
|
Overview
|
| Height of Cabinet |
83.75" (213 cm) |
| Width |
27.5" (70 cm) |
| Depth |
31.0" (79 cm) |
| Depth with door at 90° |
56.5" (144 cm) |
| Capacity |
23.0 cu.ft. (651 L) |
| Defrost Type |
Frost-Free |
| Door |
Stainless Steel |
| Cabinet |
Stainless Steel |
| US Electrical Safety |
UL |
| Canadian Electrical Safety |
ULC |
| Sanitation |
ETL-S |
| Amps |
8.0 |
| Voltage/Frequency |
115 V AC/60 Hz |
| Weight |
273.0 lbs. (124 kg) |
| Shipping Weight |
293.0 lbs. (133 kg) |
| Parts & Labor Warranty |
2 Years |
| Compressor Warranty |
5 Years |
| UPC |
761101066769 |
|
Freezer
|
| Door Swing |
LHD |
| Reversible |
No |
| Interior Height |
51.5" (131 cm) |
| Interior Width |
23.5" (60 cm) |
| Interior Depth |
27.0" (69 cm) |
| Shelf Type |
Wire |
| Shelf Qty |
4 |
| Adjustable Shelves |
Yes |
| Thermostat Type |
Digital |
| Interior Light |
Yes |
| Fan Type |
Interior |
| Refrigerant Type |
R290a |
| Refrigerant Amount |
3.5 oz. |
| Wheels |
4 |
| Temperature Range |
-10 to 25ºF |
| Sound Level |
39 dB |
| Exterior |
| PHRI - Probe Hole |
DL2B - Factory installed NIST calibrated digital data logger (DDL) |
|
Commercially approved
Commercial construction meeting UL commercial listing standards
Complete stainless steel construction
Interior and exterior are entirely constructed from stainless steel for lasting durability and easy cleanup

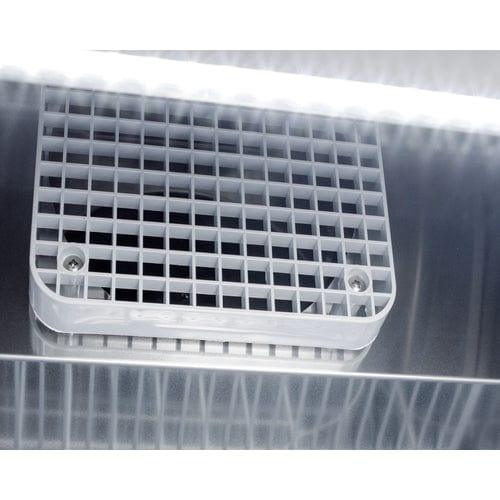

Forced air cooling
Top-mounted commercial fan ensures rapid temperature recovery
Automatic defrost with adjustable cycle defrost
Adjustable cycle defrost operation ensures the unit avoid temperature spikes and ice buildup
Self-closing door
Closes to save energy but will remain open when the door is opened at a 90º angle for easier loading
Open door alarm
Alarm will beep 3 times if the door is left open for 30 seconds, 5 times at 60 seconds, and will sound continuously if the door is open for more than 5 minutes
Temperature alarm
Visual and audible alarms alert if the interior temperature rises or falls out of set range
Commercial grade casters
Ships with a set of casters (2 locking) for easy mobility as needed

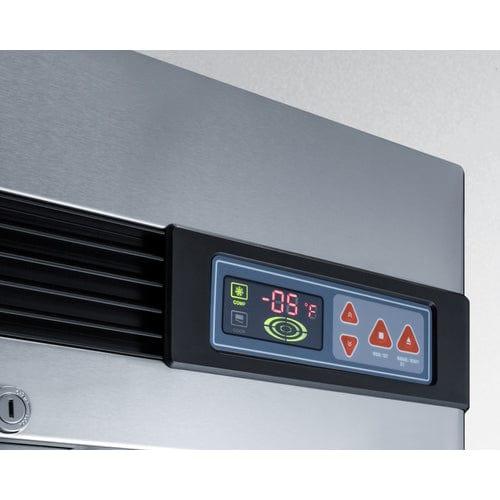

Microprocessor control panel
Digital controls with a large LED readout in Celsius or Fahrenheit for intuitive temperature management
Min/max display
Control panel provides a readout of the low and high temperatures in 15 minute increments
Factory-installed lock
Keyed lock conveniently located towards the top of the door for added security (2 keys included)

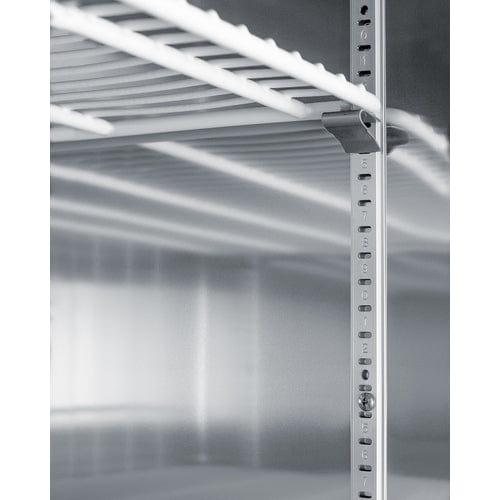

Adjustable plastic-coated wire shelves for improved circulation
Multiple shelf positions spaced at 1/2" to allow flexible adjusting to support smaller items
Interior light
Energy efficient LED lighting with internal on/off switch
Large capacity
23 cubic feet of storage space inside
Condenser cleaning alarm
In order to prevent dust from impeding performance, this unit is equipped with audible and visual alarm that reminds you to clean the condenser every 6 months
Magnetic door gasket
Quality door gaskets ensure a tight seal for energy savings and improved performance
Sealed back
Space-saving design that ensures easier cleanup
Extended warranty
2 years parts and labor/5 years compressor
Left hand door swing
For the same unit with the door opening from the other side, see the SCFF237
Matching refrigerator
Pair with SCRR232 for a matching set in stainless steel
Eco-Friendly
Using environmentally friendly hydrocarbons refrigerants for a greener footprint
100% CFC free
Environmentally friendly design without ozone-damaging chemicals
CARB Compliant
Environmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
