Touch controls & an extra large 8" burner to accommodate large cookware

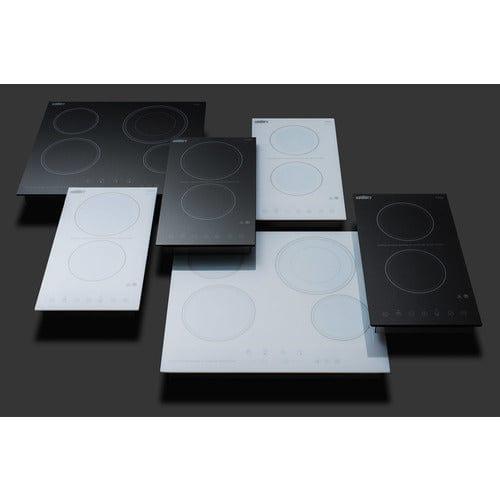

SUMMIT's collection of smooth-top radiant cooktops offers an easy-to-clean design with modern style built for smaller kitchen spaces.

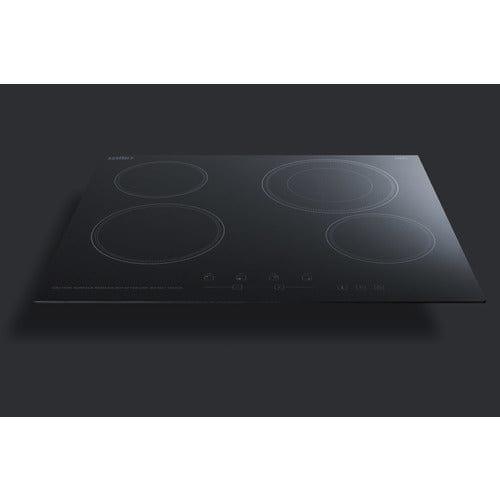

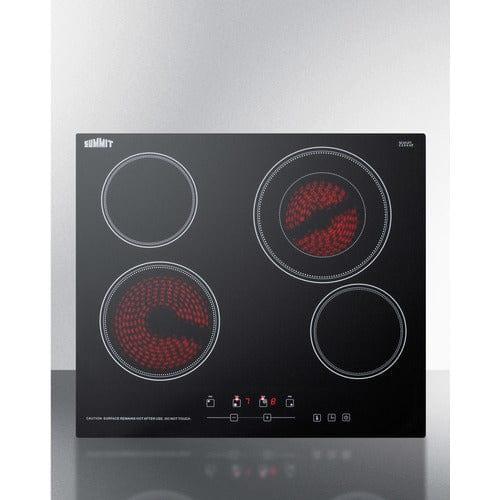

The CR4B23T5B is a 24" wide 230V radiant cooktop designed to fit popular 22" W x 19 1/2" D counter cutouts. The surface is made from smooth Schott ceramic glass in a jet black finish for a durable, modern look. This unit does not ship with a power cord and must be hard-wired by a professional.
Unlike many other 24" wide cooktops, the CR4B23T5B includes an extra large 2200W 8" element to accommodate large cooking vessels and offer faster heating when boiling water. For added versatility, this dual zone element can also be used at a 5" diameter for smaller pots and pans. The front right and rear left 5 1/2" elements cook at 1200W, while the front left zone is 7" wide with an 1800W operation to handle larger meals.
The digital touch controls are located in the front for easier accessibility, preventing users from reaching over hot burners when cooking. The temperature is easy to adjust at the touch of a button, with 9 power levels for each burner. This unit also includes a timer function that lets you program a power level and cook time (up to 99 minutes). The burner turns off automatically when the cooking duration has finished. Safety features include a child lock function, automatic shutoff after two hours, and residual heat indicators for all four elements.
With its attractive design, smartly designed burner configuration, and intuitive touch controls, the CR4B23T5B brings a user-friendly cooking performance with reliable safety to small kitchen spaces.
|
Overview
|
| Height of Cabinet |
2.0" (5 cm) |
| Width |
23.25" (59 cm) |
| Depth |
20.5" (52 cm) |
| Cabinet |
Black |
| US Electrical Safety |
ETL |
| Canadian Electrical Safety |
ETL-C |
| Amps |
30.0 |
| Voltage/Frequency |
230 V AC/60 Hz |
| Weight |
20.0 lbs. (9 kg) |
| Shipping Weight |
25.0 lbs. (11 kg) |
| Parts & Labor Warranty |
1 Year |
| UPC |
761101053257 |
|
Electric Cooktop
|
| Heating Type |
Radiant |
| Surface |
Glass |
| Element Type |
Glasstop |
| Number of Elements |
4 |
| Controls |
Digital |
| Countertop Cutout Height |
3.2" (8 cm) |
| Countertop Cutout Width |
22.0" (56 cm) |
| Countertop Cutout Depth |
19.5" (50 cm) |
| Element #1 Size |
5.5" (14 cm) |
| Element #1 Wattage |
1200.0 |
| Element #2 Size |
8.1" (21 cm) |
| Element #2 Wattage |
2200.0 |
| Element #3 Size |
5.5" (14 cm) |
| Element #3 Wattage |
1200.0 |
| Element #4 Size |
7.0" (18 cm) |
| Element #4 Wattage |
1800.0 |
| Power Cord Included |
No |
Schott glass surface
Easy cleanup and elegant style on a smooth ceramic glass surface in a jet black finish
Extra large 2200W burner
Burner located on the rear right corner has an 8" diameter and powerful 2200W cooking power to handle large pots and help boil water with more speed
Large 1800W burner
Burner located on the front left corner is 7" in diameter to handle larger cooking vessels
2 Standard 1200W burners
Front right and rear left burners are 5.5" in diameter to meet most cooking needs
Dual cooking zone
Rear right burner includes an inner 5" burner, allowing you to save energy when heating smaller cookware

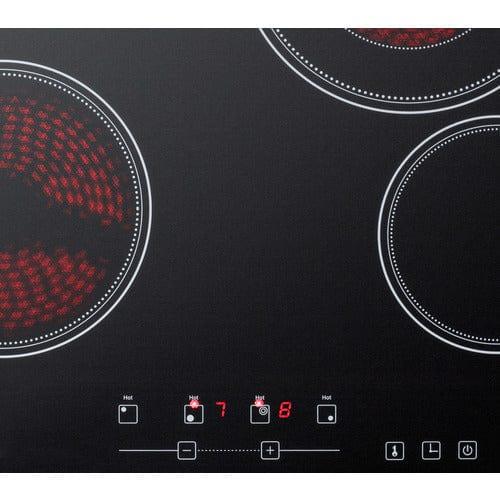

Digital touch controls
Easy operation with a digital control panel and digital display
9 power levels
Select and adjust your heating levels at the touch of a button
Timer
Allows you to program either burner to heat at a specified level for up to 99 minutes
Residual heat indicator lights
Each burner includes a residual heat indicator to warn users if the surface is still too hot to touch
Designed for built-in installation
Fits counter cutout sizes that are 22" wide by 19.5" deep
ADA compliant design
Upfront controls meet ADA guidelines for easier accessibilty
Child lock
Safety feature lets you lock the cooktop to prevent unsupervised heating
Safety cut-off function
If the cooktop on/off switch is touched but no power level is selected within one minute, the cooktop automatically turns off
Automatic shutoff
If a cooking zone is in use for over two hours with no changes to the control setting, the burner will automatically turn off to prevent unsupervised heating
230V operation
Requires professional hardwired installation to 230V power supply
