Stainless steel interior for added durability and easier cleanup in commercial applications
Summit's commercially approved beverage merchandisers are designed for durable service, convenient use, and attractive presentation.

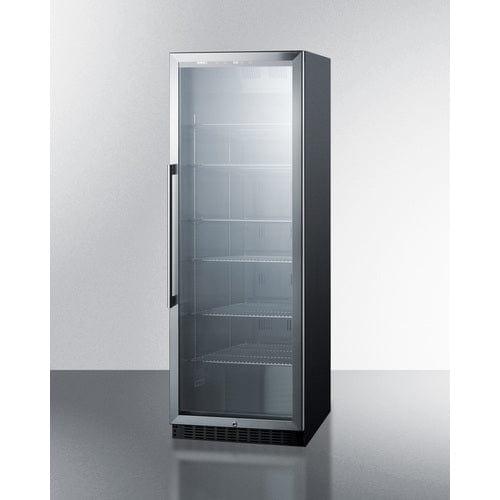

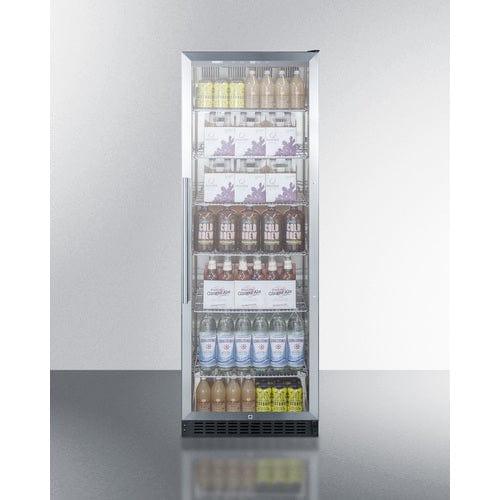

The SCR1401 is an upright beverage center conveniently sized with a slim 24 inch footprint. The stainless steel trimmed glass door provides a full view of storage down to the floor, with recessed LED lighting to ensure an attractive and efficient presentation. The door comes in a right hand door swing and features a self-closing design to help protect stored items in commercial settings where customers may not take the time to ensure a tight seal. A factory installed lock offers additional security. This unit has a front-breathing cooling system that allows built-in installation, and a fully finished exterior that also enables freestanding use.
Inside, the SCR1401 utilizes frost-free operation for minimum user maintenance. The interior walls are made from stainless steel for improved durability and sanitation. The cantilevered shelving system allows you to easily adjust your storage to accommodate virtually any size. The digital control panel is conveniently located towards the top, allowing staff to adjust the temperature without bending to the floor. The readout can be viewed in Celsius or Fahrenheit. Additional features include an audible high temperature alarm, open door alarm, temperature memory function, and sabbath mode setting.
The SCR1401 is ETL-S listed to NSF-7 standards for use in commercial settings. Similar choices are available in lower heights for more space-challenged areas. Browse Summit's commercial product line for more.
|
Overview
|
| Height of Cabinet |
69.75" (177 cm) |
| Width |
23.63" (60 cm) |
| Depth |
23.75" (60 cm) |
| Depth with Handle |
25.63" (65 cm) |
| Depth with door at 90° |
46.75" (119 cm) |
| Capacity |
12.6 cu.ft. (357 L) |
| Defrost Type |
Frost-Free |
| Door |
Glass |
| Cabinet |
Black |
| US Electrical Safety |
ETL |
| Canadian Electrical Safety |
ETL-C |
| Sanitation |
ETL-S |
| Amps |
1.7 |
| Voltage/Frequency |
115 V AC/60 Hz |
| Weight |
180.0 lbs. (82 kg) |
| Shipping Weight |
200.0 lbs. (91 kg) |
| Parts & Labor Warranty |
1 Year |
| Compressor Warranty |
5 Years |
| UPC |
761101059891 |
|
Refrigerator Features
|
| Sabbath Mode |
Yes |
| Door Swing |
RHD |
| Reversible |
No |
| Shelf Type |
Chrome |
| Shelf Qty |
6 |
| Adjustable Shelves |
Yes |
| Thermostat Type |
Digital |
| Fan Type |
Interior |
| Refrigerant Type |
R600a |
| Refrigerant Amount |
1.76oz. |
| High Side PSI |
270.0 |
| Low Side PSI |
105.0 |
| Level Legs Qty |
4 |
| Interior Light |
Yes |
| Temperature Range |
36 to 68ºF |
| Sound Level |
35.7 dB |
|
Dimensions
|
| Interior Height |
59.75" (152 cm) |
| Interior Width |
20.0" (51 cm) |
| Interior Depth |
16.5" (42 cm) |
| Compressor Step Height |
4.5" (11 cm) |
| Compressor Step Width |
4.5" (11 cm) |
| Compressor Step Depth |
4.5" (11 cm) |
| Door |
| T3F Door Tint |
T1SF Door Tint |
| T4F Door Tint |
T2F Door Tint |
|
| Interior |
| LockBoxW - Interior locking compartment with window |
|
Commercially approved
Design meets UL-471 commercial standards and is ETL-S listed to NSF-7 standards for commercial use
Slim fit
Just 24" wide and deep for an easy fit in any setting
Frost-free operation
No-frost convenience requires no manual defrosting
Stainless steel interior
Walls are constructed from stainless steel for added strength and easy cleanup
Double pane tempered glass door
Heat-safe glass door with stainless steel trim offers full display all the way down to the floor
Self-closing door
Door will automatically close when left ajar, preventing items from accidentally being left exposed to ambient temperatures
Digital thermostat
Electronic controls for precise temperature management, with a readout viewable in Celsius or Fahrenheit
Cantilevered shelving
Adjustable shelving accommodates virtually any size with convenient cantilevered system
Recessed LED lighting
On/off button to illuminate stored products with an attractive and energy efficient glow
Factory installed lock
Keyed lock for a secure interior (2 keys included)
Fan-forced cooling
Internal fan ensures the interior is evenly cooled from top to bottom
High temperature alarm
Alarm sounds if the interior temperature rises out of suggested range
Professional handle
Attractive design in stainless steel to complete the look
Sabbath mode setting
Optional setting lets you disable the lighting and alarm for up to 48 hours
Right angle plug
Design allows you to plug the unit in flush against the wall socket with no need to add extra depth
Temperature Memory Function
Unit will retain its last settings when power is restored in the event of power loss
Fully finished black cabinet
Allows the unit to be used freestanding
Built-in or freestanding
Flexible design with a front-breathing cooling system to allow built-in installation and a fully finished exterior that also enables safe freestanding use
100% CFC Free
Environmentally friendly design with no ozone-damaging chemicals
CARB Compliant
Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
