Summit ALFZ51IF | 24" Wide Built-In All-Freezer | ADA

ALFZ51IF

This Summit 24" Wide Built-In All-Freezer is an ADA compliant appliance that offers a spacious 24-inch width for all your freezing needs. With its built-in design, it seamlessly integrates into your cabinetry, providing a sleek and organized look. Keep your frozen items at their optimal temperature with this high-quality all-freezer.

Designed to fit under lower ADA compliant counters

Summit manufactures the industry's largest selection of built-in appliances sized for use under lower ADA compliant counters, including frost-free freezers specially designed to match our popular ADA compliant refrigerators.

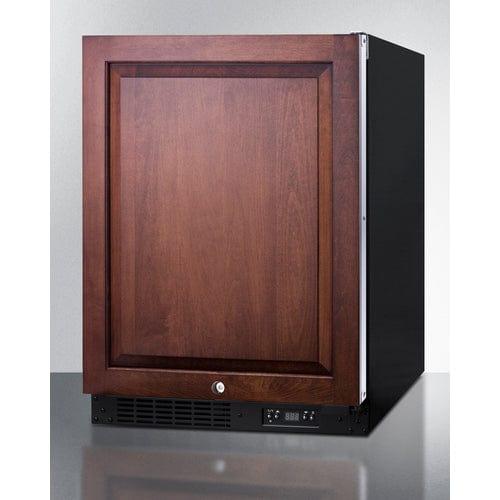

The ALFZ51IF is a 24 inch wide all-freezer designed and approved for residential or commercial use. The front-breathing design allows built-in installation, while the fully finished black cabinet also enables freestanding use. Sized just under 32 inches high and 24 inches wide, this unit makes an ideal fit under lower ADA compliant counters. The door features an integrated stainless steel frame designed to accept full panel overlays, allowing users to seamlessly blend the unit into their own cabinetry design (panel size: 27 3/4" H x 23 3/16" W; 3/4" thick with a maximum weight of 10 lbs.). The door is factory reversible, and users must supply their own door handle. A temperature alarm offers added security should the temperature go beyond the setpoint, and the optional Sabbath Mode can be used to disable certain electrical features during periods of religious observance for up to 96 hours. The frost-free cooling system keeps the unit running efficiently with little user maintenance, and the internal fan ensures the unit is evenly cooled.

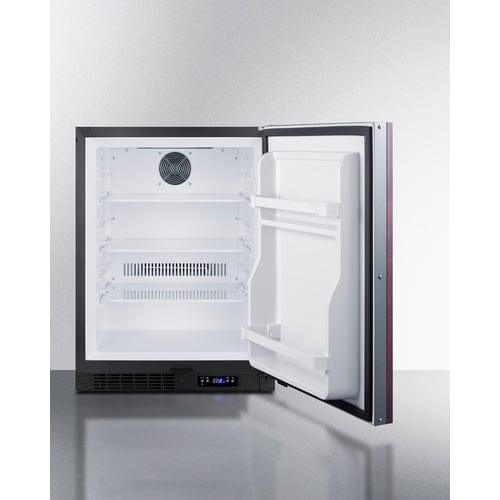

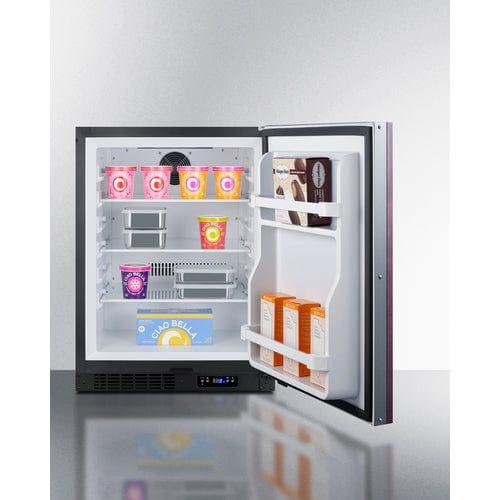

Digital controls ensure easy temperature management. Inside, three easy-glide glass shelves that extend 50% provide flexible storage, and the shelving brake system keeps unit contents safe when loading and unloading. Two door racks are ideal for keeping commonly accessed items in easy reach.

With its advanced user features and versatile design, the ALFZ51IF is an excellent addition to any ADA compliant setting looking for a frost-free freezer with a modern, elegant look. To create a matching set, pair with the AL55IF refrigerator.

SPECIFICATIONS

Overview
Height of Cabinet 31.63" (80 cm)
Width 23.38" (59 cm)
Depth 23.38" (59 cm)
Depth with door at 90° 45.75" (116 cm)
Capacity 4.0 cu.ft. (113 L)
Defrost Type Automatic
Door Panel-Ready
Cabinet Black
US Electrical Safety ETL
Canadian Electrical Safety ETL-C
Sanitation ETL-S
Energy Usage/Year 380.0kWh/year
Amps 1.3
Voltage/Frequency 115 V AC/60 Hz
Weight 95.0 lbs. (43 kg)
Shipping Weight 132.5 lbs. (60 kg)
Parts & Labor Warranty 1 Year
Compressor Warranty 5 Years
UPC 761101089010
Freezer
Door Swing RHD
Reversible Factory Reversible
Interior Height 23.75" (60 cm)
Interior Width 18.5" (47 cm)
Interior Depth 16.75" (43 cm)
Shelf Type Glass
Shelf Qty 3
Adjustable Shelves Yes
Thermostat Type Digital
Fan Type Interior and Exterior
Refrigerant Type R600a
Refrigerant Amount 1.06 oz.
High Side PSI 150.0
Low Side PSI 50.0
Level Legs 4
Compressor Step Height 5.0" (13 cm)
Compressor Step Width 18.5" (47 cm)
Compressor Step Depth 5.0" (13 cm)
Temperature Range -11°F to 11°F
Sabbath Mode Yes
Sound Level 40.1 dB

AVAILABLE UPGRADES

Handle
CP Full-Length Copper Pipe Handle TBC Copper Towel Bar Handle
Exterior
LHD - Left hand door swing Latch - Factory-installed door latch requires manual release to open unit



FEATURES

ADA compliant

32” height allows for installation within ADA compliant spaces

Commercially approved

ETL-S listed to NSF-7 commercial standards

Built-in capable

Front-breathing design allows the unit to be built-in under counters

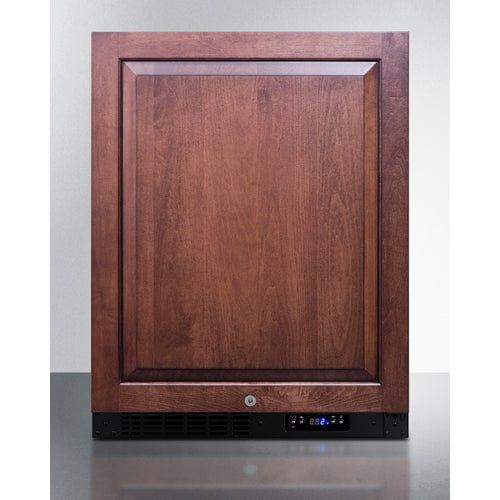

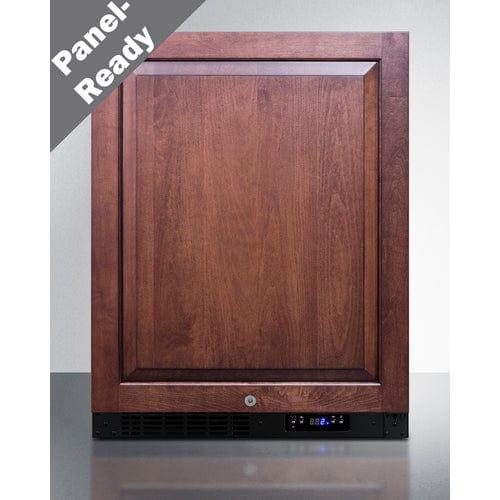

Panel-ready door

Integrated stainless steel door frame accepts full overlay panels, allowing you to customize the door or blend it into your cabinetry design; panel size: 23 3/16" W x 27 3/4" H and at least 3/4" thick; 10 lbs. maximum; customers provide their own handles

Digital control panel

Makes for easy temperature reading/management with electronic controls inside

Factory installed lock

Keyed lock for secure interior, with two keys included

White interior

Classic interior allows for easy cleaning and viewing of products

Adjustable shelving

Three easy-glide shelves that extend 50% give space and flexibility when organizing the interior’s contents

Brake shelving system

Provides added safety when loading and unloading the unit's 3 shelves

Automatic defrost

Reduced maintenance with auto defrost system

Internal fan

Fan-forced cooling ensures the unit is evenly cooled from top to bottom

Temperature alarm

Alarm sounds if temperature goes out of recommended range after 2 hours

Sabbath mode

Optional feature disables alarms, interior light, and displays for up to 96 hours

Reversible door

User-reversible door swing makes it easy to best accommodate your setting

Integrated hinge

Flat stainless steel hinge ensures no added height is needed when installing under a counter

Fully finished black cabinet

Allows unit to be used freestanding

Matching refrigerator

Pair with Summit AL55IF to create a matching ADA height set

100% CFC free

Environmentally friendly design with no ozone-damaging chemicals

CARB Compliant

Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
