The Summit 24" Wide Built-In All-Refrigerator is a versatile and convenient addition to any kitchen. With its wide design, it can easily store all your refrigerated goods in one place. And with its built-in feature, it seamlessly blends in with your existing cabinetry. Enjoy an organized and aesthetically pleasing kitchen with the Summit All-Refrigerator.
Designed to fit under lower ADA compliant counters
SUMMIT's AL54 series features built-in undercounter all-refrigerators designed for installation under lower ADA compliant counters, with advanced features for user convenience.

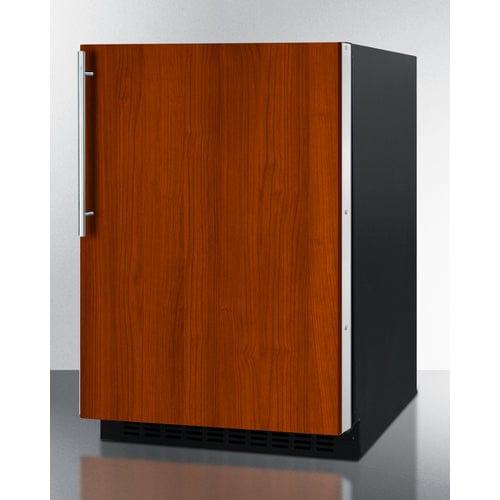

Sized with a convenient 24" footprint, the AL54IF is just 32" high to fit under lower counters complying with ADA guidelines for accessibility. The fully finished black cabinet allows freestanding use, while the front-breathing system also allows this unit to be built-in with minimum clearance. The reversible door features a European-style fully articulating hinge for smooth opening. This also allows the door to accept full panel overlays, allowing users to seamlessly blend the unit into their own cabinetry design (panel size: 28.38" H x 23.4" W; maximum weight: 10 lbs.). This unit has a flush back for easy cleaning and a right angle plug for a better fit.

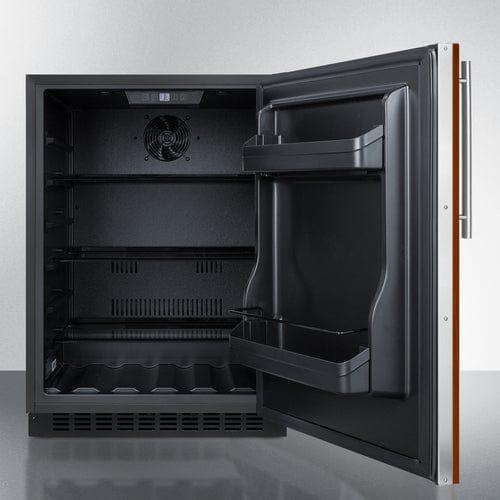

Inside, the AL54IF utilizes frost-free operation with fan-forced cooling to ensure low maintenance and even temperature distribution. Recessed LED lighting offers an attractive yet efficient look. The digital thermostat makes it easy to manage the interior temperature. This unit includes adjustable glass shelves for flexible, spill-proof storage and two large door racks ideal for keeping condiments in easy reach. The floor is specially slotted to hold bottles in place. Additional features include an open door alarm, high temperature alarm, and Sabbath mode setting that lets you disable some of the electrical elements during periods of observance.
The AL54IF refrigerator is ETL-S listed to NSF-7 commercial standards but can also be used in the home. With its deluxe style and user-friendly features, this unit is the perfect choice for home or commercial kitchens. Additional styles are available, as well a matching frost-free freezer (model ALFZ53IF). Browse the full Summit line to explore your endless options.
|
Overview
|
| Height of Cabinet |
32.0" (81 cm) |
| Width |
23.38" (59 cm) |
| Depth |
22.63" (57 cm) |
| Depth with door at 90° |
46.0" (117 cm) |
| Capacity |
4.4 cu.ft. (125 L) |
| Defrost Type |
Frost-Free |
| Door |
Panel-Ready |
| Cabinet |
Black |
| US Electrical Safety |
ETL |
| Canadian Electrical Safety |
ETL-C |
| Sanitation |
ETL-S |
| Energy Usage/Year |
270.0kWh/year |
| Amps |
1.0 |
| Voltage/Frequency |
115 V AC/60 Hz |
| Weight |
100.0 lbs. (45 kg) |
| Shipping Weight |
130.0 lbs. (59 kg) |
| Parts & Labor Warranty |
1 Year |
| Compressor Warranty |
5 Years |
| UPC |
761101053998 |
|
Refrigerator Features
|
| Sabbath Mode |
Yes |
| Door Swing |
RHD |
| Reversible |
Yes |
| Shelf Type |
Glass |
| Shelf Qty |
3 |
| Full Door Shelf Qty |
2 |
| Adjustable Shelves |
Yes |
| Thermostat Type |
Digital |
| Fan Type |
Interior and Exterior |
| Refrigerant Type |
R600a |
| Refrigerant Amount |
0.99oz. |
| High Side PSI |
270.0 |
| Low Side PSI |
105.0 |
| Level Legs Qty |
4 |
| Interior Light |
Yes |
| Temperature Range |
36 to 43ºF |
| Sound Level |
33.3dB |
|
Dimensions
|
| Interior Height |
24.38" (62 cm) |
| Interior Width |
20.0" (51 cm) |
| Interior Depth |
16.63" (42 cm) |
| Compressor Step Height |
3.25" (8 cm) |
| Compressor Step Width |
20.0" (51 cm) |
| Compressor Step Depth |
5.25" (13 cm) |
| Exterior |
| LHD - Left hand door swing |
SSK - Stainless steel kickplate |
|
| Door |
| CDG-Emerald green door |
CDY-Saffron gold door wrap |
| CDB-Cobalt blue door wrap |
CDP-Lavender purple door wrap |
|
ADA compliant design
32" height allows easy installation under lower ADA compliant counters
Built-in capable
Front-breathing design lets you make the best use of space by installing your appliance under the counter
Panel-ready door
European style articulating door hinge allows the installation of overlay panels, allowing you to customize the refrigerator door or blend it into your cabinetry design; (panel size: 23.4" W x 28.38" H at 3/4" thick and 10 lbs. maximum)
Frost-free operation
No-frost operation for minimum user maintenance
Digital thermostat
Electronic controls located inside the unit for precise temperature management
Recessed LED light
Efficient and attractive presentation with LED lighting
Adjustable glass shelves
Rearrange refrigerator space to accommodate all sizes or remove shelves for simple cleanup
Door storage
Two door racks offer convenient storage for condiments and bottles
Bottle slots
Floor is specially slotted to store wine and other bottles safely in place
Internal fan
Fan-forced cooling ensures the unit is evenly cooled from top to bottom
Open door alarm
Audible alarm will sound if the door is left open longer than one minute
High temperature alarm
High temperature alarm sounds if the unit's interior goes out of the recommended range
Sabbath mode setting
Optional setting lets you disable the lighting and alarm for up to 48 hours
Temperature Memory Function
Unit will retain its last settings when power is restored in the event of power loss
Sealed back
Space-saving design that offers easier cleanability
Right angle plug
Design allows you to plug the unit in flush against the wall socket with no need to add extra depth
Matching freezer
Pair with the ALFZ53IF frost-free freezer to create a complete refrigerator/freezer set under the counter
Commercially approved
ETL-S listed to NSF-7 Standards for use in commercial establishments
Fully finished black cabinet
Allows the unit to be used freestanding
100% CFC Free
Environmentally friendly design with no ozone-damaging chemicals
CARB Compliant
Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
