32 inch height allows installation under lower counters following ADA guidelines
Summit Commercial brings unique appliance choices to ADA compliant settings with a new line of commercial coffee dispensers made in Europe.

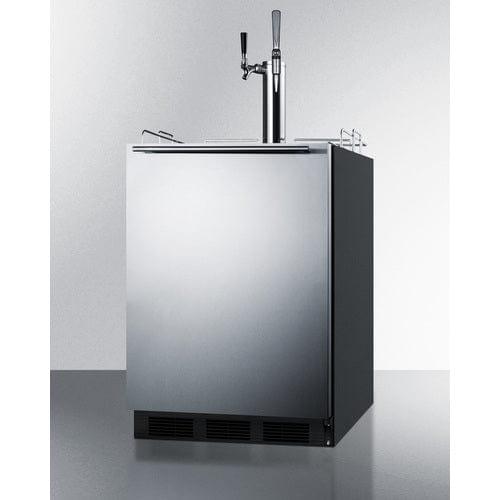

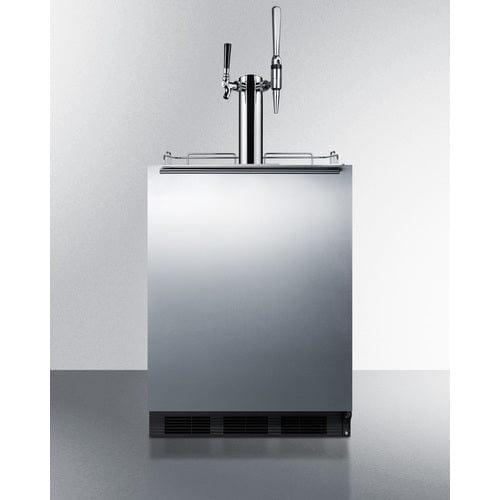

The SBC58BLBIADACMTWIN is a dual tap coffee kegerator designed to serve both nitro and regular cold brew coffee on tap. Sized at 32 inches high, it is designed to fit under lower ADA compliant counters. The front-breathing design allows built-in installation, while the fully finished black cabinet also enables freestanding use. This unit features a user-reversible 304 grade stainless steel wrapped door complete with a stainless steel handle mounted horizontally for a modern look. We include a guard rail (ships uninstalled) and removable two-piece stainless steel drip tray for cleaner service. This unit ships with an NSF-listed stainless steel tap kit that includes everything you need to serve nitro cold brew coffee, including a standard dual tap draft tower, regulator, and nitrogen tank.

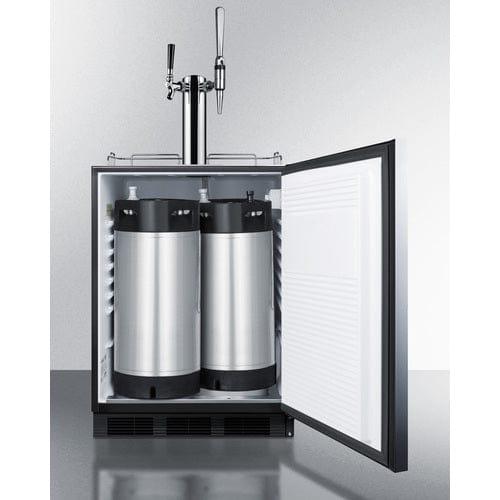

Inside, the SBC58BLBIADACMTWIN is designed to hold two 1/6 (sixtel) kegs (note: interior does not accommodate a standard half barrel). Automatic defrost ensures easy user maintenance, with a seamless interior for easier cleaning. The stainless steel floor offers added durability when loading kegs. This unit includes an interior light with an on/off rocker switch and a dial thermostat for easy and intuitive temperature management. The nitrogen tank bracket is located inside, allowing you to keep the tank inside and save on exterior depth.
The SBC58BLBIADACMTWIN is ETL-S listed to NSF-7 commercial standards. Additional ADA compliant kegerator choices are available with panel-ready or glass doors. Browse our complete line for more choices.
|
Overview
|
| Height of Cabinet |
32.0" (81 cm) |
| Height to Hinge Cap |
32.25" (82 cm) |
| Width |
23.63" (60 cm) |
| Depth |
22.75" (58 cm) |
| Depth with Handle |
24.25" (62 cm) |
| Depth with door at 90° |
45.0" (114 cm) |
| Capacity |
5.5 cu.ft. (156 L) |
| Defrost Type |
Automatic |
| Door |
Stainless Steel |
| Cabinet |
Black |
| US Electrical Safety |
ETL |
| Canadian Electrical Safety |
ETL-C |
| Sanitation |
ETL-S |
| Amps |
1.2 |
| Voltage/Frequency |
115 V AC/60 Hz |
| Weight |
110.0 lbs. (50 kg) |
| Shipping Weight |
125.0 lbs. (57 kg) |
| Parts & Labor Warranty |
1 Year |
| Compressor Warranty |
5 Years |
| UPC |
761101069630 |
|
Kegerator
|
| Door Swing |
RHD |
| Reversible |
Yes |
| Tap Kit |
Yes |
| Number of Taps |
2 |
| Thermostat Type |
Dial |
| Interior Light |
Yes |
| Fan Type |
Exterior |
| Refrigerant |
R600a |
| Refrigerant Amount |
0.64 oz. |
| High Side PSI |
180.0 |
| Low Side PSI |
80.0 |
| Inter Height |
25.75" (65 cm) |
| Interior Width |
21.0" (53 cm) |
| Interior Depth |
17.75" (45 cm) |
| Compressor Step Height |
6.5" (17 cm) |
| Compressor Step Width |
21.0" (53 cm) |
| Compressor Step Depth |
5.5" (14 cm) |
| Temperature Range |
34º to 43ºF |
| Lock |
|
|
| Exterior |
| SSK - Stainless steel kickplate |
DT - Digital thermostat |
| LHD - Left hand door swing |
|
| Door |
| CDG-Emerald green door |
CDY-Saffron gold door wrap |
| CDB-Cobalt blue door wrap |
CDP-Lavender purple door wrap |
|
Dispenses both flat and nitro coffee
Unique combination stout and standard tap system allows you to serve both flat iced cold brew and nitro drafts
ADA compliant height
Sized at 32 inches high (32.25 to hinge cap) for installation under lower ADA compliant counters
Built-in capable
Front-breathing design allows fully recessed installation under counters
Commercially approved
Commercial grade tap kit includes a dual tap draft tower with a standard and stout tap, Nitrogen tank, dual gauge regulator, and connections for ball lock Cornelius kegs
Complete tap kit
Commercial grade tap kit includes a stainless steel stout tower, Nitrogen tank, regulator, and connections for ball lock cornelius kegs

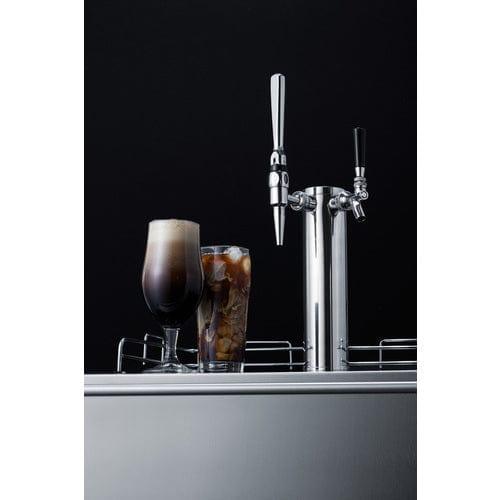

Dual tap system
Twin style draft tower allows you to serve from two cornelius style kegs
Stainless steel wrapped door
304 grade stainless steel for a professional look with lasting durability
Professional handle
Thin handle with common 14mm diameter in brushed stainless steel mounted horizontally
Adjustable thermostat
Interior dial thermostat ensures easy temperature management
Automatic defrost
No-frost operation for minimum user maintenance
Reversible door
User-reversible door swing allows you to easily adjust to better accommodate your setting
Stainless steel drip tray
Removable two-piece drip tray included for added convenience
Stainless steel guard rail
Durable railing makes it easier to neaten service
Interior light
Turn the light on when you need it and off when you're done with a convenient rocker switch

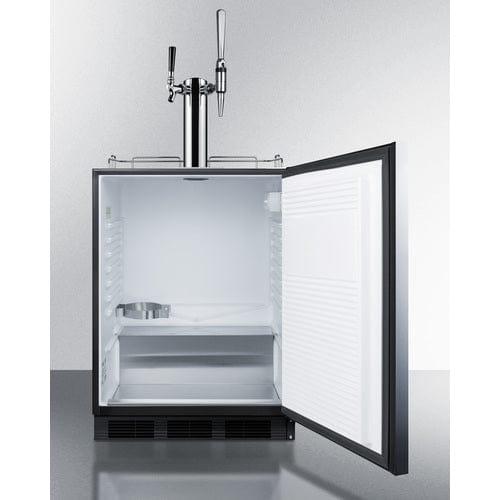

Interior nitrogen tank holder
Bracket is installed inside, allowing you to save on depth by keeping the tank behind your kegs
Stainless steel floor cover
Interior includes steel cover to protect the floor when loading kegs
One piece interior liner
Easy clean-up with a seamless liner that won't hold a mess in hidden crevices
Hidden evaporator
Cold wall design with hidden evaporator and seamless interior
Fully finished cabinet
Allows the unit to be used freestanding
100% CFC free
Environmentally friendly design without ozone-damaging chemicals
CARB Compliant
Environmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
