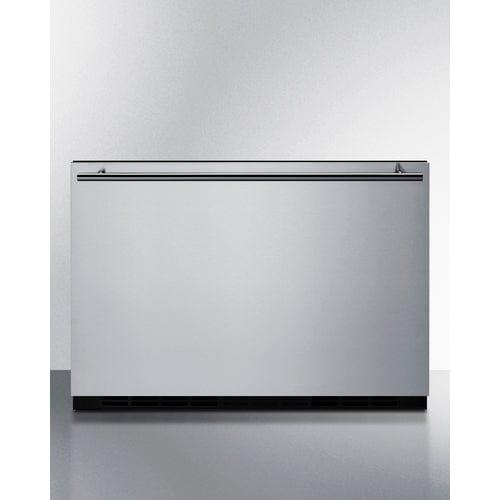

Versatile design with a fully finished drawer front in stainless steel that can also accept overlay panels for a custom look
Summit offers a quality line of commercially approved drawer refrigerators, including single drawer options for built-in installation.

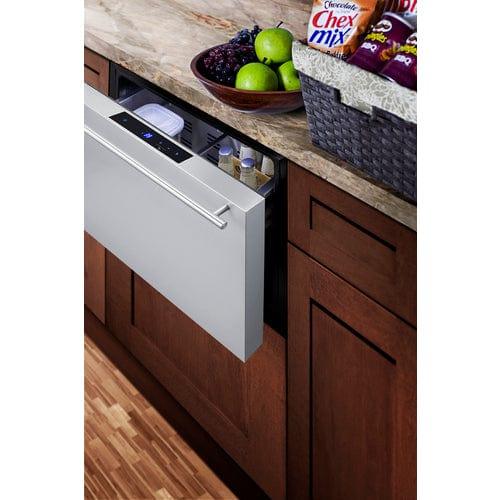

The SDR24 is a single drawer all-refrigerator that meets NSF-7 and UL-471 commercial standards and is also approved for residential settings. It's sized at just under 24" wide for an easy fit in standard cutouts, with a front-breathing design that allows built-in installation. The fully finished black cabinet also enables freestanding use. The drawer features 304 grade stainless steel construction inside and out, with a fully finished front that can also be customized with your own overlay panels (not included) to match existing cabinetry style (panel dimensions: 15.6" H x 23.4" W at 3/4" maximum thickness). This unit has a sealed rear with no exposed coils and a right angle plug for an easier fit.
Inside, the SDR24 has a 2 cu.ft. capacity to accommodate your storage needs. Frost-free operation with fan-forced cooling ensures even temperature distribution with minimal user maintenance. A digital thermostat, located atop the refrigerator drawer, makes it easy to manage the temperature, with an LED display that can be read in Celsius or Fahrenheit. Two removable dividers let you separate the drawer into one, two, or three zones to accommodate a variety of sizes. We also include a half-sized glass shelf. LED lighting affords a convenient view of store contents, while a child lock will disable the digital controls after two minutes of inactivity to prevent accidental adjustments. Additional features include audible alarms for high-temperature fluctuations and open drawer alerts, while a temporary memory function helps to recover all settings in the event of power loss. The Sabbath Mode setting disables certain electrical features during periods of religious observance.

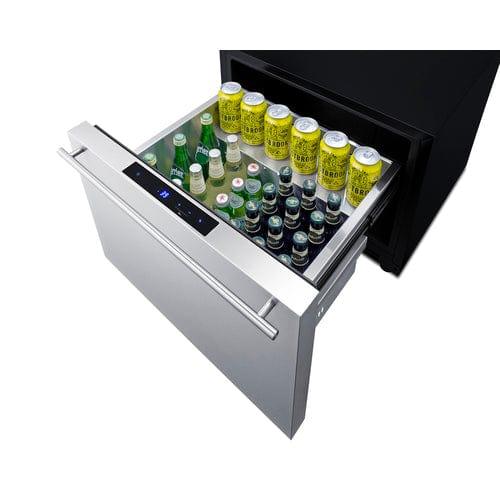

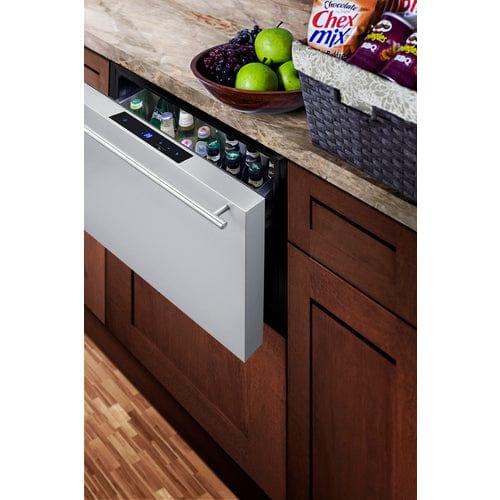

With its fully-featured, weatherproof design, the SDR24 is the perfect cooling compartment or beverage holder for home kitchens, as well as hotel spaces, foodservice areas, and more. For this unit sized to fit slimmer spaces, see the FF1DSS.
Note: This unit ships with a polycarbonate strip over the control panel to protect it from the elements. If installing this drawer in outdoor kitchens, keep the cover in place.
|
Overview
|
| Height of Cabinet |
17.75" (45 cm) |
| Width |
23.38" (59 cm) |
| Depth |
22.0" (56 cm) |
| Depth with Handle |
23.5" (60 cm) |
| Depth with door at 90° |
37.88" (96 cm) |
| Capacity |
2.0 cu.ft. (57 L) |
| Defrost Type |
Frost-Free |
| Door |
Stainless Steel/Panel-Ready |
| Cabinet |
Black |
| US Electrical Safety |
ETL |
| Canadian Electrical Safety |
ETL-C |
| Sanitation |
ETL-S |
| Energy Usage/Year |
265.0kWh/year |
| Amps |
1.0 |
| Voltage/Frequency |
115 V AC/60 Hz |
| Weight |
62.0 lbs. (28 kg) |
| Parts & Labor Warranty |
1 Year |
| Compressor Warranty |
5 Years |
| UPC |
761101086590 |
|
Refrigerator Features
|
| Sabbath Mode |
Yes |
| Door Swing |
Drawer |
| Reversible |
No |
| Shelf Type |
Glass |
| Shelf Qty |
1 |
| Adjustable Shelves |
Yes |
| Thermostat Type |
Digital |
| Fan Type |
Interior and Exterior |
| Refrigerant Type |
R600a |
| Refrigerant Amount |
0.85oz. |
| High Side PSI |
270.0 |
| Low Side PSI |
105.0 |
| Level Legs Qty |
4 |
| Interior Light |
Yes |
| Temperature Range |
36 to 43ºF |
| Sound Level |
32.6 dB |
|
Dimensions
|
| Interior Height |
13.0" (33 cm) |
| Interior Width |
17.75" (45 cm) |
| Interior Depth |
15.5" (39 cm) |
| Compressor Step Height |
6.5" (17 cm) |
| Compressor Step Width |
17.75" (45 cm) |
| Compressor Step Depth |
4.5" (11 cm) |
24" wide single drawer refrigerator
2 cu.ft. all-refrigerator in a single drawer style
Commercially approved
ETL-S listed to NSF-7 standard and meets UL-471 for use in commercial settings
Built-in capable
Front-breathing design allows you to build the drawer into cabinetry

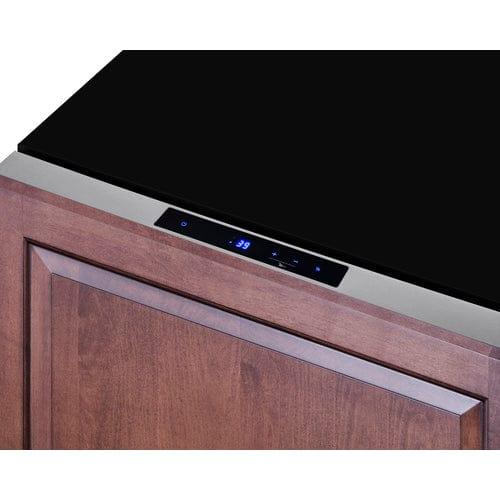

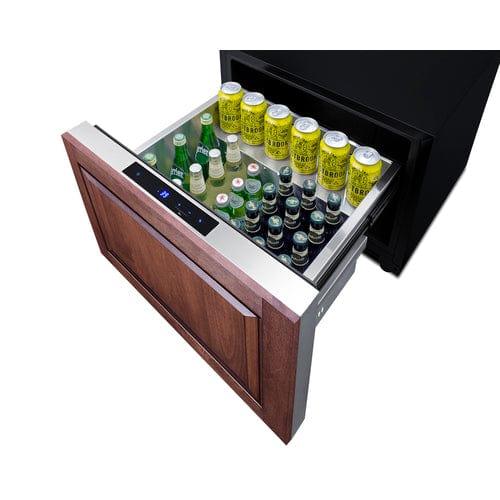

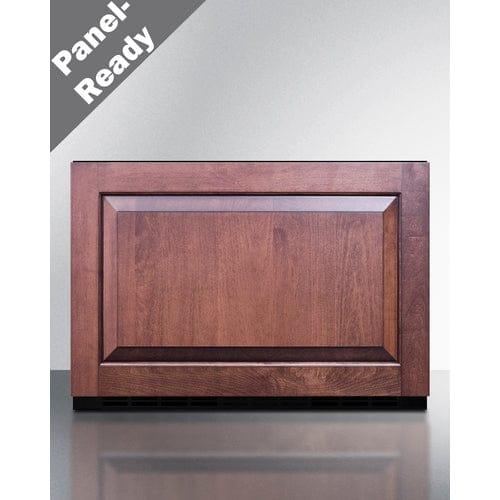

Panel-ready drawer front

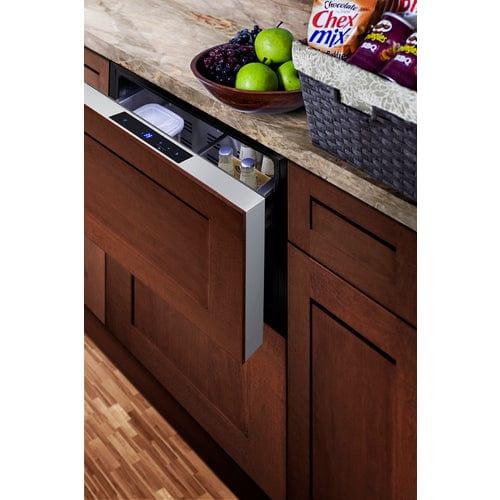

Drawer accepts an overlay panel to let you seamlessly blend the unit into an existing cabinetry design (panel dimensions: 15.6" H x 23.4" W at 3/4" maximum thickness)
304 grade stainless steel drawer
Drawer front and interior constructed from stainless steel for added durability and easy cleanability
Frost-free operation
Minimum user maintenance with a fully no-frost operation system

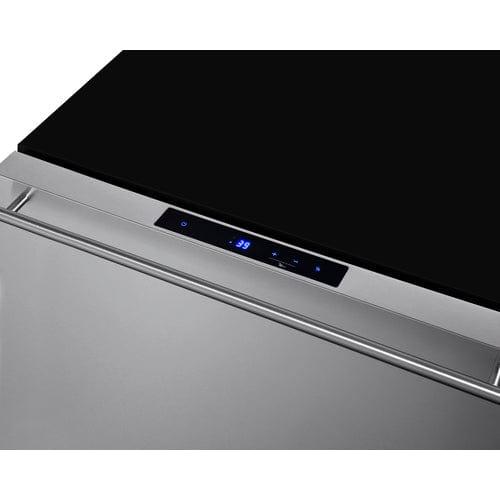

Digital thermostat
Electronic controls located on the top drawer ensure easy temperature management, with an external readout of Celsius or Fahrenheit
LED lighting
Elegant LED lighting in a gentle white hue illuminates the refrigerator for an easy view of the interior

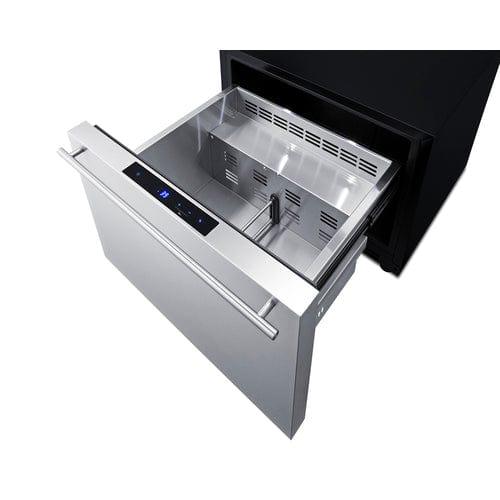

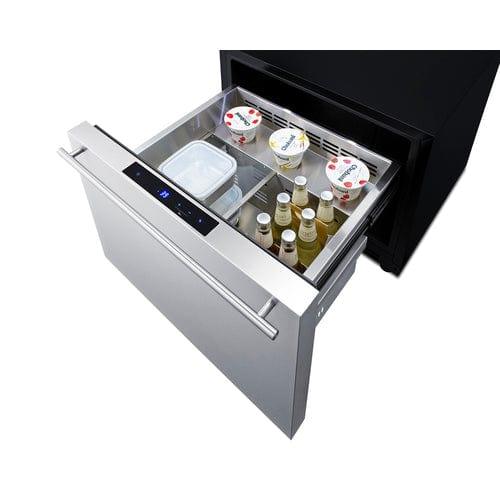

Drawer divider
Removable divider makes it easy to organize stored items
Glass shelf
Includes one half-sized shelf that lets you create more separation as needed
Internal fan
Fan-forced cooling ensures the unit is evenly cooled
Temperature Memory Function
Unit will retain its last settings when power is restored in the event of power loss
Professional handle
A sleek stainless steel handle adds an elegant touch to any setting
Temperature alarm
High temperature alarm sounds if the unit's interior goes out of the recommended range
Open drawer alarm
Audible alarm will sound if the drawer is left open longer than one minute
Sabbath Mode
Optional setting lets you disable certain electrical functions during periods of religious observance for 48 hours
Quiet operation
Runs at under 33 dB for a quiet performance in any setting
Child lock
Disables digital controls after two minutes of activity for added safety
Sealed back
Space-saving design with no exposed coils for easier cleanability
Right angle plug
Design allows you to plug the unit in flush against the wall socket with no need to add extra depth

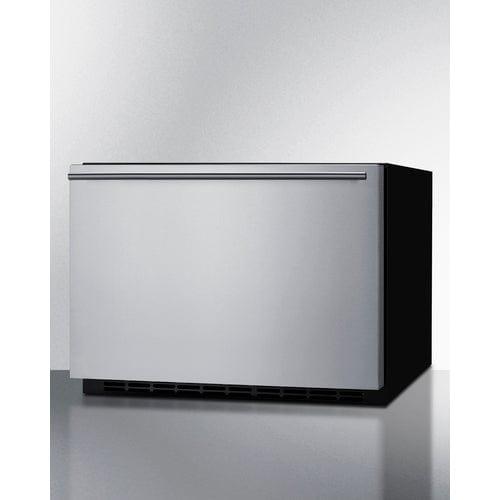

Fully finished black cabinet
Allows the unit to be used freestanding
100% CFC free
Environmentally friendly design without ozone-damaging chemicals
CARB Compliant
Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
