Unique fingerprint-proof black matte door trim in 304 grade stainless steel brings a modern look under the counter
Summit's extensive collection of built-in undercounter wine cellars includes unique choices for virtually every space.

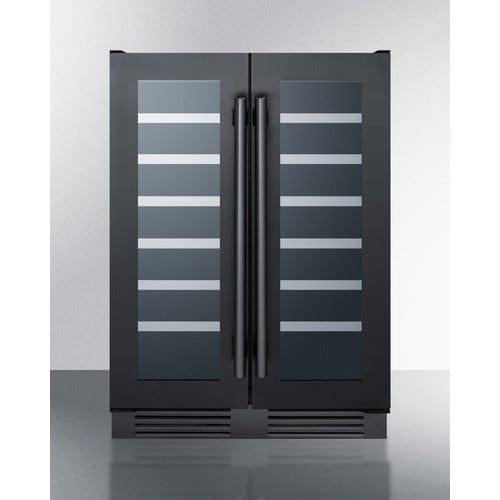

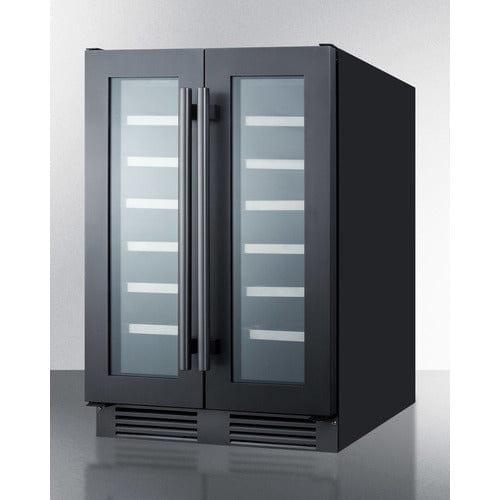

Sized for 24" wide spaces, the SWC24GKS is a dual zone wine cellar with a front-breathing design for built-in installation and a fully finished black cabinet that also allows freestanding use. The French door swing brings a dramatic look under the counter, with a fingerprint-proof black matte finish on the 304 grade stainless steel door trim. The handles and kickplate feature a brushed stainless steel finish in a smoky hue for a unique, modern accent.
Inside, the SWC24GKS features full-extension stainless steel-trimmed wooden shelves on rollers for easy loading. Digital controls make it easy to manage both temperature zones, with a readout viewable in Celsius or Fahrenheit. Both can be set for red or white wine storage. This unit can store up to 42 standard Bordeaux styles bottles. To accommodate wider Burgundy style wine bottles, you can remove every other shelf for a better fit. Each compartment includes an active charcoal filter to help preserve your collection. The walls feature white LED lighting that can be set to turn on with the open doors, or to stay on in presentation mode for a gentle, efficient glow. This unit is equipped with both an open door and high/low temperature alarm for added protection of your wine.
With its unique design and user-friendly features, the SWC24GKS lets you finish any undercounter space in modern style. Additional wine and beverage centers, including ADA compliant choices, are also available. Browse Summit's selection for more.
|
Overview
|
| Height of Cabinet |
34.25" (87 cm) |
| Width |
23.38" (59 cm) |
| Depth |
23.75" (60 cm) |
| Depth with Handle |
25.75" (65 cm) |
| Depth with door at 90° |
34.13" (87 cm) |
| Capacity |
5.2 cu.ft. (147 L) |
| Bottles |
42 bottles |
| Defrost Type |
Automatic |
| Door |
Glass |
| Cabinet |
Black |
| US Electrical Safety |
ETL |
| Canadian Electrical Safety |
ETL-C |
| Amps |
1.5 |
| Voltage/Frequency |
115 V AC/60 Hz |
| Weight |
130.0 lbs. (59 kg) |
| Shipping Weight |
192.5 lbs. (87 kg) |
| Parts & Labor Warranty |
1 Year |
| Compressor Warranty |
5 Years |
| UPC |
761101060194 |
|
Wine Cellar
|
| Number of Zones |
2 |
| Door Swing |
French |
| Reversible |
No |
| Shelf Type |
Wood |
| Shelf Qty |
12 |
| Thermostat Type |
Digital |
| Interior Light |
Yes |
| Fan Type |
Interior and Exterior |
| Refrigerant Type |
R600a |
| Refrigerant Amount |
0.77 oz. |
| High Side PSI |
320.0 |
| Low Side PSI |
120.0 |
| Interior Height 1 |
26.0" (66 cm) |
| Interior Width 1 |
9.38" (24 cm) |
| Interior Depth 1 |
18.5" (47 cm) |
| Compressor Step Height |
4.63" (12 cm) |
| Compressor Step Width |
19.63" (50 cm) |
| Compressor Step Depth |
5.0" (13 cm) |
| Level Legs |
2 |
| Temperature Range |
41°F to 65°F |
| Interior Height 2 |
26.0" (66 cm) |
| Interior Width 2 |
9.38" (24 cm) |
| Interior Depth 2 |
18.5" (47 cm) |
| Sound Level |
35.0 dB |
| Door |
| T3F Door Tint |
T1SF Door Tint |
| T4F Door Tint |
T2F Door Tint |
|
Built-in capable
Make the best use of space by installing your appliance under the counter

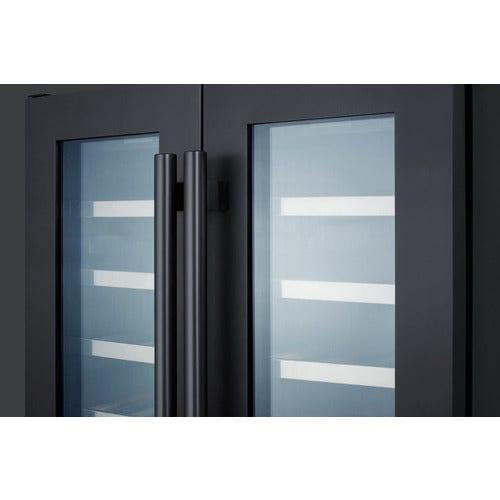

Two glass doors
Gently tinted glass provides a full view of stored wine while protecting your collection
Black stainless steel trimmed doors
Seamless design in fingerprint-proof black matte stainless steel for a modern look under the counter

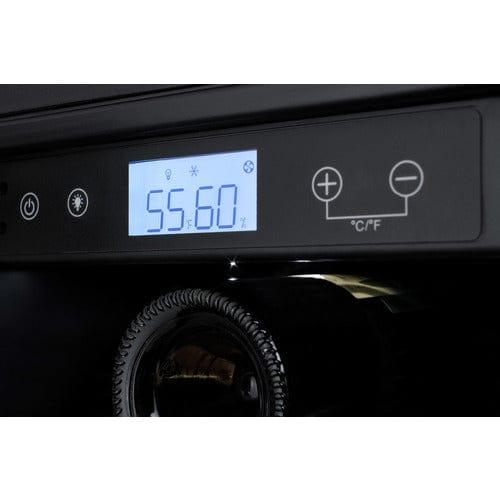

Digital thermostats
Set and adjust two temperature zones separately with easy-to-use digital controls that display the temperature in Celsius or Fahrenheit
Two temperature zones
Independent zones let you store your reds and whites under the perfect conditions

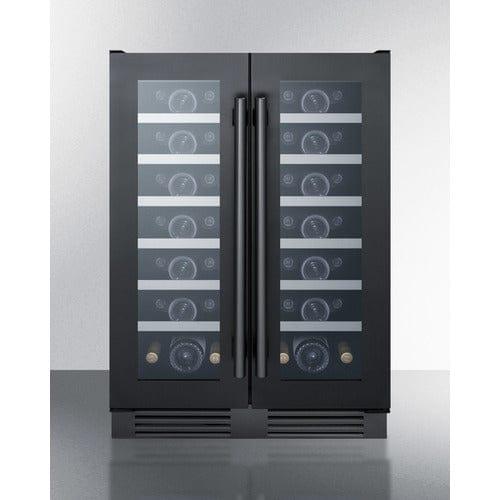

42 bottle capacity

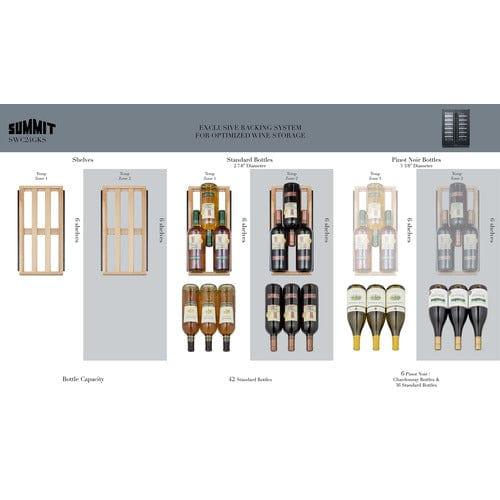

Each zone holds up to 21 standard Bordeaux style bottles. For wider Burgundy style bottles, we recommend removing every other shelf to best accommodate your storage needs

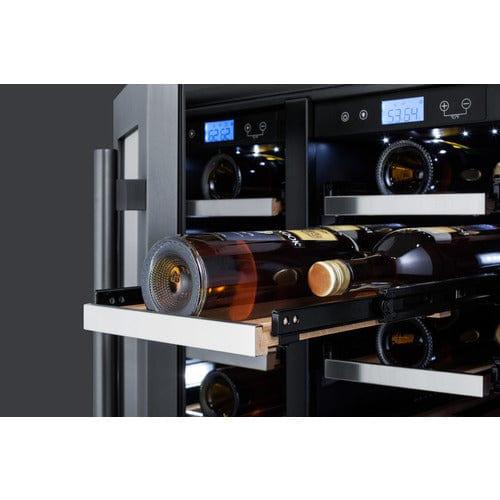

Full extension shelving
Wine shelves glide out smoothly for easier loading
Stainless steel trimmed wooden shelves
Wooden finish with stainless steel trim for an attractive accent
White LED lighting
Unique white light offers elegant illumination for the jet black interior
Automatic defrost
Reduced maintenance with auto defrost system
Fan-forced cooling
Internal fans ensure both interiors are evenly cooled from top to bottom
French door swing
Two side-by-side doors with French door opening
Temperature alarm
Audibly alerts if the interior temperature rises or falls out of the recommended wine storage range
Open door alarm
Audible alarm will sound if the door is left ajar
Active charcoal filters included
Each zone includes a charcoal filter to help preserve wine
Stainless steel kickplate
Added protection with a brushed stainless steel toe kick in a deep smoky finish

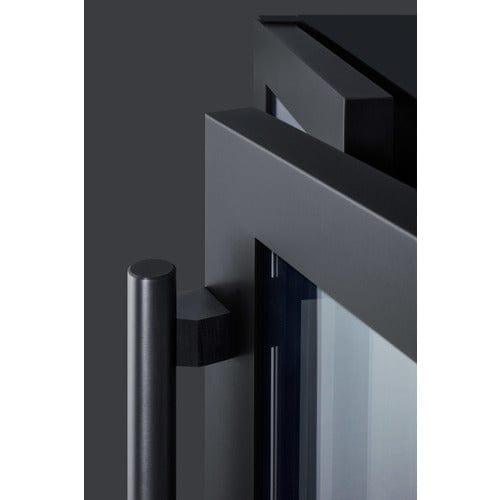

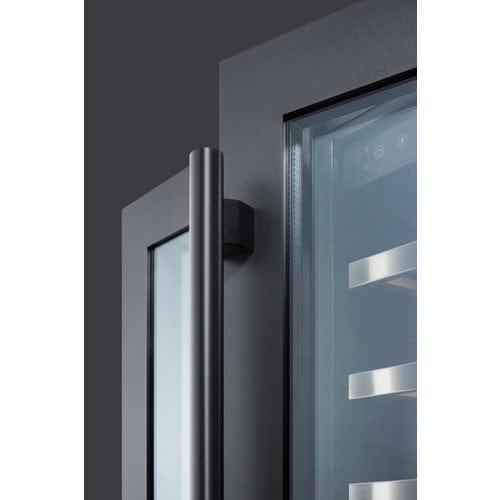

Stainless steel handles
Each door includes a professional handle in a deep brushed stainless steel finish to match the kickplate
Sealed back
Space saving design with easier cleanability
Fully finished black cabinet
Allows the unit to be used freestanding
100% CFC Free
Environmentally friendly design with no ozone-damaging chemicals
CARB Compliant
Environmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
