Made in the USA and designed to fit 34 1/8" H x 22 3/8" W x 23" D cutouts
Summit's classic series of 24" wide wall ovens are made in the USA and specially sized to fit common 34 1/8" H x 22 3/8" W cutouts.

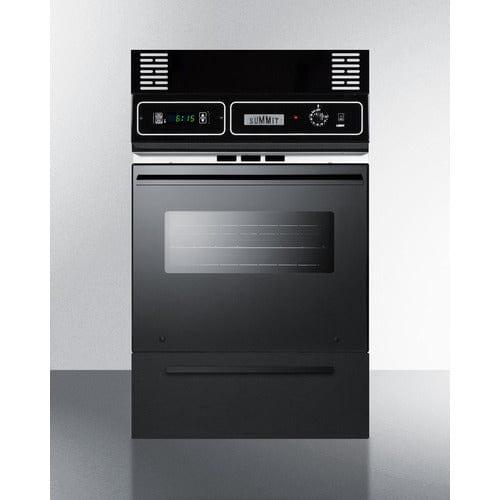

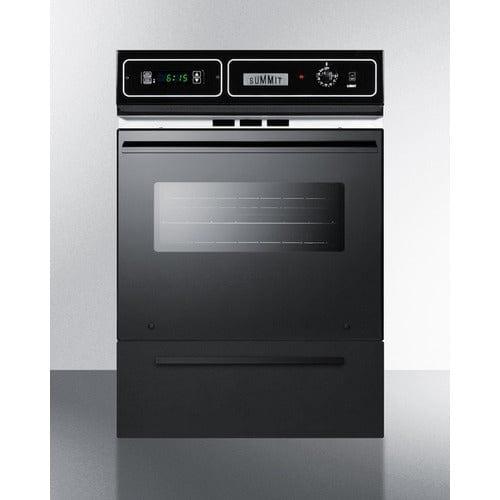

The TTM7212KW is a single gas wall oven with porcelain doors in a jet black finish. The oven door includes a window and exterior light switch to illuminate the interior, making it easy to monitor your cooking without opening the door. The manifold includes a digital clock with a timer function for added convenience.

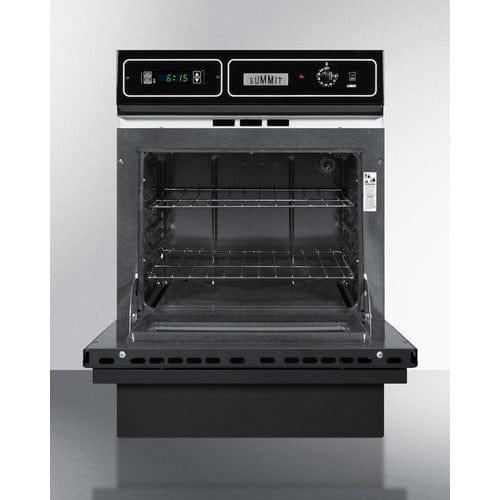

Inside, this wall oven features solid porcelain construction for lasting durability to hold up to everyday use. Two adjustable racks with safety brakes allow you to accommodate a variety of sizes when baking. The drop-down broiler includes a two-piece tray with grease well.
The TTM7212KW is powered by glow bar ignition and ships with a pre-installed 115V 3-prong cord. It is set for natural gas but can be converted to propane without additional equipment.
Summit's domestically manufactured wall ovens have an industry exclusive height of 34 1/2". These units fit many discontinued cutouts such as Caloric, Slattery, and older makes, including Magic Chef. To fit other cutouts up to 39" high, add the TKW700 trim kit accessory.
|
Overview
|
| Height of Cabinet |
34.5" (88 cm) |
| Width |
24.0" (61 cm) |
| Depth |
24.0" (61 cm) |
| Capacity |
2.92 cu.ft. (83 L) |
| Door |
Black |
| Cabinet |
Black |
| Amps |
3.6 |
| Voltage/Frequency |
115 V AC/60 Hz |
| Weight |
145.0 lbs. (66 kg) |
| Shipping Weight |
150.0 lbs. (68 kg) |
| Parts & Labor Warranty |
1 Year |
| UPC |
761101000527 |
|
Gas Walloven
|
| Ignition |
Glowbar |
| LP Convertible |
Yes |
| Controls |
Dial |
| Oven Light |
Yes |
| Cleaning Type |
Manual |
| Oven Rack Qty |
2 |
| Oven Window |
Yes |
| Interior Height |
14.0" (36 cm) |
| Interior Width |
19.0" (48 cm) |
| Interior Depth |
18.0" (46 cm) |
| Cutout Height |
34.13" (87 cm) |
| Cutout Width |
22.38" (57 cm) |
| Cutout Depth |
23.0" (58 cm) |
Made in the USA
Designed and constructed domestically
Classic fit
Sized to fit 34 1/8" H x 22 3/8" W cabinet cutouts, a popular replacement size rarely offered by other manufacturers
Black exterior
Jet black porcelain finish to suit most kitchen style
Large capacity
2.92 cu.ft. interior to fit large dishes
Oven window and light
Door includes a window and exterior on/off rocker light switch, making it easier to monitor your cooking without opening the door
Adjustable oven racks
Two wire racks with safety brakes included, with several glide positions to accommodate a variety of sizes
Broiler compartment
Lower drop-down compartment for separate broiling with even heat distribution
Electronic glow bar ignition
Includes a pre-installed 115V 3-prong cord for ignition
Dial controls
Basic knob controls for simple and intuitive cooking
Removable oven door
Allows for easier cleaning as needed
Digital clock and timer
Added convenience for easier cooking
Natural or LP gas
Unit comes set for natural gas connections but can be converted to propane in the field without any additional equipment
Porcelain construction
Interior oven is constructed from porcelain for lasting durability that holds up to daily cooking
Broiler pan included
Two-piece porcelain broiler tray with grease well
Optional trim kit
Add TKW700 accessory to raise the exterior height to fit 39" high openings
