Stainless steel shelves designed to store champagne and sparkling wine bottles at a slight angle for the perfect display in commercial settings
Summit Commercial offers a unique selection of wine cellars designed for optimum storage and bottle presentation.

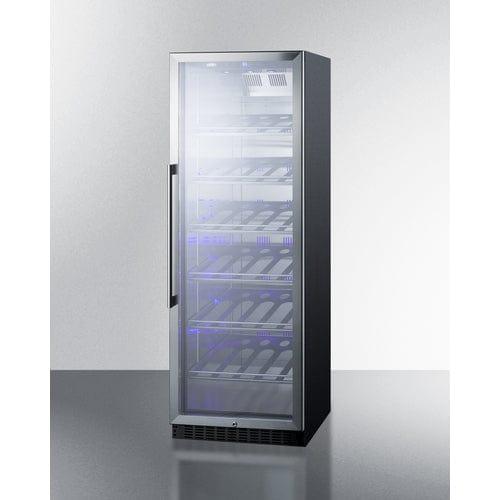

The SCR1401CH is an upright wine cellar built to meet NSF-7 commercial standards. The slim 24 inch footprint takes up minimum floor space, while the large 12.6 cu.ft. The self-closing stainless steel trimmed door includes a pro style handle and factory-installed lock for added security. This model comes with a right hand door swing. For a left hand version, see the SCR1401LHCH. This unit has a front-breathing cooling system that allows built-in installation, and a fully finished exterior that also enables freestanding use.

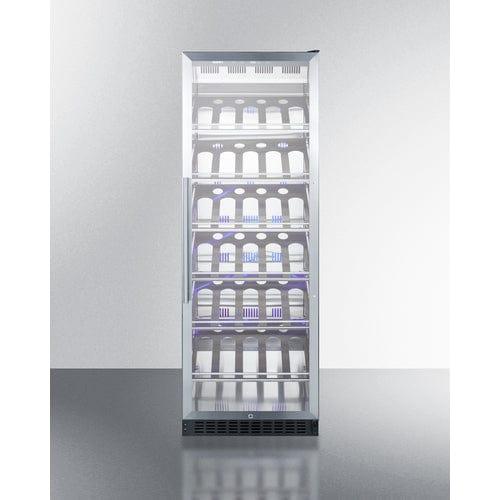

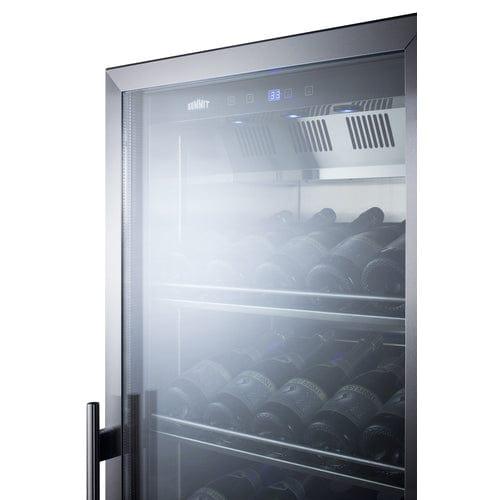

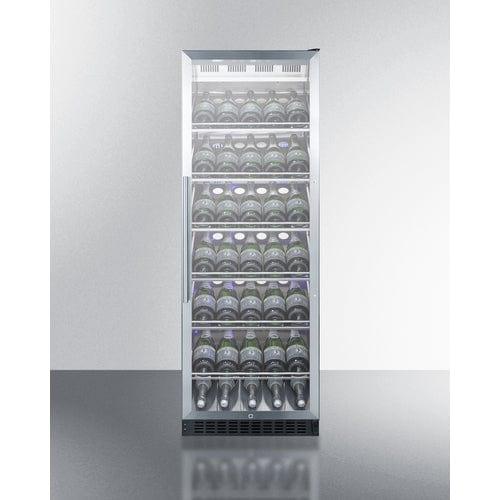

Inside, the SC1401CH includes stainless steel shelving specially designed to hold champagne and sparkling wine bottles at a slight angle, providing a full display of the label. The interior walls and floor are constructed from stainless steel for lasting durability in busy commercial settings. This unit is illuminated through the rear walls with efficient LED lighting in a striking blue hue. The digital control panel offers a wide 36 to 68ºF temperature range that allows you to program the optimum settings for red, white, or sparkling wine. Additional features include an audible high temperature alarm, open door alarm, temperature memory function, and sabbath mode setting.
The SCR1401CH comes with a fully finished jet black cabinet. Additional choices are available in stainless steel, as well as alternate sizes. Browse our website to explore our full lineup of commercially approved wine cellars.
|
Overview
|
| Height of Cabinet |
69.75" (177 cm) |
| Width |
23.63" (60 cm) |
| Depth |
23.75" (60 cm) |
| Depth with Handle |
25.63" (65 cm) |
| Depth with door at 90° |
46.75" (119 cm) |
| Capacity |
12.6 cu.ft. (357 L) |
| Bottles |
35 bottles |
| Defrost Type |
Frost-Free |
| Door |
Glass |
| Cabinet |
Black |
| US Electrical Safety |
ETL |
| Canadian Electrical Safety |
ETL-C |
| Sanitation |
ETL-S |
| Amps |
1.7 |
| Voltage/Frequency |
115 V AC/60 Hz |
| Weight |
250.0 lbs. (113 kg) |
| Shipping Weight |
220.0 lbs. (100 kg) |
| Parts & Labor Warranty |
1 Year |
| Compressor Warranty |
5 Years |
| UPC |
761101059822 |
|
Wine Cellar
|
| Number of Zones |
1 |
| Door Swing |
RHD |
| Reversible |
No |
| Shelf Type |
Steel |
| Shelf Qty |
6 |
| Thermostat Type |
Digital |
| Interior Light |
Yes |
| Fan Type |
Interior and Exterior |
| Refrigerant Type |
R600a |
| Refrigerant Amount |
1.76 oz. |
| High Side PSI |
270.0 |
| Low Side PSI |
105.0 |
| Interior Height 1 |
59.75" (152 cm) |
| Interior Width 1 |
20.0" (51 cm) |
| Interior Depth 1 |
16.5" (42 cm) |
| Temperature Range |
36 to 68ºF |
| Interior Height 2 |
4.5" (11 cm) |
| Interior Width 2 |
20.0" (51 cm) |
| Interior Depth 2 |
4.5" (11 cm) |
| Sabbath Mode |
Yes |
| Door |
| T3F Door Tint |
T1SF Door Tint |
| T4F Door Tint |
T2F Door Tint |
|
Commercially approved
Design meets UL-471 commercial standards and is ETL-S listed to NSF-7 standards for commercial use
Champagne racks
Stainless steel shelves are specially sized to store wider wine and champagne bottles
Bottle display
Cantilevered clips are pre-installed so that the shelving can be installed at a slight angle to provide a display of the bottle labels. Clips can be adjusted to a flat position to accommodate more shelves
Interior LED lighting
Fully lit interior with a striking blue LED hue, providing an attractive and energy efficient view
Slim fit
Just 24" wide and deep for an easy fit in any setting
Frost-free operation
No-frost convenience requires no manual defrosting
Stainless steel interior
Walls are constructed from stainless steel for added strength and easy cleanup
Double pane tempered glass door
Heat-safe glass door with stainless steel trim offers full display all the way down to the floor
Self-closing door
Door will automatically close when left ajar, preventing items from accidentally being left exposed to ambient temperatures
Digital thermostat
Electronic controls for precise temperature management, with a readout viewable in Celsius or Fahrenheit
Wide temperature range
Interior can be set between 36 to 68ºF, allowing users to adjust for red wine, white wine, or champagne
Factory installed lock
Keyed lock for a secure interior (2 keys included)
Fan-forced cooling
Internal fan ensures the interior is evenly cooled from top to bottom
High temperature alarm
Alarm sounds if the interior temperature rises out of suggested range
Professional handle
Attractive design in stainless steel to complete the look
Right hand door swing
For this unit with a left hand door swing, order SCR1401LCH
Sabbath mode setting
Optional setting lets you disable the lighting and alarm for up to 48 hours
Right angle plug
Design allows you to plug the unit in flush against the wall socket with no need to add extra depth
Temperature Memory Function
Unit will retain its last settings when power is restored in the event of power loss
Fully finished black cabinet
Allows the unit to be used freestanding
Built-in or freestanding
Flexible design with a front-breathing cooling system to allow built-in installation and a fully finished exterior that also enables safe freestanding use
100% CFC Free
Environmentally friendly design with no ozone-damaging chemicals
CARB Compliant
Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
