Front-breathing system allows built-in installation for a better fit
Summit offers a unique selection of built-in capable full-sized wine cellars for convenient wine storage in the home.

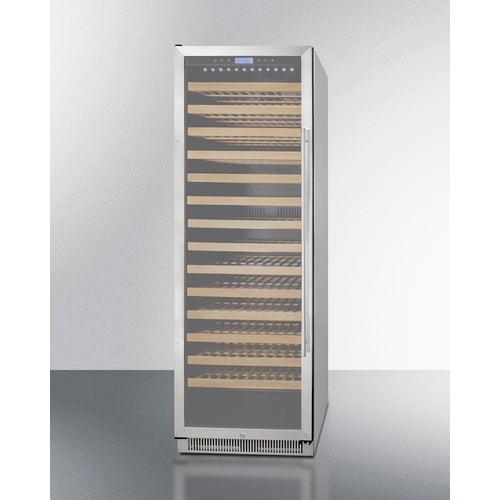

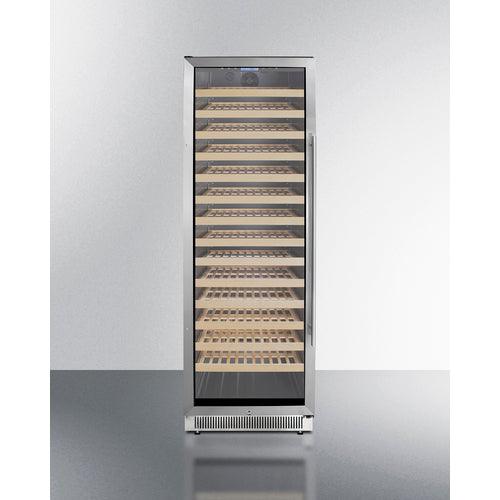

The SWC1926BCSSLHD is a 24" wide wine cellar designed to display your wine collection under the proper conditions. This has a single temperature zone with digital controls that can be adjusted from 41-65°F to accommodate red or white wine as needed. It features a front-breathing design for built-in installation, with a fully finished stainless steel cabinet that also allows freestanding use. Sized just under 27" deep, this unit has a sealed back and right-angle plug for added depth savings. The exterior features a double pane tempered glass door with stainless steel trim. A stainless steel kickplate provides added elegance, while the pro-style handle completes the look. This unit includes a factory installed keyed lock for added security and powerful magnetic gaskets to ensure a proper seal for efficient cooling. This unit comes with a left-hand door swing. (Note: the door is not user-reversible. For a right-hand door swing, please see the SWC1926BCSS.)
Inside, the SWC1926BCSSLHD includes 14 wooden shelves that slide out 50% for easy loading and unloading. Optimal storage capacity accommodates up to 165 standard 750ml Bordeaux bottles or wider Burgundy style bottles (note: your capacity may vary depending on the bottle style). White LED lighting positioned at the top of the unit attractively illuminates your collection for a stylish display. An internal fan ensures the interior is properly chilled, while a charcoal filtration system keeps the interior odor-free. Additional features include an open door alarm and high/low temperature alarm that sound if the unit temperature goes out of range.
With its convenient size, advanced features, and elegant design, the SWC1926BCSSLHD is the perfect addition to any home bar or kitchen seeking full capacity wine storage with a modern presentation.
|
Overview
|
| Height of Cabinet |
69.5" (177 cm) |
| Width |
23.63" (60 cm) |
| Depth |
26.5" (67 cm) |
| Depth with Handle |
28.25" (72 cm) |
| Depth with door at 90° |
48.75" (124 cm) |
| Bottles |
165 bottles |
| Defrost Type |
Automatic |
| Door |
Glass |
| Cabinet |
Stainless Steel |
| US Electrical Safety |
ETL |
| Canadian Electrical Safety |
ETL-C |
| Amps |
2.0 |
| Voltage/Frequency |
115 V AC/60 Hz |
| Weight |
230.0 lbs. (104 kg) |
| Parts & Labor Warranty |
1 Year |
| Compressor Warranty |
5 Years |
| UPC |
761101079240 |
|
Wine Cellar
|
| Number of Zones |
1 |
| Door Swing |
LHD |
| Reversible |
No |
| Shelf Type |
Wood |
| Shelf Qty |
14 |
| Thermostat Type |
Digital |
| Interior Light |
Yes |
| Fan Type |
Interior and Exterior |
| Refrigerant Type |
R600a |
| Refrigerant Amount |
1.76 oz. |
| High Side PSI |
320.0 |
| Low Side PSI |
120.0 |
| Interior Height 1 |
60.75" (154 cm) |
| Interior Width 1 |
20.38" (52 cm) |
| Interior Depth 1 |
21.0" (53 cm) |
| Level Legs |
2 |
| Temperature Range |
41-65°F |
| Sound Level |
33 dB |
| Door |
| T2F Door Tint |
T4F Door Tint |
| T1SF Door Tint |
T3F Door Tint |
|
Built-in capable
Front-breathing design allows the unit to be integrated with minimum clearance for a flush look (fits in spaces sized at 70.75" H x 23.88"W x 28" D)

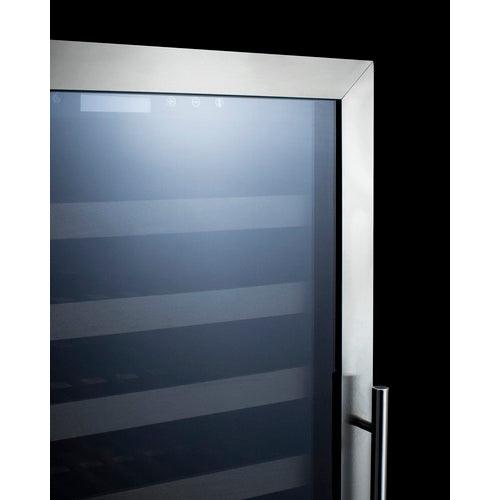

Stainless steel trimmed glass door
Provides a full display of the interior, with two levels of glass for added protection

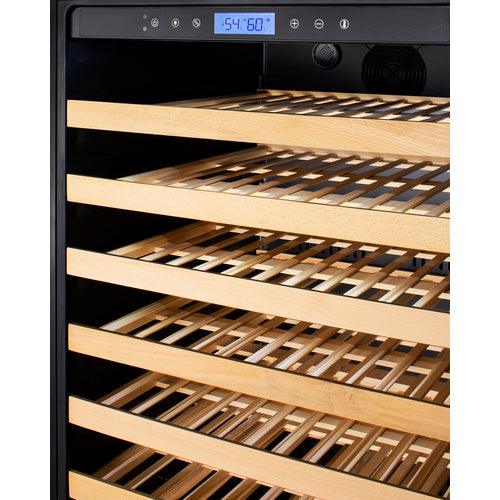

Digital thermostat
Located inside the unit, the electronic thermostat allows easy temperature adjustment with a display in Celsius or Fahrenheit

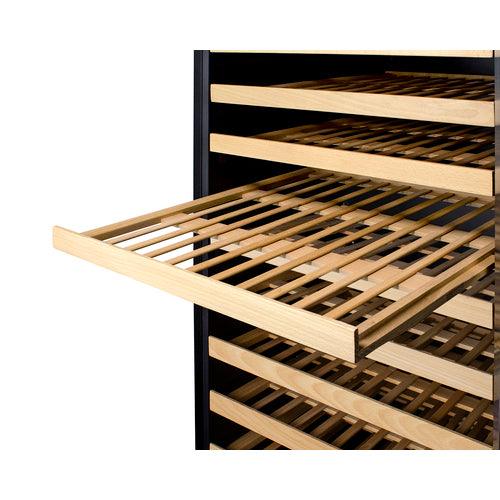

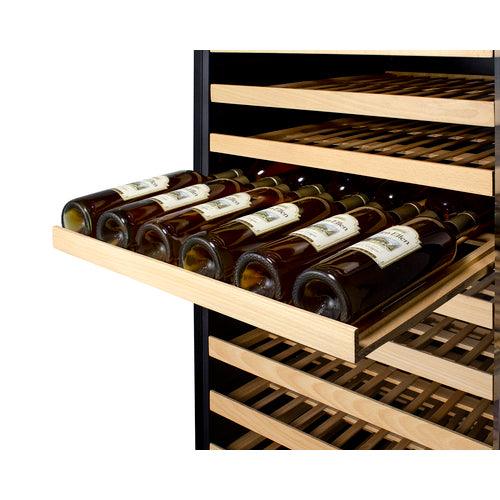

Slide-out wooden shelving
14 shelves slide out 50% for easier loading and optimum capacity

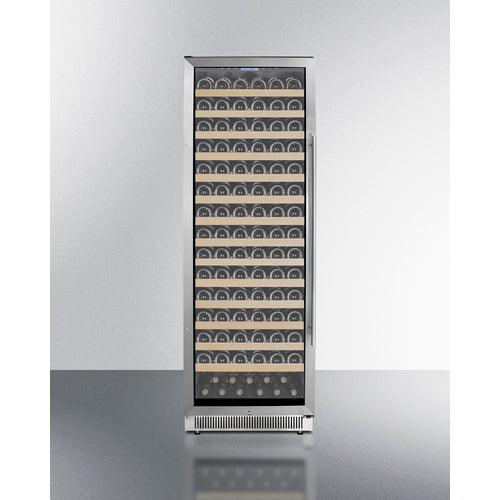

Versatile storage
Interior can hold up to 165 standard 750ml Bordeaux style bottles or Burgundy style bottles (11 bottles on each shelf and 11 bottles stacked on the slotted bottom)
Professional handle
37" long handle in a brushed stainless look offers the perfect finish to your wine cellar
LED lighting
LED lighting located at the top of the unit provides an attractive and energy-efficient illumination of your collection in a gentle white hue
Factory-installed lock
Keyed lock secures the interior (2 keys included)
Wide temperature range
Temperature range of 41-65°F for storing your collection under the proper conditions
Stainless steel kickplate
Allows for front ventilation in an elegant design
Charcoal filtration system
Helps to purify air for an odor-free interior
High/low temperature alarms
Audibly sounds if the interior rises or falls out of recommended range
Open door alarm
Alerts if unit door is ajar for more than 5 minutes
Magnetic door gasket
Ensures a tight seal for energy savings and improved performance
Sealed back
Flush back allows for a better fit and easier cleanability
Right angle plug
Design allows you to plug the unit in flush against the wall socket with no need to add extra depth

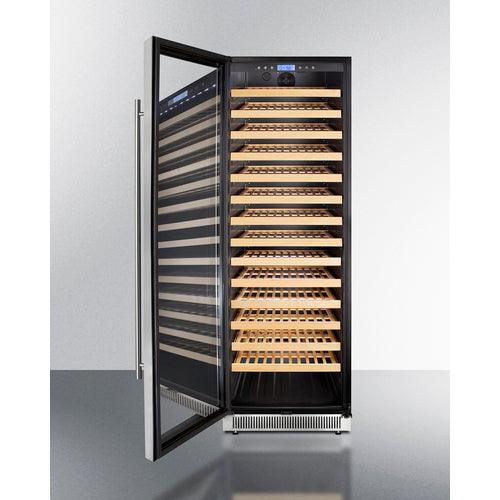

Left-hand door swing
This unit comes with a left-hand door swing. (Note: the door is not user-reversible; for a right-hand door swing, see the SWC1926BCSS)
Fully finished stainless steel cabinet
Allows the unit to be used freestanding
100% CFC free
Environmentally friendly design with no ozone-damaging chemicals
CARB Compliant
Environmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
