Made in the USA with genuine Schott Ceran® glass
SUMMIT introduces a new series of smooth-top electric cooktops sized for unique kitchen counter spaces, all made in the USA with the industry's best elements.
The CR5B274W is a 230V 6600W cooktop, with all burner elements made by E.G.O in Germany. This unit includes one large 8" 1800W element located in the center to accommodate large cooking vessels. Four standard 1200W 6 1/2" burners meet most heating needs. Push-to-turn knobs offer added safety, with an attractive matte white finish to complete the look. Each burner includes an indicator light.
The smooth surface is made from ceramic Schott glass in a classic white finish, offering easier cleanup than traditional coil elements. The unit is finished with a sleek trim in 304 grade stainless steel for added durability. Sized with an exterior width of 27" and a conveniently shallow 20 1/2" depth, the CR5B274W can fit in cutouts 25 1/4" W x 18 3/4" deep.
Designed and manufactured in the USA, the CR5B274W is the perfect way to finish any small kitchen space. For this unit in a black glass finish, see the CR5B273B.
|
Overview
|
| Height of Cabinet |
3.13" (8 cm) |
| Width |
27.0" (69 cm) |
| Depth |
20.5" (52 cm) |
| Cabinet |
White |
| US Electrical Safety |
ETL |
| Canadian Electrical Safety |
ETL-C |
| Amps |
25.0 |
| Voltage/Frequency |
230 V AC/60 Hz |
| Weight |
35.0 lbs. (16 kg) |
| Shipping Weight |
41.0 lbs. (19 kg) |
| Parts & Labor Warranty |
1 Year |
| UPC |
761101060330 |
|
Electric Cooktop
|
| Heating Type |
Radiant |
| Surface |
Glass |
| Element Type |
Glasstop |
| Number of Elements |
5 |
| Controls |
Dial |
| Countertop Cutout Width |
25.25" (64 cm) |
| Countertop Cutout Depth |
18.75" (48 cm) |
| Element #1 Size |
8.0" (20 cm) |
| Element #1 Wattage |
1800.0 |
| Element #2 Size |
6.5" (17 cm) |
| Element #2 Wattage |
1200.0 |
| Element #3 Size |
6.5" (17 cm) |
| Element #3 Wattage |
1200.0 |
| Element #4 Size |
6.5" (17 cm) |
| Element #4 Wattage |
1200.0 |
| Element #5 Size |
6.5" (17 cm) |
| Element #5 Wattage |
1200.0 |
| Power Cord Included |
No |
27" width
Designed to fit 25.25" W x 18.75" D cutouts
Schott Ceran surface
Smooth ceramic glass cooking surface in a classic white finish
High output burner
Center burner features an 8" diameter for 1800W of cooking power, ideal for larger cooking vessels
Standard burners
Four 6.5" 1200W burners meet most heating needs
E.G.O. burners
Considered by many to be the industry's best cooking technology

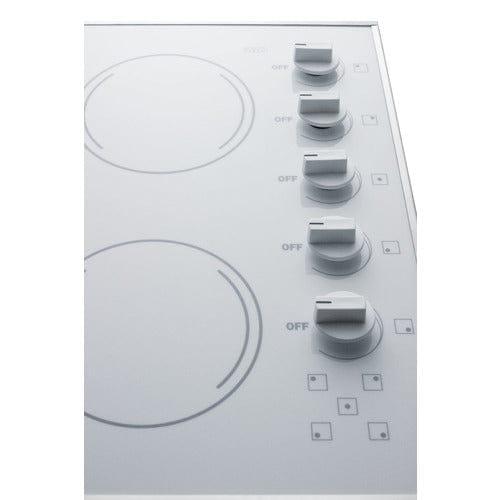

Push-to-turn knobs
Controls require a gentle push to help prevent cooking accidents
Indicator lights
Each burner includes an indicator light to show when the unit is on
Stainless steel trim
Stainless steel border adds an extra touch of style
230V operation
Requires professional hardwired installation to 230V power supply
