Touch controls for intuitive cooking, with two extra large dual ring elements to accommodate larger sized cookware
Summit's collection of smooth-top radiant cooktops includes fully featured models sized for standard kitchen counters, with user-friendly touch controls.

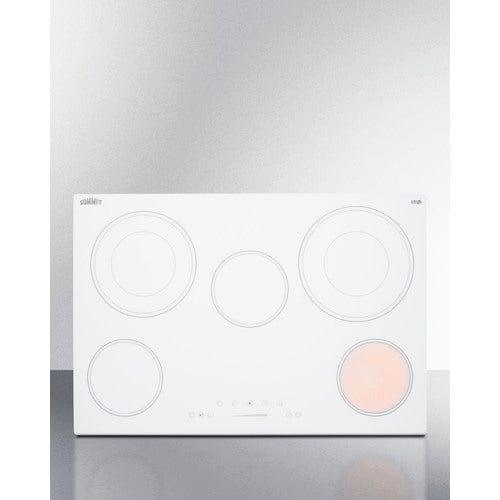

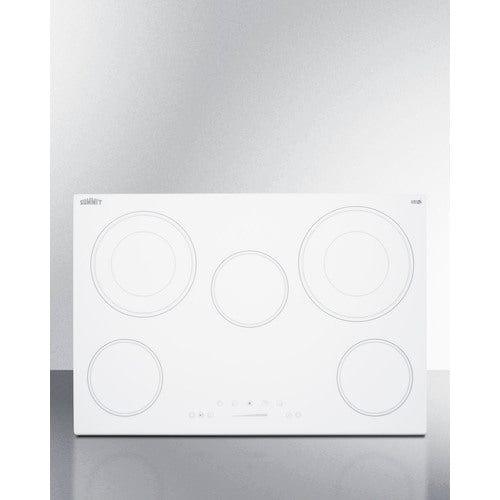

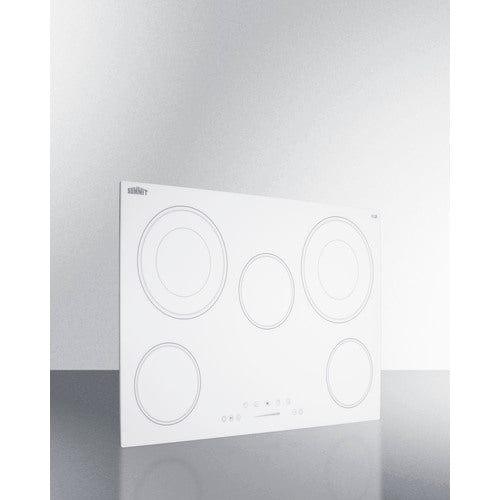

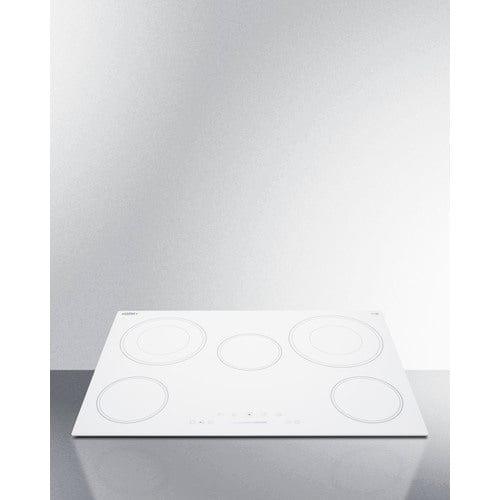

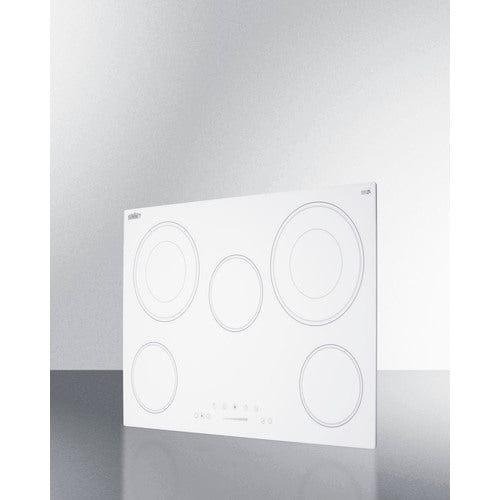

The CR5B30T8W is a 30" wide 208-240V radiant cooktop designed to fit popular 29 1/2" W x 19 5/8" D counter cutouts. The surface is made from smooth EuroKera ceramic glass in a clean white finish for a durable, modern look. This unit does not ship with a power cord and must be hard-wired by a professional.

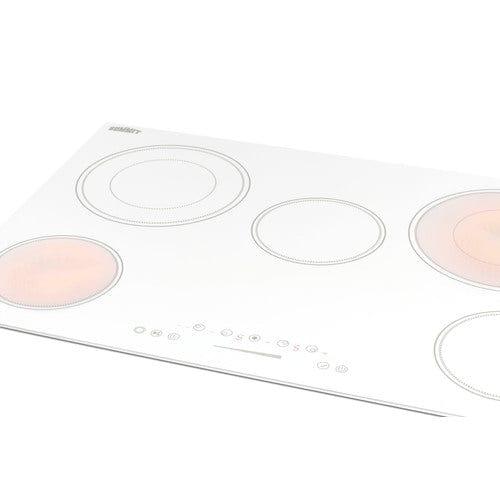

Five elements let you meet a variety of cooking needs. The two extra large dual ring elements in the rear (2200W 9" element on the left and 2500W 9 3/4" element on the right) allow you to efficiently heat woks, Dutch ovens, and other large cooking vessels or to switch to the inner 5 1/2" elements as needed. The 6 1/2" 1200W front burners cover standard sizes, while the center 100W warming zone element lets you keep cookware heated without overcooking.
The digital controls are centered upfront, ensuring users won't have to reach over hot burners to adjust the temperature. The intuitive touch design is easy to operate and clean. This unit also includes a timer function that lets you program a power level and cook time (up to 99 minutes) that can either turn the unit off when complete, or serve as a visual countdown with an audible alert when the set time has been reached. Safety features include a child lock function, automatic shutoff after two hours, and a residual heat indicator.
With its attractive design, smartly designed burner configuration, and intuitive touch controls, the CR5B30T8W brings a user-friendly cooking performance with reliable safety to the kitchen. Additional choices are available in 24" and 36" wide sizes, as well as black glass finishes. Browse the full Summit lineup for more.
|
Overview
|
| Height of Cabinet |
2.13" (5 cm) |
| Width |
30.25" (77 cm) |
| Depth |
20.5" (52 cm) |
| Cabinet |
White |
| US Electrical Safety |
ETL |
| Canadian Electrical Safety |
ETL-C |
| Amps |
30.0 |
| Voltage/Frequency |
240 V AC/60 Hz |
| Weight |
28.0 lbs. (13 kg) |
| Shipping Weight |
32.5 lbs. (15 kg) |
| Parts & Labor Warranty |
1 Year |
| UPC |
761101077550 |
|
Electric Cooktop
|
| Heating Type |
Radiant |
| Surface |
Glass |
| Element Type |
Glasstop |
| Number of Elements |
5 |
| Controls |
Digital |
| Cooking Timer |
Yes |
| Countertop Cutout Height |
3.2" (8 cm) |
| Countertop Cutout Width |
29.5" (75 cm) |
| Countertop Cutout Depth |
19.63" (50 cm) |
| Element #1 Size |
6.5" (17 cm) |
| Element #1 Wattage |
1200.0 |
| Element #2 Size |
9.0" (23 cm) |
| Element #2 Wattage |
2200.0 |
| Element #3 Size |
6.5" (17 cm) |
| Element #3 Wattage |
100.0 |
| Element #4 Size |
9.75" (25 cm) |
| Element #4 Wattage |
2500.0 |
| Element #5 Size |
6.5" (17 cm) |
| Element #5 Wattage |
1200.0 |
| Power Cord Included |
No |
30" wide 5-burner radiant cooktop
Designed to fit common 29 1/2" x 19 5/8" counter cutouts
EuroKera glass surface
Easy cleanup and elegant style on a smooth ceramic glass surface in a clean white finish

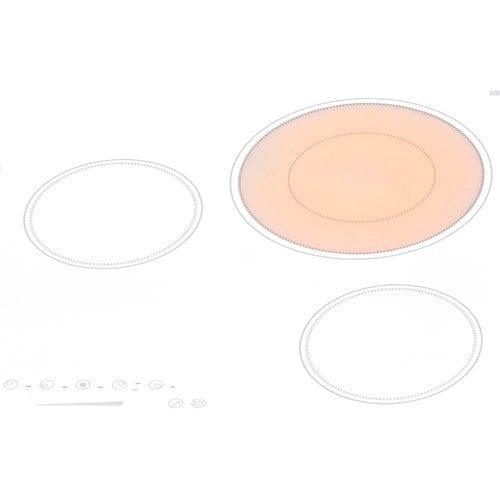

Extra large 2500W burner
Rear right burner comes with a 9 3/4" diameter and powerful 2500W cooking power to handle large pots and help boil water with more speed
Large 2200W burner
Left rear 2200W element is 9" in diameter to handle larger cooking vessels
2 Standard 1200W burners
Front left and front right burners are 6.5" in diameter to meet most cooking needs

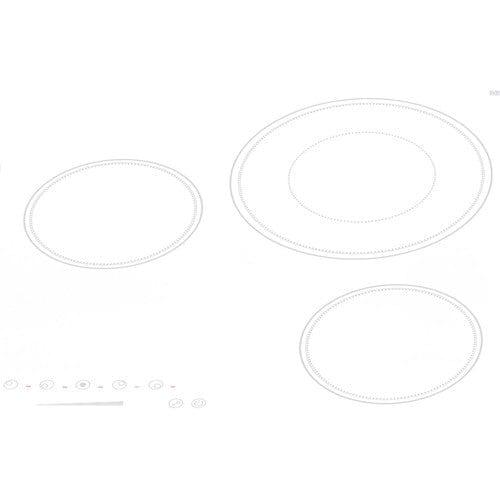

Dual cooking zones
Rear burners include an inner 5 1/2" burner, allowing you to save energy when heating smaller cookware
Warming zone
Center 6 1/2" element operates at a low 100W to help keep cookware warm without overheating

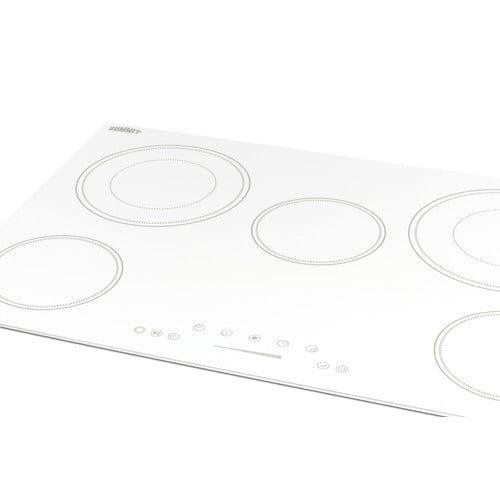

Digital touch controls
Easy operation with a digital control panel and digital display conveniently centered upfront
9 power levels
Select and adjust your heating levels at the touch of a button
Timer
Allows you to program either burner to heat at a specified level for up to 99 minutes and either turn off when finished or display a countdown with an audible alert when the time is up
Residual heat indicator light
Indicator shows when the surface is still hot to touch
ADA compliant design
Upfront controls meet ADA guidelines for easier accessibilty
Child lock
Safety feature lets you lock the cooktop to prevent unsupervised heating
Safety cut-off function
If the cooktop on/off switch is touched but no power level is selected within one minute, the cooktop automatically turns off
Automatic shutoff
If a cooking zone is in use for over two hours with no changes to the control setting, the burner will automatically turn off to prevent unsupervised heating
208-240V operation
Requires professional hardwired installation (cord not included)
