Made for Summit by Elcold in Denmark, with digital controls and improved insulation for optimum storage
Summit Commercial's line of flat top ice cream freezers features a deluxe European design to provide quality storage and long-lasting convenience.

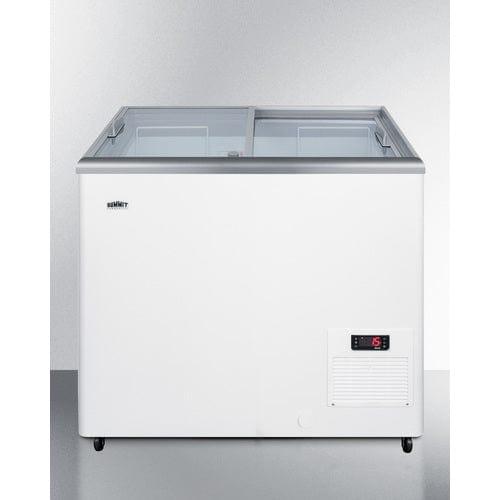

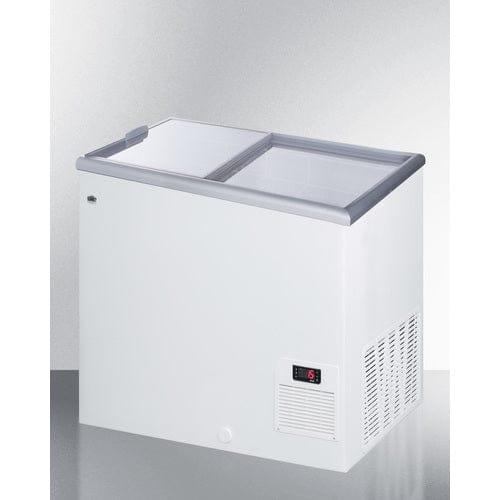

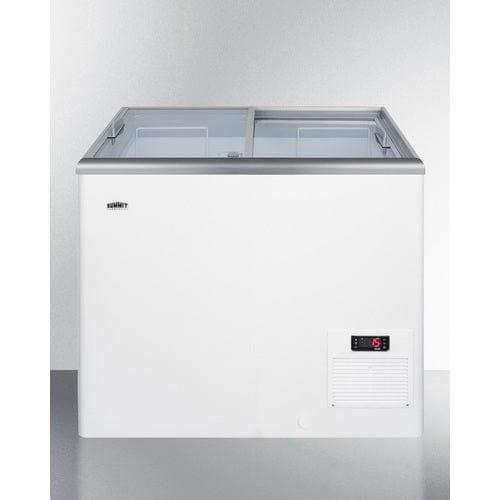

Made for us by Elcold in Denmark, the NOVA22 features two tempered glass lids on ball-bearing glides that open and close smoothly to save your staff time and ensure ice cream isn't overexposed to warmer air temperature. This unit includes a removable keyed lock to allow users the option of securing their goods. The white cabinet suits any setting, while the gray lid trim offers an added touch of clean style. We include a set of sturdy commercial casters for users to install if they prefer the freezer more mobile. The digital thermostat is externally located for easy temperature management, with a wide range from -13 to 23ºF to accommodate a variety of desserts. We pre-set the unit to -4ºF.
Inside, the NOVA22 features a steel interior in a clean white finish designed for lasting durability in busy commercial settings. We include two epoxy coated wire novelty baskets, ideal for storing frozen treats and designed to easily glide back and forth as needed. This unit utilizes a manual defrost cooling system with environmentally friendly R290a cooling agent and extra thick insulation to ensure added reliability. A drain is included for easy defrosting.
The NOVA22 is UL-S listed to NSF-7 commercial standards. Additional sizes are available. This freezer can also be ordered as a dipping cabinet with a factory-installed sneezeguard (model NOVA22PDC).
|
Overview
|
| Height of Cabinet |
31.5" (80 cm) |
| Width |
30.0" (76 cm) |
| Depth |
27.25" (69 cm) |
| Capacity |
7.2 cu.ft. (204 L) |
| Defrost Type |
Manual |
| Door |
Glass |
| Cabinet |
White |
| US Electrical Safety |
UL |
| Canadian Electrical Safety |
ULC |
| Sanitation |
UL-S |
| Amps |
7.2 |
| Voltage/Frequency |
115 V AC/60 Hz |
| Weight |
110.0 lbs. (50 kg) |
| Shipping Weight |
130.0 lbs. (59 kg) |
| Parts & Labor Warranty |
1 Year |
| Compressor Warranty |
5 Years |
| UPC |
761101064925 |
|
Freezer
|
| Door Swing |
Sliding |
| Interior Height |
26.0" (66 cm) |
| Interior Width |
23.75" (60 cm) |
| Interior Depth |
21.0" (53 cm) |
| Thermostat Type |
Digital |
| Refrigerant Type |
R290a |
| Refrigerant Amount |
3.03 oz. |
| High Side PSI |
345.0 |
| Low Side PSI |
140.0 |
| Compressor Step Height |
9.75" (25 cm) |
| Compressor Step Width |
7.88" (20 cm) |
| Compressor Step Depth |
21.0" (53 cm) |
| Temperature Range |
-13 to 23ºF |
Commercially approved
UL-S listed to NSF-7 Standards for use in commercial establishments

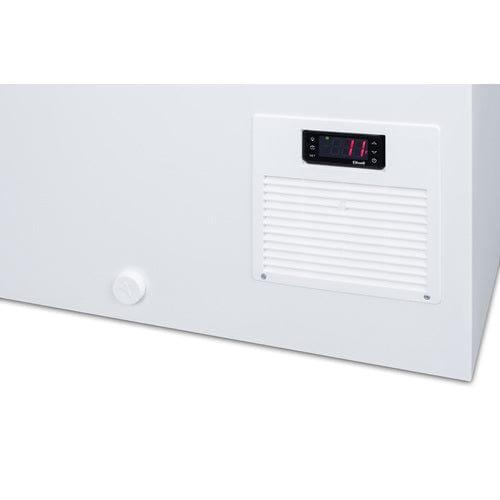

Digital thermostat
Electronic controls for more precise temperature management
Wide temperature range
Digital thermostat can be set between -13 and +23ºF to accommodate a variety of frozen treats

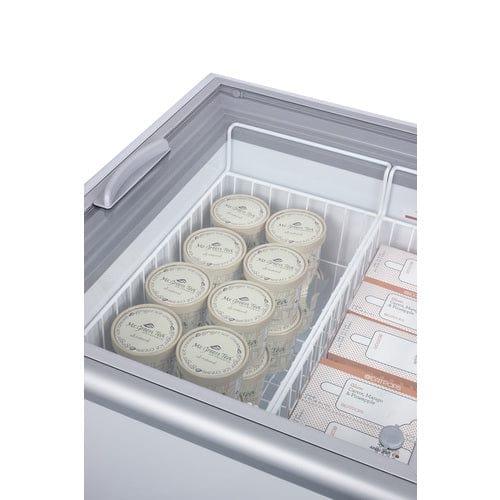

Baskets included
Two epoxy-coated wire baskets included to store novelty items
Sliding glass lid
Two tempered glass lids on ball-bearing glides slide open and closed easily for added efficiency
Strong insulation
3" thick insulation helps to ensure items stay cold
Manual defrost
Static cooling system for improved temperature stability

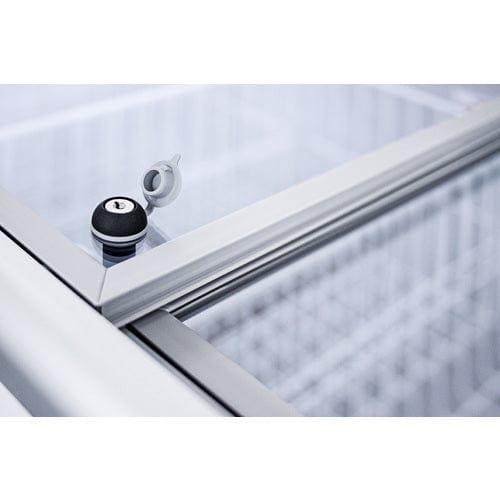

Removable lock
A keyed lock is included for optional use
Steel interior
Durable construction in a white finish for easy visibility
Casters
Heavy duty wheels for smooth mobility (ship unassembled)
Fan-cooled compressor
Offers improved temperature performance throughout the interior
Defrost drain
Front located for easier defrosting
100% CFC Free
Environmentally friendly design with no ozone-damaging chemicals
CARB Compliant
Environmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
