32" height and front-breathing system for built-in installation under ADA compliant counters
Summit Appliance offers a wide range of built-in undercounter refrigerator-freezers designed for installation under lower ADA compliant counters, with advanced features for user convenience.

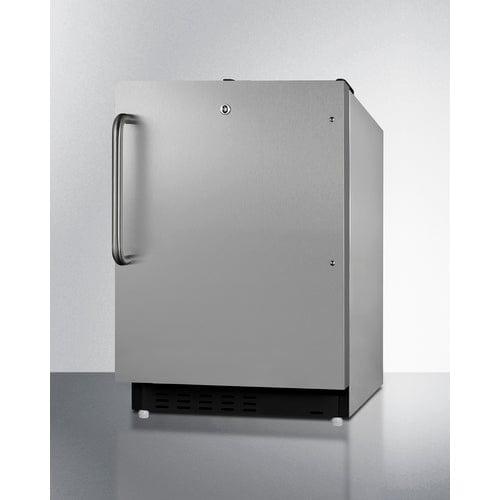

The ALRF49BCSS is sized at 32" high to fit under lower counters complying with ADA guidelines for accessibility. The fully finished stainless steel cabinet allows freestanding use, while the front-breathing system means this unit can be built-in with minimum clearance. The stainless steel, user-reversible door is 3" thick for efficient insulation, with a curved towel bar handle included for added convenience. This unit comes with a right angle cord to allow for easier placement without added depth. A factory-installed lock is conveniently located towards the top of the door to provide security as needed.

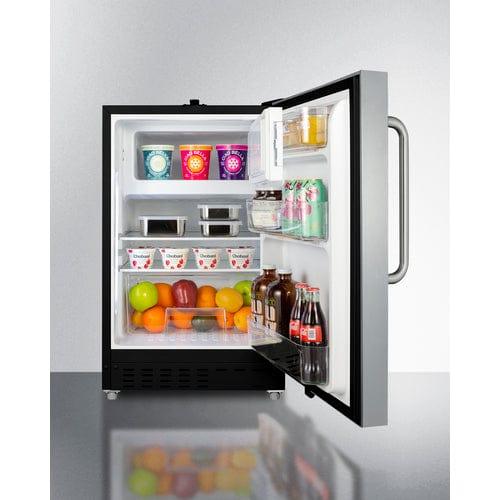

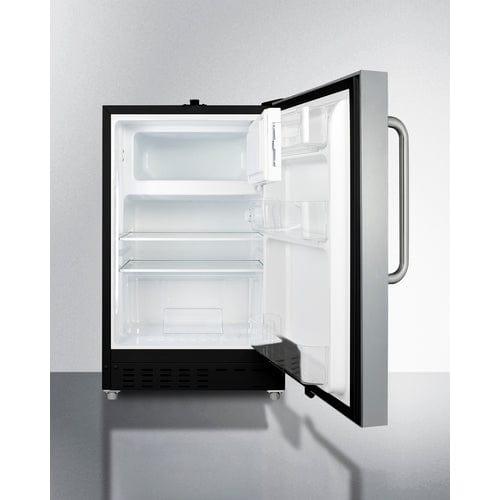

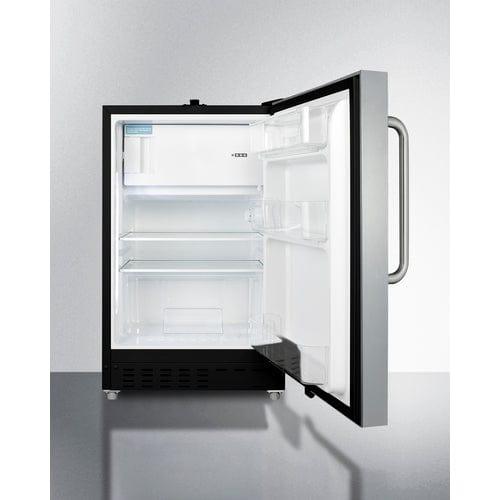

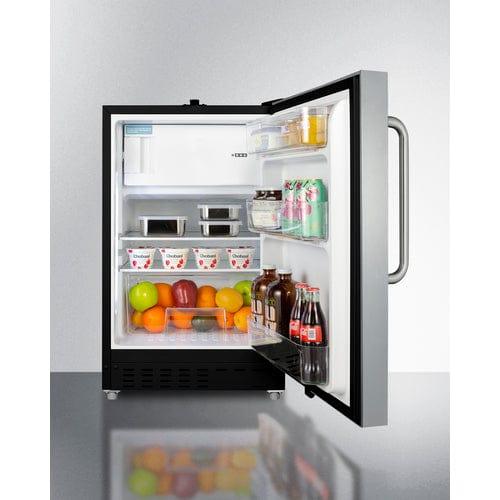

Inside, the ALRF49BCSS features an all-white interior for easy cleaning and viewing of contents. Static manual defrost operation provides efficient cooling inside the 2.68 cu.ft. interior, while the dial thermostat makes temperature management simple. An automatic LED light located toward the front of the unit attractively illuminates the interior when the door opens. Three spill-proof adjustable glass shelves offer flexible storage options for large and small items, while a pull-out crisper drawer provides storage for fruits and vegetables. Three removable door racks accommodate additional storage as needed. This unit includes a compact freezer compartment with a cover.
With its compact size and convenient features, the ALRF49BCSS is the perfect unit for offices, dormitories, and other residential settings in need of an easy-fitting refrigerator-freezer.
|
Overview
|
| Height of Cabinet |
31.75" (81 cm) |
| Height to Hinge Cap |
32.0" (81 cm) |
| Width |
20.88" (53 cm) |
| Depth |
22.5" (57 cm) |
| Depth with Handle |
25.0" (64 cm) |
| Depth with door at 90° |
40.25" (102 cm) |
| Capacity |
2.68 cu.ft. (76 L) |
| Defrost Type |
Manual |
| Door |
Stainless Steel |
| Cabinet |
Stainless Steel |
| US Electrical Safety |
ETL |
| Canadian Electrical Safety |
ETL-C |
| Energy Usage/Year |
259.0kWh/year |
| Amps |
1.1 |
| Voltage/Frequency |
115 V AC/60 Hz |
| Weight |
105.0 lbs. (48 kg) |
| Shipping Weight |
117.0 lbs. (53 kg) |
| Parts & Labor Warranty |
1 Year |
| Compressor Warranty |
5 Years |
| UPC |
761101076553 |
|
Refrigerator-Freezer
|
| Door Swing |
RHD |
| Reversible |
Yes |
| Adjustable Shelves |
Yes |
| Crisper Qty |
1 |
| Crisper Finish |
Transparent |
| Crisper Cover |
Glass |
| Interior Light |
Yes |
| Refrigerator - Interior Height |
17.5" (44 cm) |
| Refrigerator - Interior Width |
16.25" (41 cm) |
| Refrigerator - Interior Depth |
17.0" (43 cm) |
| Refrigerator - Shelf Type |
Glass |
| Refrigerator - Shelf Qty |
3 |
| Refrigerator - Full Door Shelves |
3 |
| Refrigerator - Temperature Range |
35-46º F |
| Refrigerator - Refrigerant Type |
R600a |
| Refrigerator - Refrigerant Amount |
0.92 oz. |
| Freezer - Interior Height |
5.75" (15 cm) |
| Freezer - Interior Width |
16.25" (41 cm) |
| Freezer - Interior Depth |
11.25" (29 cm) |
| Thermostat Type |
Dial |
| Refrigerant Type |
R600a |
| Refrigerant Amount |
0.92 oz. |
| High Side PSI |
180.0 |
| Low Side PSI |
80.0 |
| Level Legs |
2 |
| Compressor Step Height |
6.25" (16 cm) |
| Compressor Step Width |
16.25" (41 cm) |
| Compressor Step Depth |
6.0" (15 cm) |
| Sound Level |
32.9 dB |
| Lock |
| AC Keypad - AC powered keypad lock |
KEYPAD - Battery-powered keypad door lock |
|
| Exterior |
| LHD - Left hand door swing |
|
ADA compliant design
32" height allows easy installation under lower ADA compliant counters
Built-in capable
Front-breathing design lets you make the best use of space by installing your appliance under the counter

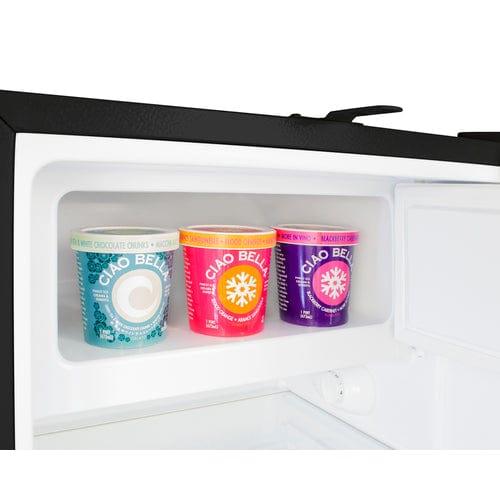

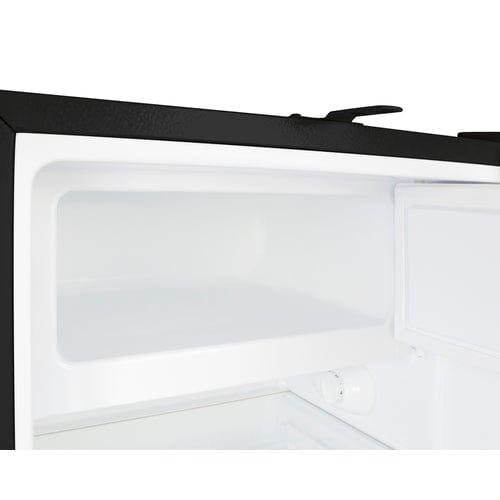

Freezer compartment
Interior freezer compartment offers convenient storage for frozen items

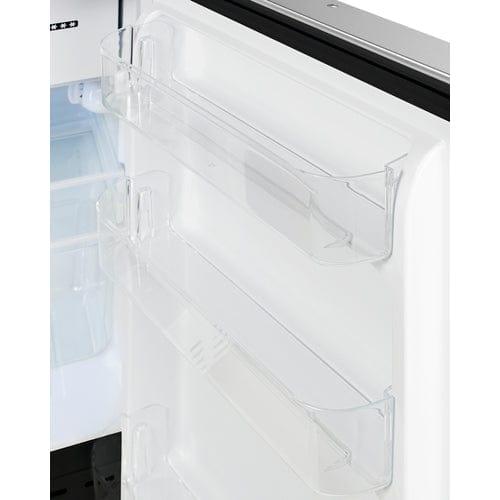

Door shelves
Three removable door racks for additional storage of larger items
Adjustable shelves
Three adjustable, spill-proof glass shelves for optimal storage in the 2.68 cu. ft. interior
Fruit and vegetable crisper
Get the longest life and best taste out of produce by storing greens in a convenient slide drawer
Adjustable thermostat
Dial thermostat located inside for easy temperature management
Reversible stainless steel door
Stainless steel, user-reversible door for added flexibility to best accommodate your setting
3" thick door
Improved insulation for an efficient performance
Professional towel bar handle
Curved handle in brushed stainless steel offers a sturdy grip with professional elegance
Factory installed lock
Lock provides added security of unit (2 keys included)
Sealed back
Space-saving design that offers easier cleanability
Right-angle plug
Design allows you to plug the unit in flush against the wall socket with no need to add extra depth
Manual defrost
Efficient performance with reliable temperature stability
Interior light
Front-located LED light ensures entire interior is lit when door opens
Fully finished stainless steel cabinet
Allows the unit to be used freestanding
100% CFC Free
Environmentally friendly design with no ozone-damaging chemicals
CARB Compliant
Environmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
