BIM182ADAIFLHD
This Summit icemaker is ADA compliant, making it perfect for any commercial or residential setting. With its 18" width, it can fit into small spaces while still producing clear ice. Easy to install and use, this icemaker is a must-have for any establishment.
Unique 18" width lets you complete any home bar with a large supply of long-lasting clear ice cubes
Summit brings proper convenience and streamlined luxury under the counter with built-in clear icemakers sized for 18 inch wide spaces.

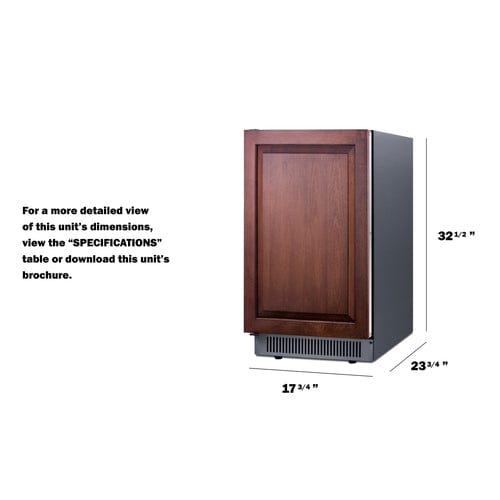

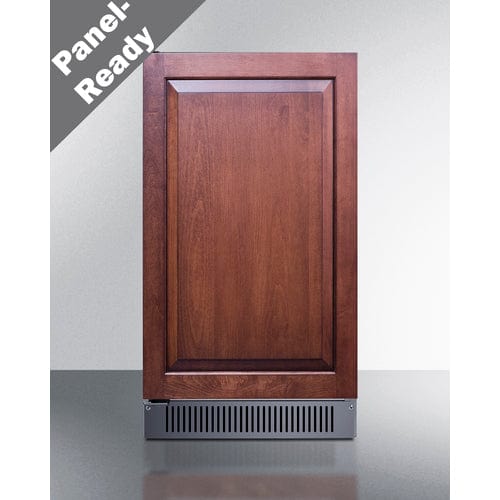

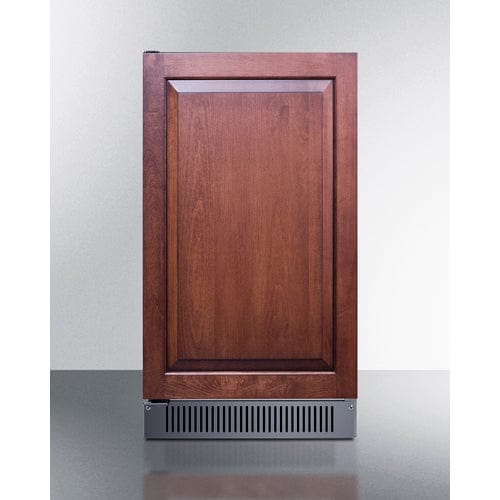

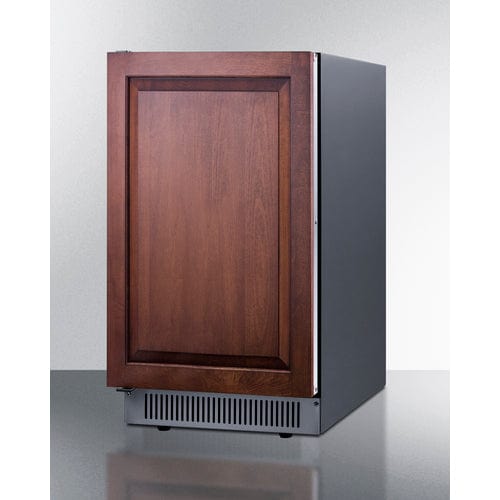

Sized just under 18 inches wide and 32.5 inches high, model BIM182ADAIFLHD features a front-breathing design for built-in installation underneath ADA-compliant counters. The height can also be raised up to 34.75 inches to accommodate more standard counters. We include a stainless steel kickplate extender to fill the gap. The door includes an integrated stainless steel frame that allows it to accept overlay panels, creating a custom look to match or complement the rest of you cabinetry (recommended panel dimensions: 28 1/16" H x 17 11/16" W at 3/4" thickness). This unit features a sealed back and right angle cord for added space savings. It comes with a left hand door swing.

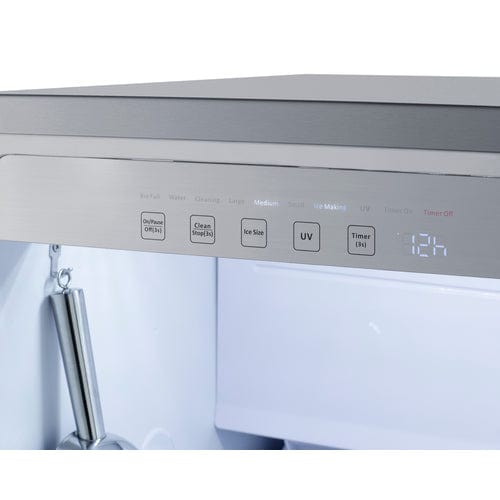

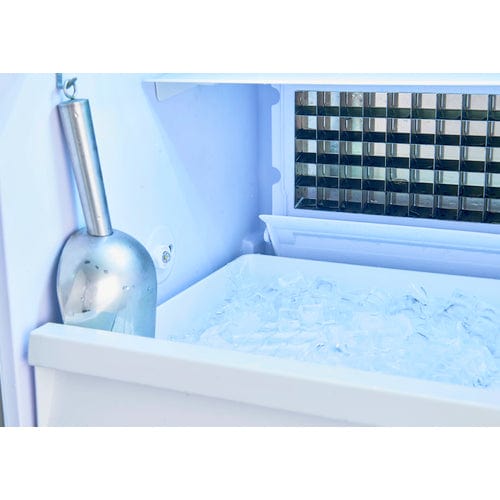

Inside, the BIM182ADAIFLHD can produce 60 lbs. of clear ice cubes ice daily. The intuitive control panel ensures ease of use. An indicator light alerts users to each step in the production process and when the bin is full. The interior features UV lighting for easy visibility and added protection against bacteria. The automatic defrost system minimizes user maintenance. This model has an internal pump and ships with the drain hose, water hose, a removable ice bucket, and ice scoop. The interior wall includes a hook to hang the scoop for added convenience.
With its unique size, user-friendly design, and large capacity, the BIM182ADAIFLHD is a great fit for various kitchen setups. For a weatherproof outdoor version, see model BIM182OSADAIFLHD.
In addition to this icemaker, Summit manufactures drain-free choices, as well as traditional 15 inch wide icemakers and a full assortment of matching 18 inch wide refrigerators, beverage centers, and wine cellars. Browse the complete lineup to complete any residential or commercial undercounter space.
Overview
|
|
---|---|
Nominal Height | 32.0" (81 cm) |
Height of Cabinet | 32.5" (83 cm) |
Nominal Width | 18.0" (46 cm) |
Width | 17.75" (45 cm) |
Depth | 23.75" (60 cm) |
Depth with door at 90° | 41.0" (104 cm) |
Defrost Type | Automatic |
Door | Panel-Ready |
Cabinet | Stainless Steel |
US Electrical Safety | ETL |
Canadian Electrical Safety | ETL-C |
Amps | 11.8 |
Voltage/Frequency | 115 V AC/60 Hz |
Weight | 95.0 lbs. (43 kg) |
Parts & Labor Warranty | 1 Year |
Compressor Warranty | 5 Years |
UPC | 761101150703 |
Icemaker
|
|
Door Swing | LHD |
Height Adjustable | Yes |
Drain Required | Yes |
Daily Ice Production | 60.0 lbs. (27 kg) |
Ice Storage Capacity | 33.0 lbs. (15 kg) |
Ice Shape | Cube |
Size of Cube | .87" x .87" . 87" |
Number of Ice Cube Sizes | 3 |
Interior Light | Yes |
Refrigerant Type | R290 |
Refrigerant Amount | 1.37 oz. |
High Side PSI | 330.0 |
Low Side PSI | 160.0 |
Interior Height | 18.75" (48 cm) |
Interior Width | 14.75" (37 cm) |
Interior Depth | 16.75" (43 cm) |
Level Legs | 4 |
Built-in undercounter icemaker ideal for installation in kitchens, wet bars, break rooms, and other settings
32.5" height allows easy installation under lower ADA compliant counters
Integrated stainless steel door frame allows you to mount full overlay panels over the door to create a custom look that can blend into cabinetry with no exposed frame (panel size: (recommended panel dimensions: 28 1/16" H x 17 11/16" W at 3/4" thickness)
Make the best use of space by installing your icemaker under the counter
Can make up to 60 lbs. of clear ice cubes in a day cycle and store up to 33 lbs. per day
This unit can be raised to 34.75", with a taller kickplate included for a seamless aesthetic
Internal pump affords more flexibility in placing the unit
Provides easy operation of the unit with indicator lights for each stage of the production process
Unit allows users to choose from small, medium, or large clear ice cubes
Reduced maintenance with auto defrost system
LED lighting automatically illuminates when the door is opened
Full illumination of the interior, with UV lighting to help kill germs and ensure safer, cleaner clear ice cubes
Interior wall includes brackets to hang for easy storage
Users can remove the ice bucket for fast and easy cleaning
Ice stays solid longer in this cold-protected bin
Allows the unit to be used freestanding
Vertically mounted stainless steel handle completes the look
Space-saving design with easier cleanability
Flat design offers added space savings by requiring no extra depth to plug the unit in
Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
Environmentally friendly design without ozone-damaging chemicals
Complies with California Health and Safety Code 116876 lead leaching requirements per NSF NSF/ANSI/CAN 61-2022 standard, as well as with lead content requirements for ‘lead free’ plumbing as defined by California, Vermont, Maryland, and Louisiana state laws and the U.S. Safe Drinking Water Act Section 1417(d) per NSF/ANSI/CAN 372-2022 standard
