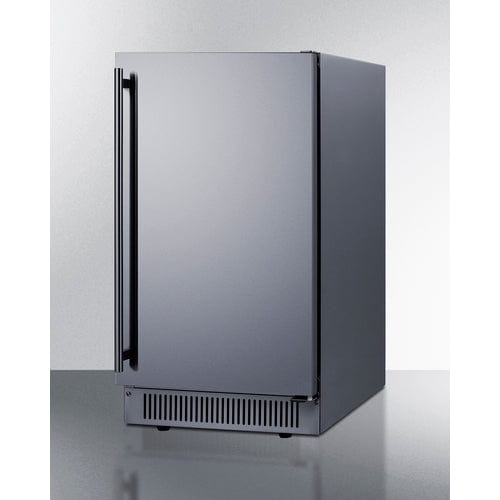

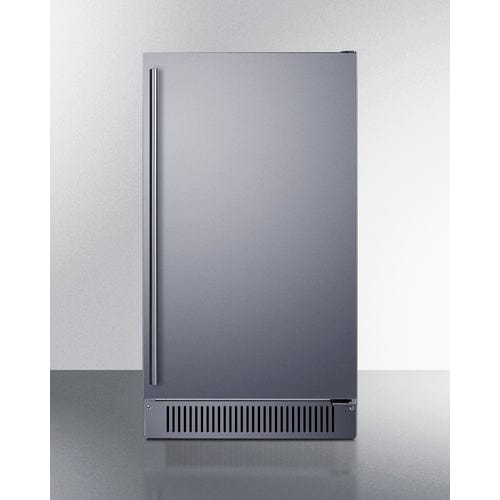

The Summit BIM182OSADA is an 18" wide clear icemaker that is ADA compliant. With its specialized features and optimal size, this icemaker is perfect for outdoor spaces, providing accessible and efficient ice-making capabilities.
Unique 18" width lets you complete any outdoor bar with a large supply of long-lasting clear ice cubes
Summit brings proper convenience and streamlined luxury under the counter with built-in indoor and outdoor clear icemakers sized for 18-inch wide spaces in outdoor kitchens.

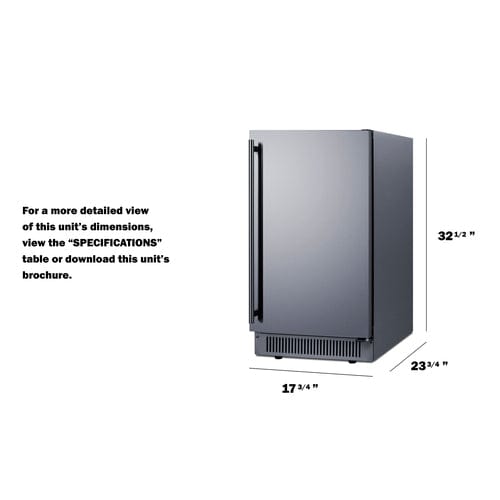

Sized just under 18 inches wide and 32.5 inches high, model BIM182OSADA features a front-breathing design for built-in installation underneath ADA-compliant counters. The height can also be raised to 34.75 inches to accommodate standard counters. We include a stainless steel kickplate extender to fill the gap. This model comes with a user-reversible door to best suit your setting. A pro-style handle is included. The complete stainless steel exterior and sealed rear is specially constructed to hold up to the outdoor elements.
Inside, the BIM182OSADA shows can produce 60 lbs. of clear ice cubes ice daily. The intuitive control panel ensures ease of use. An indicator light alerts users to each step in the production process and when the bin is full. The interior features UV lighting for easy visibility and added protection against bacteria. The automatic defrost system minimizes user maintenance. This model has an internal pump and ships with a drain hose, water hose, removable ice bucket, and ice scoop. The interior wall includes a hook to hang the scoop for added convenience.
With its unique size, user-friendly design, and large capacity, the BIM182OSADA is a great fit for various kitchen setups. For a weatherproof outdoor version in a standard height, see model BIM182OS. For a panel-ready version, see model BIM182ADAIF.
In addition to this icemaker, Summit manufactures drain-free choices, as well as traditional 15-inch wide icemakers and a full assortment of matching 18-inch wide refrigerators, beverage centers, and wine cellars. Browse the complete lineup to complete any residential or commercial undercounter space.
|
Overview
|
| Nominal Height |
32.0" (81 cm) |
| Height of Cabinet |
32.5" (83 cm) |
| Nominal Width |
18.0" (46 cm) |
| Width |
17.75" (45 cm) |
| Depth |
23.75" (60 cm) |
| Depth with Handle |
25.25" (64 cm) |
| Depth with door at 90° |
41.0" (104 cm) |
| Defrost Type |
Automatic |
| Door |
Stainless Steel |
| Cabinet |
Stainless Steel |
| US Electrical Safety |
ETL |
| Canadian Electrical Safety |
ETL-C |
| Amps |
11.8 |
| Voltage/Frequency |
115 V AC/60 Hz |
| Parts & Labor Warranty |
1 Year |
| Compressor Warranty |
5 Years |
| UPC |
761101108179 |
|
Icemaker
|
| Door Swing |
RHD |
| Reversible |
Yes |
| Height Adjustable |
Yes |
| Drain Required |
Yes |
| Daily Ice Production |
60.0 lbs. (27 kg) |
| Ice Storage Capacity |
33.0 lbs. (15 kg) |
| Ice Shape |
Cube |
| Size of Cube |
.87" x .87" . 87" |
| Number of Ice Cube Sizes |
3 |
| Interior Light |
Yes |
| Refrigerant Type |
R290 |
| Refrigerant Amount |
1.37 oz. |
| High Side PSI |
330.0 |
| Low Side PSI |
160.0 |
| Interior Height |
18.75" (48 cm) |
| Interior Width |
14.75" (37 cm) |
| Interior Depth |
16.75" (43 cm) |
| Level Legs |
4 |
| Exterior |
| LHD - Left hand door swing |
|
Outdoor 18" Wide Clear Icemaker
Built-in undercounter icemaker ideal for installation in outdoor kitchens
Weatherproof design
Durable stainless steel construction for safe installation in outdoor spaces
ADA-compliant
32.5" height allows easy installation under lower ADA compliant counters
Built-in capable
Make the best use of space by installing your icemaker under the counter
60 lb. production capacity
Can make up to 60 lbs. of clear ice cubes in a day cycle and store up to 33 lbs. per day
Height adjustable
This unit can be raised to 34.75", with a taller kickplate included for a seamless aesthetic
Built-in pump
Internal pump affords more flexibility in placing the unit

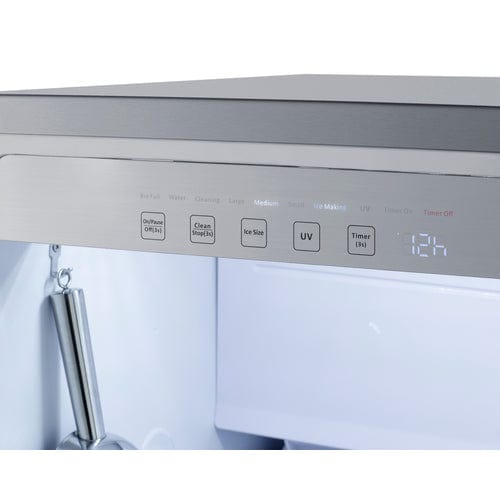

Touch control panel
Provides easy operation of the unit with indicator lights for each stage of the production process
Ice selection
Unit allows users to choose from small, medium, or large clear ice cubes
Automatic defrost
Reduced maintenance with auto defrost system
Interior light
LED lighting automatically illuminates when the door is opened
Interior UV light
Full illumination of the interior, with UV lighting to help kill germs and ensure safer, cleaner clear ice cubes
Ice scoop included
Interior wall includes brackets to hang for easy storage
Removable bin
Users can remove the ice bucket for fast and easy cleaning
Insulated storage bin
Ice stays solid longer in this cold-protected bin
Reversible stainless steel door
User-reversible door swing for flexible placement
Fully finished stainless steel cabinet
Allows the unit to be used freestanding
Pro style handle
Vertically mounted stainless steel handle completes the look
Sealed back
Space-saving design with easier cleanability
Right angle plug
Flat design offers added space savings by requiring no extra depth to plug the unit in
CARB compliant
Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
100% CFC free
Environmentally friendly design without ozone-damaging chemicals
Lead-free certified
Complies with California Health and Safety Code 116876 lead leaching requirements per NSF NSF/ANSI/CAN 61-2022 standard, as well as with lead content requirements for ‘lead free’ plumbing as defined by California, Vermont, Maryland, and Louisiana state laws and the U.S. Safe Drinking Water Act Section 1417(d) per NSF/ANSI/CAN 372-2022 standard
