Meets NSF-7 standards for commercial storage

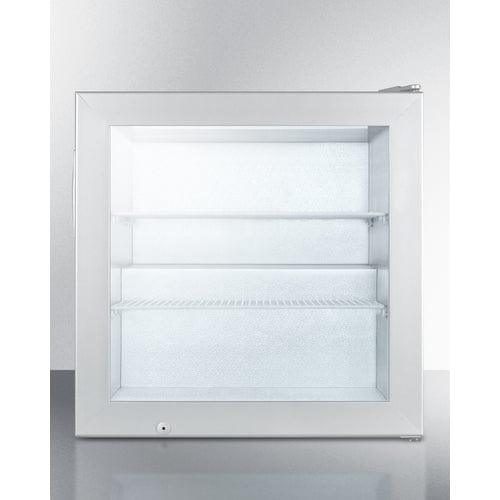

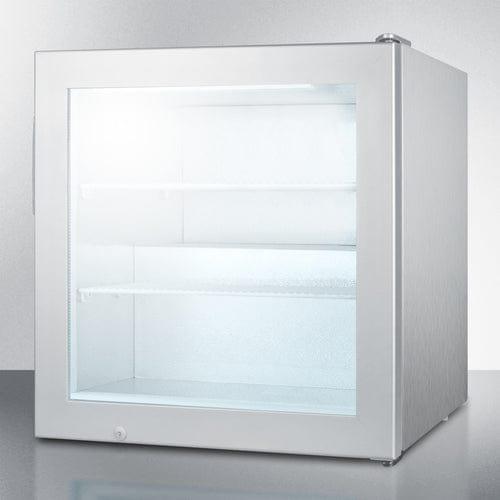

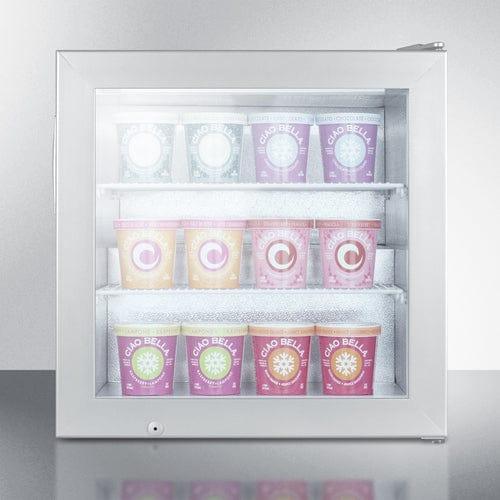

SUMMIT SCFU386 is a compact display freezer specially designed to promote impulse sales of select frozen goods.
This manual defrost unit comes fully featured for convenient use in commercial settings. A self-closing glass door helps to protect items from accidents, with an LED light providing an attractive presentation. Two wire shelves offer flexible storage and a factory installed lock offers security when needed. This model has a stainless steel wrapped cabinet to add to the professional look.
The SCFU386 is ETL-S listed to NSF standards for use in commercial settings. With its compact size and special display features, this model is ideal for storing and displaying sorbet, water ice, and other frozen treats ideally served at 0ºF. For this unit with a stainless steel cabinet, see the SCFU386CSS.
|
Overview
|
| Height of Cabinet |
24.0" (61 cm) |
| Height to Hinge Cap |
24.5" (62 cm) |
| Width |
23.38" (59 cm) |
| Depth |
20.63" (52 cm) |
| Depth with door at 90° |
42.0" (107 cm) |
| Capacity |
2.0 cu.ft. (57 L) |
| Defrost Type |
Manual |
| Door |
Glass |
| Cabinet |
Stainless Steel |
| US Electrical Safety |
ETL |
| Canadian Electrical Safety |
ETL-C |
| Sanitation |
ETL-S |
| Amps |
4.0 |
| Voltage/Frequency |
115 V AC/60 Hz |
| Weight |
93.0 lbs. (42 kg) |
| Shipping Weight |
150.0 lbs. (68 kg) |
| Parts & Labor Warranty |
1 Year |
| Compressor Warranty |
5 Years |
| UPC |
761101052816 |
|
Freezer
|
| Door Swing |
RHD |
| Reversible |
No |
| Interior Height |
18.0" (46 cm) |
| Interior Width |
18.75" (48 cm) |
| Interior Depth |
15.38" (39 cm) |
| Shelf Type |
Wire |
| Shelf Qty |
2 |
| Adjustable Shelves |
Yes |
| Thermostat Type |
Dial |
| Interior Light |
Yes |
| Fan Type |
Interior |
| Refrigerant Type |
R600a |
| Refrigerant Amount |
1.4 oz. |
| High Side PSI |
280.0 |
| Low Side PSI |
90.0 |
| Compressor Step Height |
8.25" (21 cm) |
| Compressor Step Width |
18.75" (48 cm) |
| Compressor Step Depth |
7.0" (18 cm) |
| Temperature Range |
-4 to 5°F |
| Exterior |
| Latch - Factory-installed door latch requires manual release to open unit |
Alarm/Thermometer - Factory-installed alarm with external temperature readout |
| PH - Probe Hole |
FA Front - Fan assist |
| FA Rear - Fan assist |
DL2B - Factory installed NIST calibrated digital data logger (DDL) |
|
| Door |
| T1 Door Tint |
T1S Door Tint |
| T2 Door Tint |
T3 Door Tint |
| T4 Door Tint |
|
Commercially approved
ETL-S listed to NSF standards for commercial use
Factory installed lock
Keyed security for a secure interior
Self-closing door
Ideal for busy commercial settings, where customers and staff don't always have the chance to ensure the door is closed
Fully finished stainless steel cabinet
304 grade stainless steel for an attractive and durable finish
LED lighting
Switchable light illuminates whole interior
Glass door
Provides a full display of stored contents
Removable shelves
Two wire shelves included
Adjustable thermostat
Rear mounted to prevent accidental adjustments
Manual defrost
Static cooling system for improved temperature stability
Designed to operate at 0ºF
Temperature range: -4 to 5ºF
100% CFC Free
Environmentally friendly design with no ozone-damaging chemicals
