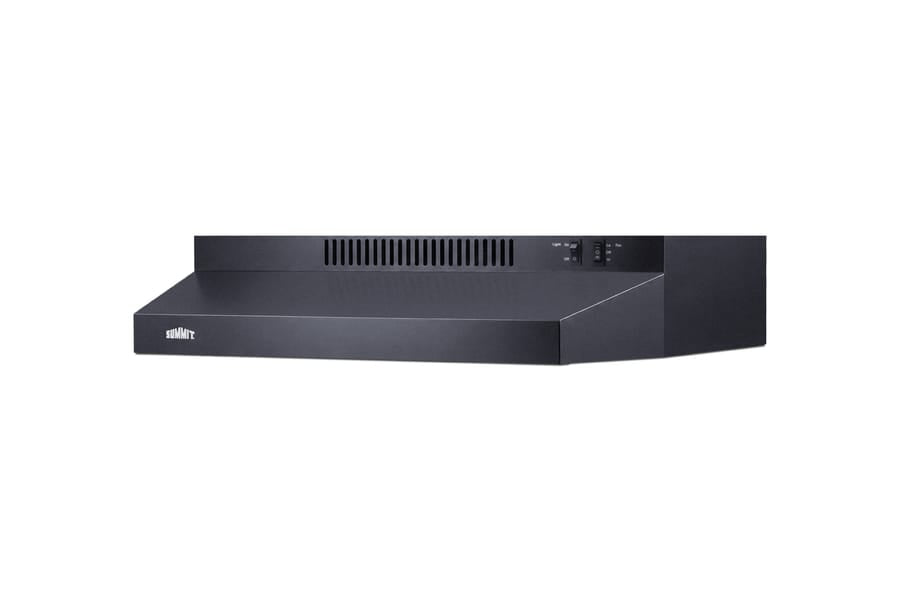

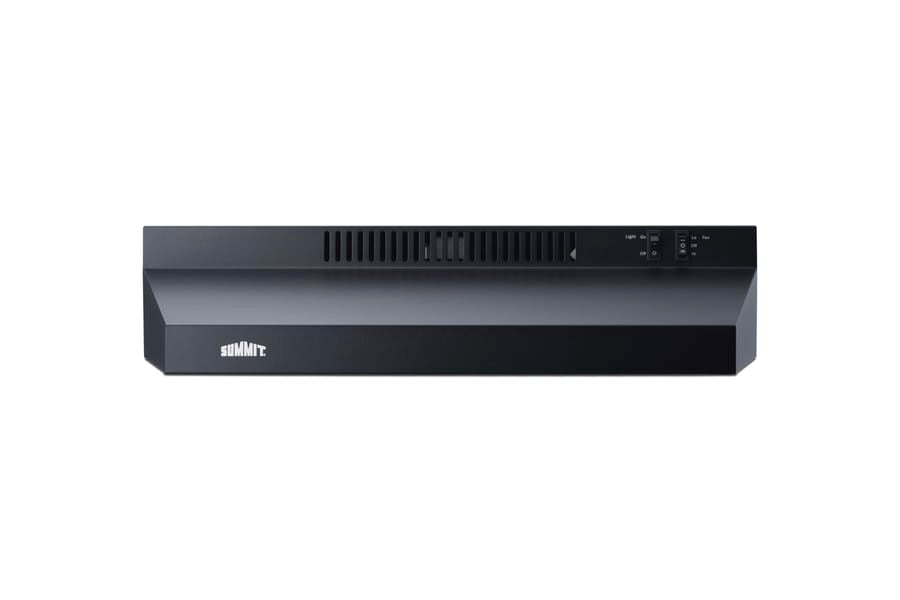

Summit H24RBADA | 24" Under Cabinet Convertible Range Hood | ADA
Summit's under cabinet convertible range hoods offer versatile ventilation solutions for every kitchen space.
Model H24RB is a 24" wide range hood ideal for apartments and other smaller kitchens. It comes in a black matte finish. We include a pre-installed light bulb to illuminate your cooking surface. The 2-speed fan is easily managed by a rocker switch with a high and low ventilation setting.

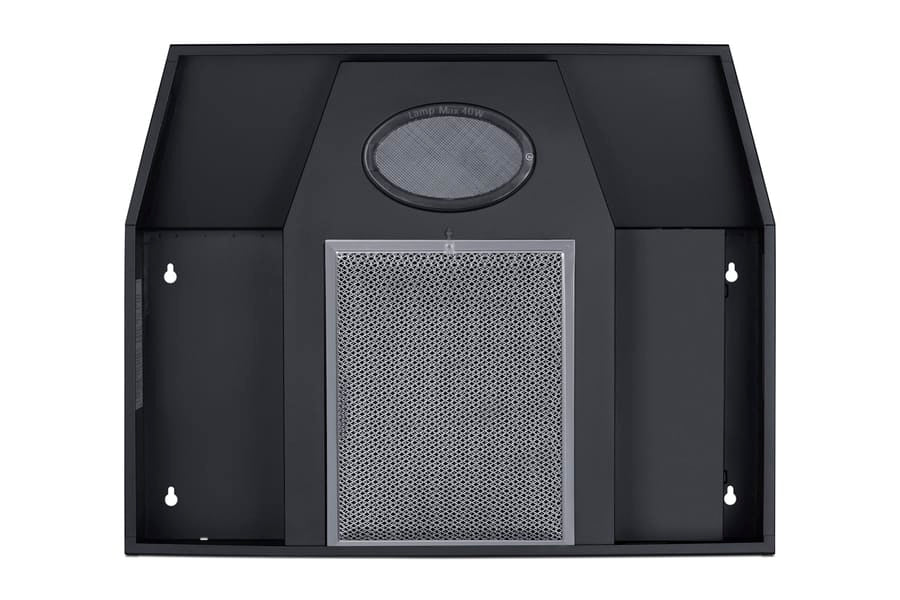

This hood is convertible for horizontal or vertical ducted ventilation or ductless/recirculating ventilation where no exhaust connection to the outside is available. It ships ready for standard 3 1/4" x 10" rectangular ducting, but it can be used with a round 6" or 7" duct with the addition of a transition (not included). We include a metal mesh filter to catch grease and a charcoal filter to absorb smoke and odors when using in recirculating applications. This unit does not include a power cord and is designed to be hard-wired by a licensed professional.
Additional convertible range hoods are available in 18", 20", 30", and 36" sizes, as well as additional colors and ADA compliant options. We also manufacture an extensive selection of 24" wide ranges and cooktops, providing complete kitchen solutions at incredible value.
SPECIFICATIONS
|
Overview
|
|
|---|---|
| Nominal Height | 6.0" (15 cm) |
| Height of Cabinet | 5.13" (13 cm) |
| Nominal Width | 24.0" (61 cm) |
| Width | 23.88" (61 cm) |
| Nominal Depth | 19.0" (48 cm) |
| Depth | 18.63" (47 cm) |
| Cabinet | Black |
| US Electrical Safety | ETL |
| Canadian Electrical Safety | ETL-C |
| Voltage/Frequency | 115 V AC/60 Hz |
| Weight | 11.0 lbs. (5 kg) |
| Parts & Labor Warranty | 1 Year |
| UPC | 761101085173 |
|
Range Hood
|
|
| Venting | Convertible |
| Controls | Dial |
| Light | Yes |
| Number of Lights | 1 |
| Light Type | Incandescent |
| Number of Fan Speeds | 2 |
| Duct Shape | 3"1/4" x 10" rectangular or 6/7" round with transition |
FEATURES
Versatile design ideal for smaller kitchen spaces
Low profile design offers a classic way to finish your kitchen
Sized for use over 24 inch cooking surfaces (additional sizes available)
Can be used for ducted venting to the outside or recirculating ventilation where no external venting is possible
Ships pre-set for recirculating mode but can be converted for ducted use in less than a minute
Ships for standard 3 1/4" x 10" vertical or horizontal exterior venting and convertible to a 6" or 7" round vertical venting with a transition (not included)
Modern black matte exterior
High and low setting to allow proper ventilation of your kitchen as needed
Includes an incandescent bulb to help illuminate your cooking surface
Easy installation and detaching allows you to properly clean the filter for optimum efficiency
Helps absorb grease and odors when using the hood in recirculating mode

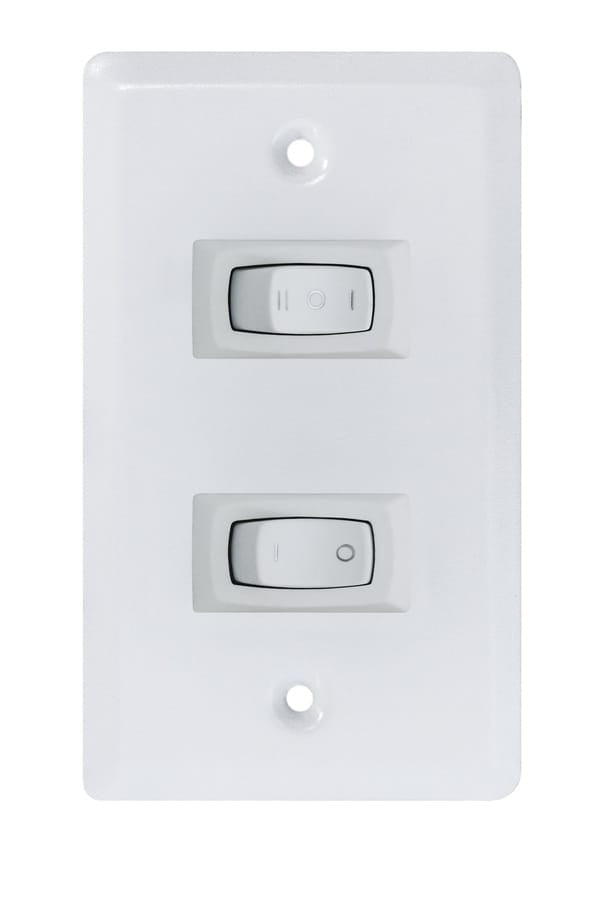

Front-located on/off and high/low switches make it easy to manage the light and fan
Designed to be hard-wired by a licensed professional
