This Summit wine cellar is designed for commercial use, with a 24" width and a single temperature zone ideal for storing and preserving wines. Keep your collection at the optimum temperature with this built-in cellar, perfect for restaurants and bars.
Stainless steel shelves designed to store champagne and sparkling wine bottles at a slight angle for the perfect display in commercial settings
Summit Commercial offers a unique selection of wine cellars designed for optimum storage and bottle presentation.

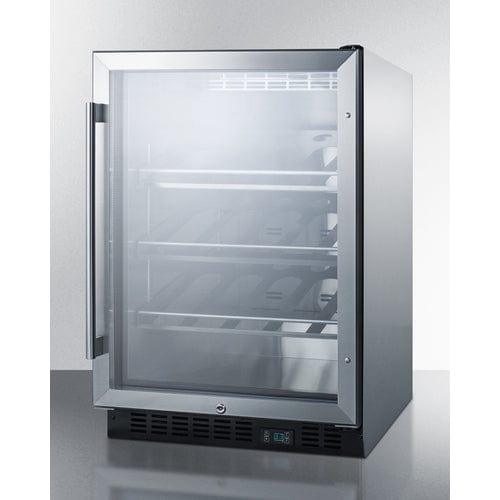

The SCR610BLCHCSS is an undercounter wine cellar built to meet NSF-7 commercial standards. The slim 24 inch footprint takes up minimum floor space, with large 5 cu.ft. interior. This unit features a front-breathing design for built-in installation, with a stainless steel wrapped cabinet that also allows freestanding use. The reversible stainless steel trimmed glass door includes a pro style handle and factory-installed lock for added security.

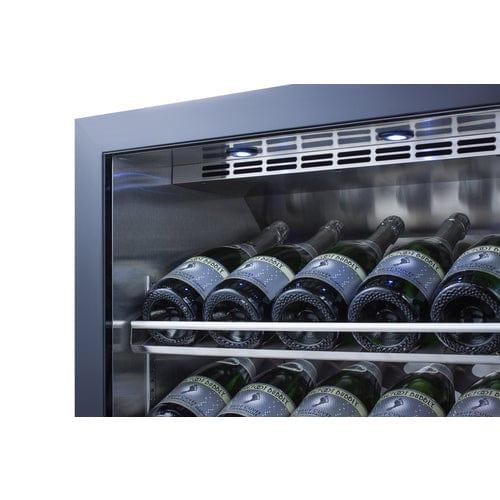

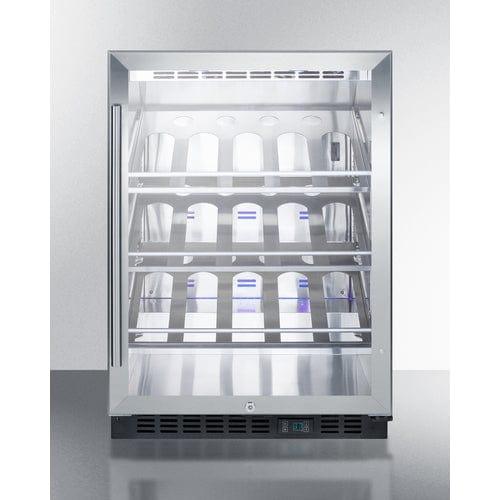

Inside, the SCR610BLCHCSS includes stainless steel shelving specially designed to hold champagne and sparkling wine bottles at a slight angle, providing a full display of the label. The interior walls and floor are constructed from stainless steel for lasting durability in busy commercial settings. This unit is illuminated through the rear walls with efficient LED lighting in a striking blue hue. Digital controls make it easy to manage the interior.
With its unique design and commercial grade construction, the SCR610BLCHCSS is the perfect undercounter option for storing and displaying larger bottles. Additional choices are available for outdoor use, and in larger sizes for higher bottle capacity. Browse our website for more options.
|
Overview
|
| Height of Cabinet |
34.0" (86 cm) |
| Width |
23.63" (60 cm) |
| Depth |
23.5" (60 cm) |
| Depth with Handle |
25.38" (64 cm) |
| Depth with door at 90° |
45.5" (116 cm) |
| Capacity |
5.0 cu.ft. (142 L) |
| Bottles |
20 bottles |
| Defrost Type |
Automatic |
| Door |
Glass |
| Cabinet |
Stainless Steel |
| US Electrical Safety |
ETL |
| Canadian Electrical Safety |
ETL-C |
| Sanitation |
ETL-S |
| Amps |
0.8 |
| Voltage/Frequency |
115 V AC/60 Hz |
| Weight |
150.0 lbs. (68 kg) |
| Shipping Weight |
150.0 lbs. (68 kg) |
| Parts & Labor Warranty |
1 Year |
| Compressor Warranty |
5 Years |
| UPC |
761101065120 |
|
Wine Cellar
|
| Number of Zones |
1 |
| Door Swing |
RHD |
| Reversible |
Yes |
| Shelf Type |
Steel |
| Shelf Qty |
3 |
| Thermostat Type |
Digital |
| Interior Light |
Yes |
| Fan Type |
Interior and Exterior |
| Refrigerant Type |
R600a |
| Refrigerant Amount |
0.99 oz. |
| High Side PSI |
270.0 |
| Low Side PSI |
105.0 |
| Interior Height 1 |
25.0" (64 cm) |
| Interior Width 1 |
19.38" (49 cm) |
| Interior Depth 1 |
17.38" (44 cm) |
| Compressor Step Height |
3.75" (10 cm) |
| Compressor Step Width |
19.38" (49 cm) |
| Compressor Step Depth |
4.63" (12 cm) |
| Temperature Range |
36 to 43ºF |
| Sound Level |
37.4 dB |
| Door |
| T4 Door Tint |
T3 Door Tint |
| T2 Door Tint |
T1S Door Tint |
| T1 Door Tint |
|
| Exterior |
| LHD - Left hand door swing |
SSK - Stainless steel kickplate |
|
Commercially approved
ETL-S listed to NSF-7 Standards for use in commercial establishments
Built-in capable
Make the best use of space by installing this unit under the counter and flush with other cabinetry
Champagne racks
Stainless steel shelves are specially sized to store wider wine and champagne bottles

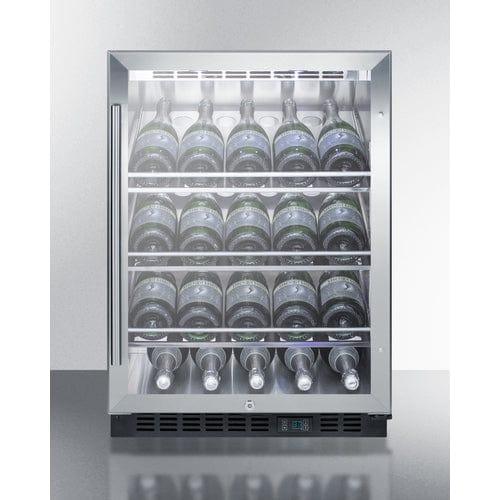

Bottle display
Cantilevered clips are pre-installed so that the shelving can be installed at a slight angle to provide a display of the bottle labels. Clips can be adjusted to a flat position to accommodate more shelves
Interior LED lighting
Fully lit interior with a striking blue LED hue, providing an attractive and energy efficient view
Double pane tempered glass door
Stainless steel trimmed glass door offers a full display of stored items
Stainless steel interior
Walls are constructed from stainless steel for added strength and easy cleanup
Factory installed lock
Keyed lock for a secure interior
Digital thermostat
Intuitive digital controls ensure easy temperature management
Reversible door
User-reversible door swing allows for more flexibility in placing the unit
Professional handle
Stainless steel handle completes the professional look
Automatic defrost
Reduced user maintenance with automatic defrost
CARB Compliant
Environmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
Fan-forced cooling
Internal fan ensures the interior is evenly cooled from top to bottom
Sealed back
Space saving design with easier cleanability
Stainless steel wrapped cabinet
Allows the unit to be used freestanding
100% CFC free
Environmentally friendly design without ozone-damaging chemicals
