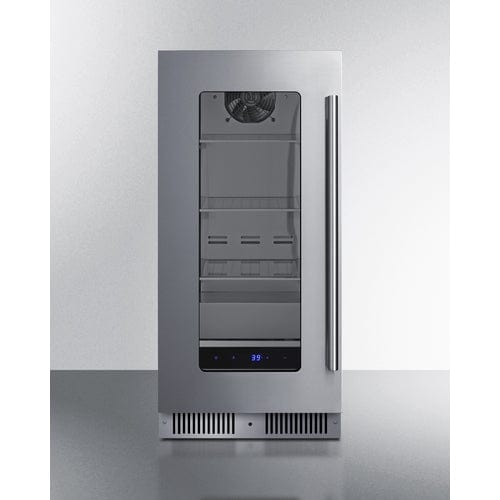

This Summit 15" wide built-in beverage center offers a large storage capacity and a sleek design that seamlessly integrates into your kitchen. The unit features adjustable shelves, digital temperature control and a factory installed lock. Keep your beverages cool and organized with this top-of-the-line beverage center.
Shallow 18" depth for an easy fit in island kitchens, wet bars, and other undercounter spaces with shallower cutouts
Summit's shallow-depth series of built-in undercounter refrigeration brings full functionality to kitchen islands, wet bars, and other settings with space limitations.
The SDHG1533LHD is a 15" wide beverage refrigerator, sized at just 18" deep. It comes in a 34" height to fit standard undercounter spaces. The front-breathing system allows built-in installation, while the fully finished black cabinet also allows freestanding use. Seamless, stylish stainless steel trim blends smoothly into the double pane tempered glass door for an elevated look, with a professional stainless steel handle included. This unit has a sealed rear and right angle cord for a better fit. The fully articulating European hinge design ensures smoother opening. A lock is located in the kickplate for added convenience and security. This unit comes with a left-hand door swing. For a right-hand version, see the SDHG1533.
The unit's interior features stainless steel construction for improved durability and sanitation. Fan-forced cooling ensures even temperature distribution and fast temperature recovery. This unit includes an LED strip on each side of the interior cabinet, with dimmable settings in a gentle white hue that lets you create the perfect display conditions. Glass shelves ensure flexible storage to accommodate any size. The angled digital thermostat makes temperature readout and management easy and intuitive, with indicator lights showing when the interior is ideal for chilling beverages between 36°F and 43°F.
Additional features include an open-door alarm, a high-temperature alarm, and a Sabbath mode setting that turns off some electrical elements for up to 96 hours during observances.
The SDHG1533LHD is ETL-S listed to NSF-7 commercial standards but can also be used in the home. Create a matching set by pairing this with our SDHW1532 wine cellar. This unit comes with a left-hand door swing. For a right-hand version, see the SDHG1533.
Alternative 18" deep choices are available in 15", 19", and 24" widths, including outdoor refrigerators, refrigerator drawers, and more. For a panel-ready version, see model SDHG1533PNRLHD.
|
Overview
|
| Nominal Height |
34.0" (86 cm) |
| Height of Cabinet |
33.75" (86 cm) |
| Nominal Width |
15.0" (38 cm) |
| Width |
14.75" (37 cm) |
| Nominal Depth |
18.0" (46 cm) |
| Depth |
18.0" (46 cm) |
| Depth with Handle |
19.75" (50 cm) |
| Depth with door at 90° |
32.63" (83 cm) |
| Capacity |
1.9 cu.ft. (54 L) |
| Bottles |
18 bottles |
| Defrost Type |
Frost-Free |
| Door |
Glass |
| Cabinet |
Black |
| US Electrical Safety |
ETL |
| Canadian Electrical Safety |
ETL-C |
| Sanitation |
ETL-S |
| Energy Usage/Year |
270.0kWh/year |
| Amps |
1.0 |
| Voltage/Frequency |
115 V AC/60 Hz |
| Weight |
86.0 lbs. (39 kg) |
| Parts & Labor Warranty |
1 Year |
| Compressor Warranty |
5 Years |
| UPC |
761101107820 |
|
Refrigerator Features
|
| Sabbath Mode |
Yes |
| Door Swing |
LHD |
| Shelf Type |
Glass |
| Shelf Qty |
3 |
| Adjustable Shelves |
Yes |
| Thermostat Type |
Digital |
| Fan Type |
Interior and Exterior |
| Refrigerant Type |
R600a |
| Refrigerant Amount |
0.85oz. |
| High Side PSI |
270.0 |
| Low Side PSI |
105.0 |
| Level Legs Qty |
4 |
| Interior Light |
Yes |
| Temperature Range |
36°F to 43°F |
| Sound Level |
33.5 dB |
|
Dimensions
|
| Interior Height |
26.0" (66 cm) |
| Interior Width |
10.63" (27 cm) |
| Interior Depth |
12.25" (31 cm) |
| Compressor Step Height |
3.75" (10 cm) |
| Compressor Step Width |
10.63" (27 cm) |
| Compressor Step Depth |
5.0" (13 cm) |
| Door |
| T1 Door Tint |
T2 Door Tint |
| T3 Door Tint |
T4 Door Tint |
| T1S Door Tint |
|
15" Wide Beverage Center
Undercounter glass door beverage refrigerator for residential or commercial use
18" depth
Unique 18" depth is ideal for wet bars, island kitchens, and other undercounter areas with limited footprint space
Built-In capable
Front-breathing design lets you make the best use of space by installing your appliance under the counter
Commercially approved
ETL-S listed to NSF-7 Standards for use in commercial establishments
Double pane tempered glass door
Elegant design offers a clear but protected view of your interior
Seamless stainless steel door trim
Glass is framed by with a flush one-piece stainless steel trim for an elevated look
Fully articulating European style hinge
Smoother opening and a better fit with an integrated European hinge
Factory installed lock
Keyed lock for a secure interior (2 keys included)
Professional handle
Stainless steel handle completes the look
Stainless steel interior
Walls and floor are constructed from stainless steel for added strength and easy cleanup
Frost-free operation
No-frost operation for minimum user maintenance
Digital controls
Easy-to-use digital controls allow for precise temperature settings, which is crucial for maintaining the ideal storage temperature
Ideal temperature range
The unit's temperature range of 36°F to 43°F is ideal for chilling beverages
Angled thermostat
Thermostat’s unique internal position allows for precise temperature readouts and easier temperature management
Dimmable LED light
Efficient and attractive presentation with white LED lighting strips located on each side of the cabinet that can be adjusted between three levels of brightness
Open door alarm
Alarm sounds if the door is left open for more than 60 seconds
High/low temperature alarm
Audible alarm sounds if the interior temperature rises out of set range
Internal fan
Fan-forced cooling ensures fast temperature recovery and that the unit is evenly cooled from top to bottom
Sabbath mode
Optional setting lets you disable the lighting and alarm for up to 96 hours during periods of observance
Temperature memory function
Unit will retain its last settings when power is restored in the event of power loss
Adjustable glass shelves
Spill-proof shelving for easy cleanup and flexible storage
Left hand door swing
For this unit with a standard right-hand door swing, see model SDHG1533
Fully finished black cabinet
Allows the unit to be used freestanding
Sealed back
Space-saving design with no exposed coils that offers easier cleanability
Right angle plug
Design allows you to plug the unit in flush against the wall socket with no need to add extra depth
Quiet operation
Runs under 34 dB for a quiet performance that won't interrupt your conversation
100% CFC free
Environmentally friendly design with no ozone-damaging chemicals
CARB compliant
Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
