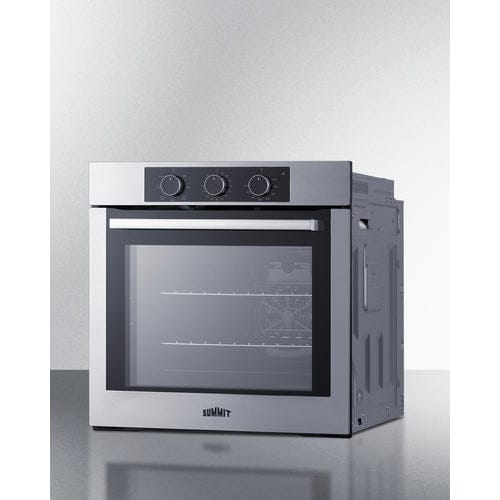

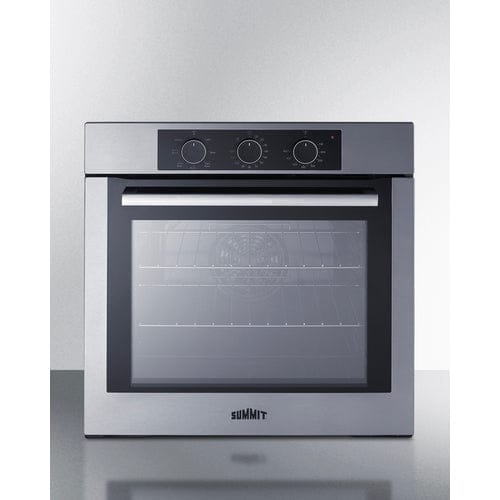

Summit SEW2401 | 24" Wide Electric Wall Oven
Efficient design compatible with a 20 amp circuit, ideal for kitchens with limited power
Summit helps enhance small kitchen functionality with fully featured electric wall ovens that offer cooking flexibility in spaces with power limitations.
Model SEW2401 is a 208-240V electric wall oven with convection designed for built-in installation in 23" H x 22.25" W x 24" D cutouts. It utilizes lower amp operation (11.9 to 13.7 amps), allowing use with a 20-amp circuit. Professional installation is required. When installed at the proper height, this unit complies with ADA accessibility guidelines. Brushed stainless steel look trim, a triple-paned glass window, and a professional handle create a modern look, while analog controls offer simple and intuitive operation.
Inside, the SEW2401 includes an oven light for easier monitoring of your cooking. To better accommodate dishes of different sizes, this unit features two gliding wire racks with brakes that can be placed at five rack positions. We also include a full-width baking pan. The flat bottom and 2.86 cu.ft. interior can hold larger cookware and support full-sized meals (such as turkeys) to maximize cooking capacity. This unit has a removable oven door for easier cleaning and maintenance.
The SEW2401 offers a range of heating functions to cover virtually all of your cooking needs. The analog controls are easy to use, with specialty settings for baking, broiling, convection baking, convection broiling, convection roasting, and defrosting (fan only). The dial timer function allows you to set a cooking time for up to 120 minutes.
With its premium features, modern style, and ideal size, the SEW2401 is the perfect choice for space-challenged kitchens looking to maintain full cooking capacity in a slimmer footprint. For compatible cooktops, browse the full Summit selection.
SPECIFICATIONS
|
Overview
|
|
|---|---|
| Height of Cabinet | 23.38" (59 cm) |
| Width | 23.38" (59 cm) |
| Depth | 23.25" (59 cm) |
| Depth with Handle | 25.13" (64 cm) |
| Depth with door at 90° | 42.25" (107 cm) |
| Capacity | 2.86 cu.ft. (81 L) |
| Door | Glass/SS |
| Cabinet | - |
| US Electrical Safety | ETL |
| Canadian Electrical Safety | ETL-C |
| Amps | 13.9 |
| Voltage/Frequency | 220 V AC/60 Hz |
| Weight | 93.0 lbs. (42 kg) |
| Parts & Labor Warranty | 1 Year |
| UPC | 761101145099 |
|
Electric Walloven
|
|
| Controls | Dial |
| Oven Light | Yes |
| Cooking Timer | Yes |
| Temperature Range | 150-500°F |
| Cleaning Type | Manual |
| Oven Rack Qty | 2 |
| Oven Window | Yes |
| Interior Height | 14.75" (37 cm) |
| Interior Width | 18.75" (48 cm) |
| Interior Depth | 17.25" (44 cm) |
| Cutout Height | 23.0" (58 cm) |
| Cutout Width | 22.25" (57 cm) |
| Cutout Depth | 24.0" (61 cm) |
FEATURES
24" wide electric wall oven for built-in installation in residential kitchens
Designed for installation in cabinetry or under a counter; cutout dimensions:23" H x 22.25" W x 24" D
11.9 to 13.7 amp operation allows use with a 20 amp circuit, ideal for homes with limited power

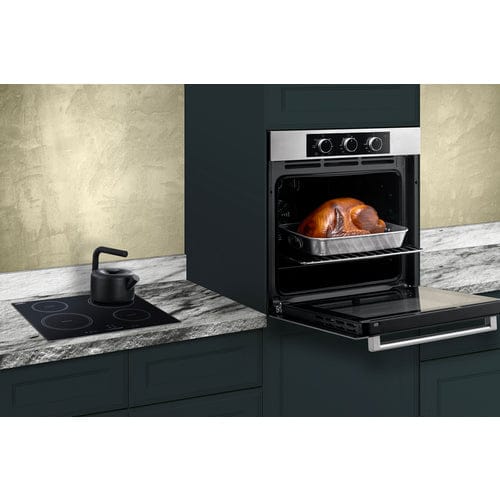

Spacious 2.86 cu.ft. interior to fit an assortment of medium to large dishes
When installed in accordance with section 804.6 of the ADA Standards for Accessible Design, this unit is ADA-compliant
Door is constructed from brushed stainless steel for modern luxury built to last

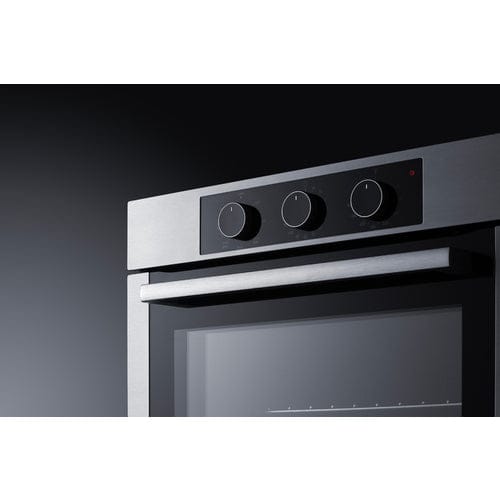

Classic analog controls for intuitive cooking

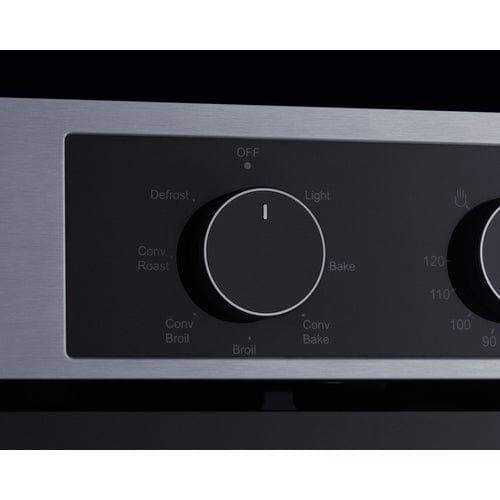

Settings include bake, convection bake, broil, convection broil, defrost, and convection roast
Adds a convection fan during the baking process to circulate heated air for a more even heat distribution
Combines the broil process with convection fan for even heating
Standard heating via upper and lower elements with a range of 150 to 500ºF
Direct heating ideal for thick cuts of meat, fish, and poultry
No-heat function will let the fan run for quicker and efficient thawing of frozen foods
Dial timer can be set up to 120 minutes and will automatically turn the oven off when it reaches 0
Triple pane glass offers a full view of your interior, letting you monitor cooking without opening the door
Stays on during the cooking process so you can observe your progress at a glance

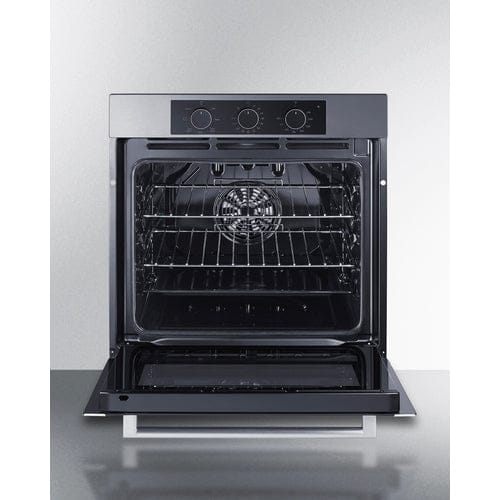

Two wire racks with safety brakes included, with several glide positions to accommodate a variety of sizes
Full-width porcelain tray for cooking convenience
Door can be removed in a few simple steps as needed for full access of the interior and easier maintenance
Sleek handle in brushed stainless steel offers an attractive look that matches many popular styles of kitchen cabinetry
Requires professional hardwired installation (cord not included)
