Shallow depth design ideal for small-spaced commercial and residential settings
Summit's shallow depth series of built-in undercounter refrigeration includes ENERGY STAR certified choices for improved efficiency in modern style.

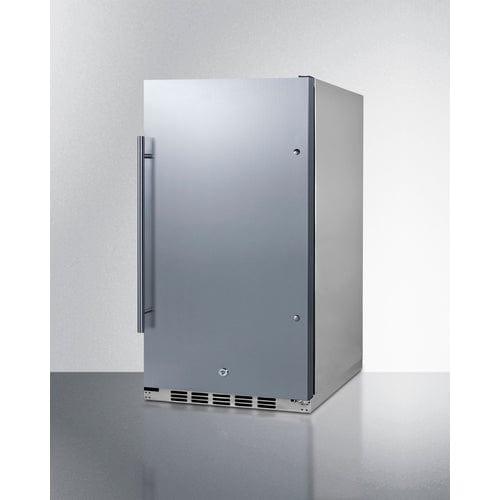

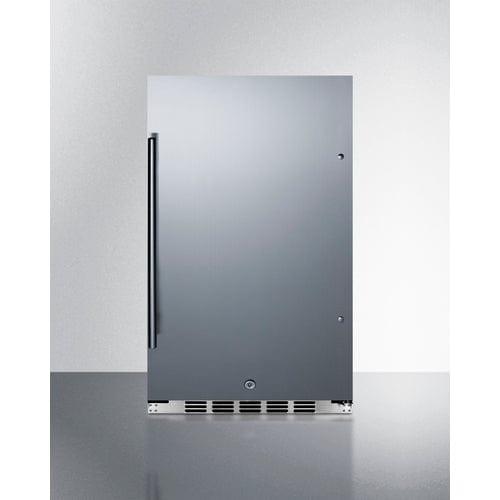

The FF195H34CSS features a versatile design that meets NSF-7 and UL-471 commercial standards but is also approved for residential use. Sized at just 19 inches wide and 17.25 inches deep, it features a stainless steel cabinet with a sealed back for easy cleaning of the unit. The height can be adjusted between 33 7/8 and 34 1/2 inches to best suit your space. The user-reversible stainless steel door adds elegance to any setting and the stainless steel pro-style handle completes the look. A factory-installed lock offers added security, while the space-saving right-angle plug and integrated hinge provide added flexibility in unit placement.

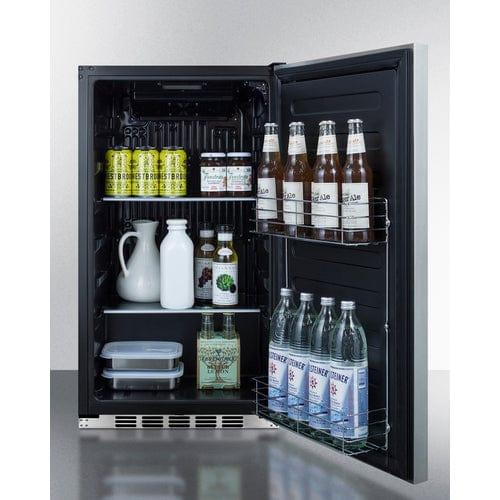

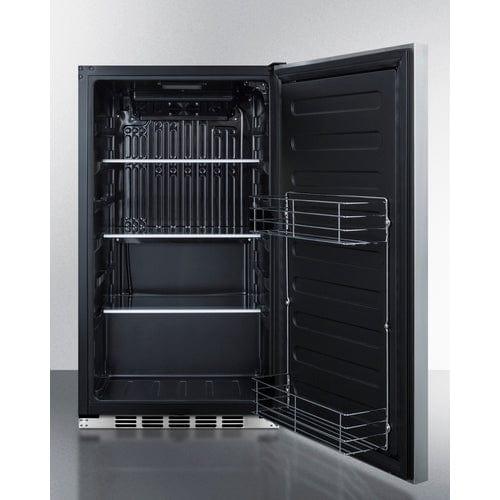

Inside, the FF195H34CSS utilizes an internal fan to ensure the unit is evenly cooled from top to bottom. An automatic defrost system ensures minimal user maintenance, while LED lighting allows full visibility of stored items in the jet black interior. Three adjustable slide-out glass shelves with six placement positions provide flexible storage capacity inside the 3.1 cu. ft. interior. A shelving brake system offers added safety when moving and storing contents, while two chrome door racks are ideal for storing condiments, canned beverages, and other larger items. The dial thermostat, with seven temperature settings, is located in the front upper-right corner for easy temperature management.
The FF195H34CSS is ENERGY STAR certified and designed for built-in or freestanding use. For this unit with a jet black exterior, see the FF195H34.
|
Overview
|
| Height of Cabinet |
34.0" (86 cm) |
| Width |
19.0" (48 cm) |
| Depth |
17.25" (44 cm) |
| Depth with Handle |
19.0" (48 cm) |
| Depth with door at 90° |
35.0" (89 cm) |
| Capacity |
3.13 cu.ft. (89 L) |
| Defrost Type |
Automatic |
| Door |
Stainless Steel |
| Cabinet |
Stainless Steel |
| US Electrical Safety |
ETL |
| Canadian Electrical Safety |
ETL-C |
| Sanitation |
ETL-S |
| Energy Usage/Year |
259.0kWh/year |
| Amps |
1.3 |
| Voltage/Frequency |
115 V AC/60 Hz |
| Weight |
75.0 lbs. (34 kg) |
| Shipping Weight |
125.0 lbs. (57 kg) |
| Parts & Labor Warranty |
1 Year |
| Compressor Warranty |
5 Years |
| UPC |
761101075679 |
|
Refrigerator Features
|
| Door Swing |
RHD |
| Reversible |
Yes |
| Shelf Type |
Glass |
| Shelf Qty |
3 |
| Adjustable Shelves |
Yes |
| Thermostat Type |
Dial |
| Fan Type |
Interior |
| Refrigerant Type |
R600a |
| Refrigerant Amount |
0.88oz. |
| High Side PSI |
320.0 |
| Low Side PSI |
120.0 |
| Level Legs Qty |
2 |
| Interior Light |
Yes |
| Temperature Range |
34 to 50ºF |
| Sound Level |
33.4 dB |
|
Dimensions
|
| Interior Height |
29.0" (74 cm) |
| Interior Width |
16.0" (41 cm) |
| Interior Depth |
12.75" (32 cm) |
| Compressor Step Height |
7.0" (18 cm) |
| Compressor Step Width |
16.0" (41 cm) |
| Compressor Step Depth |
6.25" (16 cm) |
| Exterior |
| LHD - Left hand door swing |
|
17.25" shallow depth
Ideal for home wet bars, island kitchens, and other applications with limited footprint space
ENERGY STAR certified
Rated by the DOE to perform with more efficiency than federal standards require, saving your unit energy and you on higher utility costs
Commercially approved
ETL-S listed to NSF-7 standard and meets UL-471 for use in commercial settings
Stainless steel door
Stainless steel door offers an elegant look
Automatic defrost
Reduced user maintenance with auto defrost system
Reversible door
User-reversible door swing makes it easy to adjust to your setting as needed
Factory installed lock
Keyed lock offers added security, with two keys included
Professional handle
Stainless steel handle adds an attractive touch
Adjustable shelves
Three glass shelves with brake system ensures safe, optimal storage
Door racks
Two chrome racks accommodate a variety of sizes for optimal interior storage
LED lighting
Automatically illuminates when the door is open for an attractive and energy efficient view
Black interior finish
Allows for easy cleaning and organization within the interior of the unit
Adjustable thermostat
Dial thermostat with seven temperature settings offers easy temperature management
Versatile construction
Versatile design allows for residential use
Sealed back
Space saving design for easier cleanability
Right-angle plug
Provides flexibility in unit placement without needing added depth
Fully finished stainless steel cabinet
Allows the unit to be used freestanding
Height adjustable
Four leveling legs allow you to adjust the height between 33 7/8" and 34 1/2" to best fit your undercounter space
100% CFC free
Environmentally friendly design does not contain ozone-damaging chemicals
CARB Compliant
Environmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
