Weatherproof design for reliable beverage storage in outdoor commercial settings, with a uniquely shallow depth for a better fit.
Summit's line of outdoor appliances includes slim-fitting display beverage centers designed for optimum storage and product presentation.

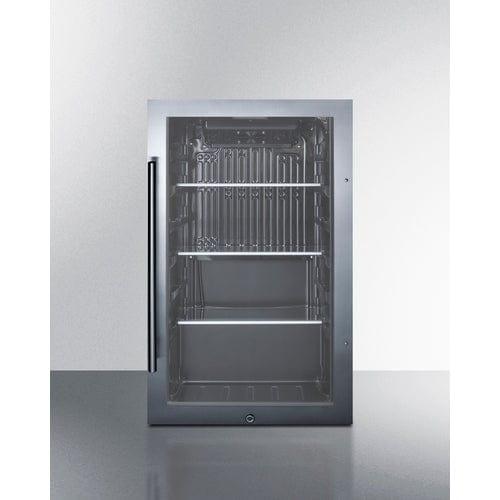

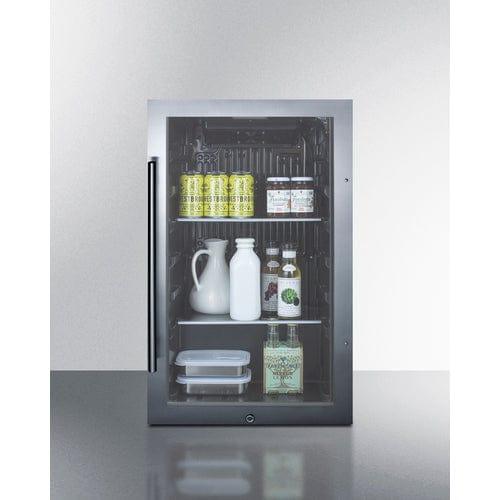

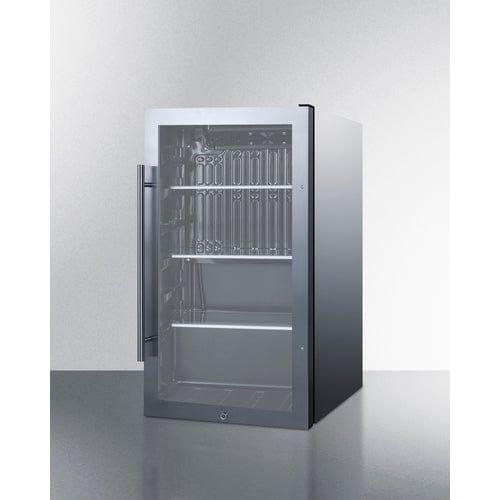

The SPR488BOSCSS features a versatile design that meets NSF-7 and UL-471 commercial standards, but is also approved for residential use. Sized at just 19 inches wide and 17 inches deep, it features a stainless steel cabinet with a sealed back for safe installation in the outdoors. The user-reversible double pane tempered glass door includes a seamless stainless steel trim and a pro-style handle. A factory-installed lock offers added security, while the space-saving right-angle plug and integrated hinge provide added flexibility in unit placement. Two leveling legs keep the unit level on uneven surfaces.
Inside, the SPR488BOSCSS utilizes an internal fan to ensure the interior is evenly cooled from top to bottom, while the automatic defrost system allows for minimal user maintenance. LED lighting allows full visibility of stored items in the jet black interior. Three adjustable glass shelves with six positions provide optimal storage capacity inside the 3.1 cu. ft. interior. The dial thermostat, with seven temperature settings, is located in the upper-right corner for easy temperature management.
The SPR488BOSCSS can be installed indoors or outdoors and is designed for built-in or freestanding use. For this unit with a panel-ready door, see the SPR488BOSCSSPNR.
|
Overview
|
| Height of Cabinet |
33.0" (84 cm) |
| Width |
19.0" (48 cm) |
| Depth |
17.0" (43 cm) |
| Depth with Handle |
18.63" (47 cm) |
| Depth with door at 90° |
34.75" (88 cm) |
| Capacity |
3.13 cu.ft. (89 L) |
| Defrost Type |
Automatic |
| Door |
Glass |
| Cabinet |
Stainless Steel |
| US Electrical Safety |
ETL |
| Canadian Electrical Safety |
ETL-C |
| Sanitation |
ETL-S |
| Energy Usage/Year |
285.0kWh/year |
| Amps |
1.3 |
| Voltage/Frequency |
115 V AC/60 Hz |
| Weight |
75.0 lbs. (34 kg) |
| Parts & Labor Warranty |
1 Year |
| Compressor Warranty |
5 Years |
| UPC |
761101077802 |
|
Refrigerator Features
|
| Door Swing |
RHD |
| Reversible |
Yes |
| Shelf Type |
Glass |
| Shelf Qty |
3 |
| Adjustable Shelves |
Yes |
| Can Storage |
Yes |
| Thermostat Type |
Dial |
| Fan Type |
Interior |
| Refrigerant Type |
R600a |
| Refrigerant Amount |
0.88oz. |
| High Side PSI |
320.0 |
| Low Side PSI |
120.0 |
| Level Legs Qty |
2 |
| Interior Light |
Yes |
| Temperature Range |
34 to 50ºF |
| Sound Level |
32.6 dB |
|
Dimensions
|
| Interior Height |
29.0" (74 cm) |
| Interior Width |
16.0" (41 cm) |
| Interior Depth |
12.75" (32 cm) |
| Compressor Step Height |
7.0" (18 cm) |
| Compressor Step Width |
16.0" (41 cm) |
| Compressor Step Depth |
6.25" (16 cm) |
| Exterior |
| LHD - Left hand door swing |
FA Rear - Fan assist |
| FA Front - Fan assist |
Latch - Factory-installed door latch requires manual release to open unit |
| HG - Hospital grade cord |
|
| Door |
| T1 Door Tint |
T1S Door Tint |
| T2 Door Tint |
T3 Door Tint |
| T4 Door Tint |
|
Built-in capable
Make the best use of space by installing your refrigerator under the counter
Weatherproof design
Approved for use in the outdoors, with a sealed exterior and double pane tempered glass door
Commercially approved
ETL-S listed to NSF-7 standard and meets UL-471 for use in commercial settings
Double pane tempered glass door
Heat resistant design provides clear view of stored products, with an elegant trim in seamless stainless steel
Automatic defrost
Reduced user maintenance with auto defrost system
17" shallow depth
Ideal for home wet bars, island kitchens, and other applications with limited footprint space
Reversible door
User-reversible door swing makes it easy to adjust to your setting as needed
Factory installed lock
Keyed lock offers added security, with two keys included
Professional handle
Stainless steel handle adds an attractive touch
Adjustable shelves
Three glass shelves with six positions for optimal storage and easy cleaning
LED lighting
Automatically illuminates when the door is open for an attractive and energy efficient view
Black interior finish
Allows for easy cleaning and organization within the interior of the unit
Adjustable thermostat
Dial thermostat with seven temperature settings offers easy temperature management
Versatile construction
Versatile design allows for residential use
Sealed back
Space saving design with easier cleanability and added protection from the elements
Fully finished stainless steel cabinet
Allows the unit to be used freestanding
Right-angle plug
Provides flexibility in unit placement without needing added depth
100% CFC free
Environmentally friendly design does not contain ozone-damaging chemicals
CARB Compliant
Environmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
