Panel-ready door trim lets you customize the unit to best match your setting.
Summit's line of built-in undercounter outdoor appliances includes slim-fitting display beverage centers designed for optimum storage and product presentation.

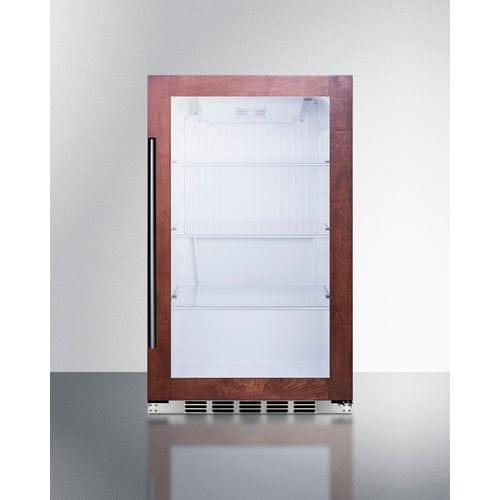

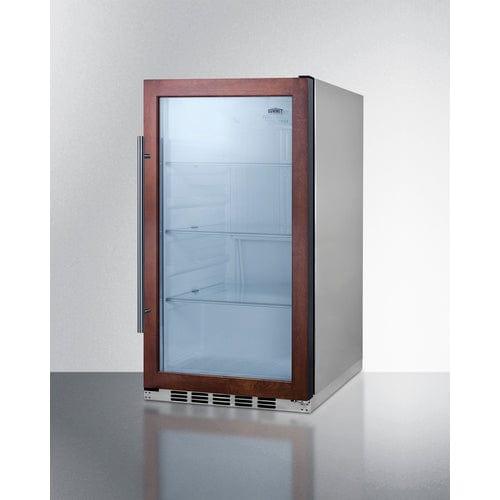

The SPR489OSCSSPNR features a versatile design that meets NSF-7 and UL-471 commercial standards, but is also approved for residential use. Sized with a slim 19 inch width and 17 3/4 inch shallow depth, it features a stainless steel wrapped cabinet with a sealed back for safe installation in the outdoors. The height can be adjusted between 33 7/8 and 34 1/2 inches to best suit your space. The double pane tempered glass door includes a panel-ready trim that lets you create a custom look to match or complement other cabinetry (panel dimensions: 18 3/4 inch W x 31 9/16 inch H at a minimum of 3/4 inches thick). Customers supply their own handle to best match their setting. The space-saving right angle plug and integrated hinge offer added space savings, while the stainless steel kickplate completes the look.
Inside, the SPR489OSCSSPNR utilizes an internal fan to ensure the interior is evenly cooled from top to bottom. An automatic defrost system allows for minimal user maintenance, while the white interior and LED lighting allows full visibility of stored items. Three adjustable glass shelves with six positions provide optimal storage capacity inside the 3.1 cu. ft. interior. The dial thermostat, with seven temperature settings, is located in the upper-right corner for easy temperature management.
The SPR489OSCSSPNR can be installed indoors or outdoors and is designed for built-in or freestanding use. Additional panel-ready choices are available in 15 inch, 18 inch, and 24 inch wide fits. Browse our full selection to find the perfect fit.
|
Overview
|
| Height of Cabinet |
34.0" (86 cm) |
| Width |
19.0" (48 cm) |
| Depth |
17.75" (45 cm) |
| Depth with door at 90° |
34.75" (88 cm) |
| Capacity |
3.13 cu.ft. (89 L) |
| Defrost Type |
Automatic |
| Door |
Glass/Panel-Ready Frame |
| Cabinet |
Stainless Steel |
| US Electrical Safety |
ETL |
| Canadian Electrical Safety |
ETL-C |
| Sanitation |
ETL-S |
| Energy Usage/Year |
285.0kWh/year |
| Amps |
1.3 |
| Voltage/Frequency |
115 V AC/60 Hz |
| Weight |
85.0 lbs. (39 kg) |
| Shipping Weight |
130.0 lbs. (59 kg) |
| Parts & Labor Warranty |
1 Year |
| Compressor Warranty |
5 Years |
| UPC |
761101075082 |
|
Refrigerator Features
|
| Door Swing |
RHD |
| Reversible |
Factory Reversible |
| Height Adjustable |
Yes |
| Shelf Type |
Glass |
| Shelf Qty |
3 |
| Adjustable Shelves |
Yes |
| Can Storage |
Yes |
| Thermostat Type |
Dial |
| Fan Type |
Interior |
| Refrigerant Type |
R600a |
| Refrigerant Amount |
0.88oz. |
| High Side PSI |
320.0 |
| Low Side PSI |
120.0 |
| Level Legs Qty |
2 |
| Interior Light |
Yes |
| Temperature Range |
34 to 50ºF |
| Sound Level |
32.6 dB |
|
Dimensions
|
| Interior Height |
29.0" (74 cm) |
| Interior Width |
16.0" (41 cm) |
| Interior Depth |
12.75" (32 cm) |
| Compressor Step Height |
7.0" (18 cm) |
| Compressor Step Width |
16.0" (41 cm) |
| Compressor Step Depth |
6.25" (16 cm) |
| Door |
| T1 Door Tint |
T1S Door Tint |
| T2 Door Tint |
T3 Door Tint |
| T4 Door Tint |
|
| Exterior |
| Latch - Factory-installed door latch requires manual release to open unit |
LHD - Left hand door swing |
|
Shallow depth
Unique 17 3/4" depth is ideal for home wet bars, island kitchens, and other applications with limited footprint space
Built-in capable
Make the best use of space by installing your refrigerator under the counter
Panel-ready door trim
Door frame can be customized with a custom overlay panel (panel frame dimensions: 31 9/16" H x 18 3/4" W at 3/4" minimum thickness)
Weatherproof design
Approved for use in the outdoors, with a sealed exterior and double pane tempered glass door
Commercially approved
ETL-S listed to NSF-7 standard and meets UL-471 for use in commercial settings
Stainless steel wrapped exterior
Cabinet features 304 grade stainless steel construction for added durability and a professional look
Double pane tempered glass door
Heat resistant design provides clear view of stored products
Automatic defrost
Reduced user maintenance with auto defrost system
Adjustable shelves
Three glass shelves with six positions for optimal storage and easy cleaning
LED lighting
Automatically illuminates when the door is open for an attractive and energy efficient view
White interior finish
White interior offers improved visibility of stored contents
Adjustable thermostat
Dial thermostat with seven temperature settings offers easy temperature management
Versatile construction
Meets both residential and commercial standards
Sealed back
Space saving design with easier cleanability and added protection from the elements
Right-angle plug
Provides flexibility in unit placement without needing added depth
Factory installed lock
Door includes a lock and key for optional security. If planning to use the lock, be sure to include a 5/8" hole in the lower center of your custom panel
Height adjustable
Four leveling legs allow you to adjust the height between 33 7/8" and 34 1/2" to best fit your undercounter space
Fully finished cabinet
Allows the unit to be used freestanding
100% CFC free
Environmentally friendly design does not contain ozone-damaging chemicals
CARB Compliant
Environmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
