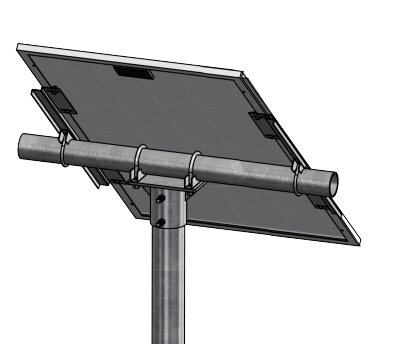

Tamarack Solar UNI-PGRM/1P1-47 Top Of Pole Mount
The Tamarack Solar UNI-PGRM/1P1-47 is a durable and efficient top-of-pole mount designed for solar panels. With a sturdy construction and versatile design, this mount provides a secure and elevated platform for solar panels, maximizing energy production and minimizing installation time and costs.
UNI-PGRM/1P1-47 (for modules 72”- 96” long)
Features:
- Mount one solar module with an area of 25 sq-ft and a frame thickness between 1.18-inches and 2-inches*
- Suitable for wind speed up to 150 MPH and snow load up to 100 PSF snow load with a
maximum post height of 6-feet above ground - Tilt angle adjustable from 10° to 60°
- Ships by UPS - 2 Boxes
- Simple one-person installation and adjustment
* Larger modules can be mounted with reduced wind and snow load.
Top of Pole – Portrait Orientation (PGRM)
The popular PGRM Mounts are designed for up to 6 modules per mount in portrait orientation. Available tilt angle ranges from 0° to 90° and allows easy seasonal adjustability. Use for modules with a minimum length of 35.5-inches and a maximum sq. footage of 24.78. Clamp attachment uses the lip on the back of module frame and accommodates frame thickness between 1.18-inches and 2-inches. Rated for windspeeds up to 115 MPH. Install up to 92 square feet of modules on a single 4” Schedule 40 pole and up to 130 square feet of modules on two 4” schedule 40 poles.
