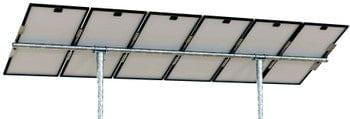

The Tamarack Solar Top Of Pole Mount - PGRM - UNI-PGRM/6P2 is a durable and versatile mounting solution for solar panels. With easy installation and adjustable tilt, it provides maximum energy production. Made with high-quality materials, it ensures long-lasting performance. Perfect for off-grid or grid-tied systems.
UNI-PGRM/6P2 (for modules 38”- 72” long)
VERTICAL AND HORIZONTAL SCHEDULE-40* PIPE IS NOT INCLUDED. PURCHASE LOCALLY.
* Some wind speeds and snow loads require three vertical poles and/or Sch-80 horizontal/vertical pipe.
If an additional vertical pole is required order a 70-0300-PGM-B Pole Cap.
Features:
- Mount six solar modules with a total area of 150 sq-ft and a frame thickness between 1.18 and 2 inches*
- Suitable for wind speed up to 150 MPH and snow load up to 100 PSF
- Maximum post height of 6-feet above ground
- Tilt angle from 10° to 60°
- Ships via UPS
- Simple one-person installation and adjustment
* Larger modules can be mounted with reduced wind and snow load.
