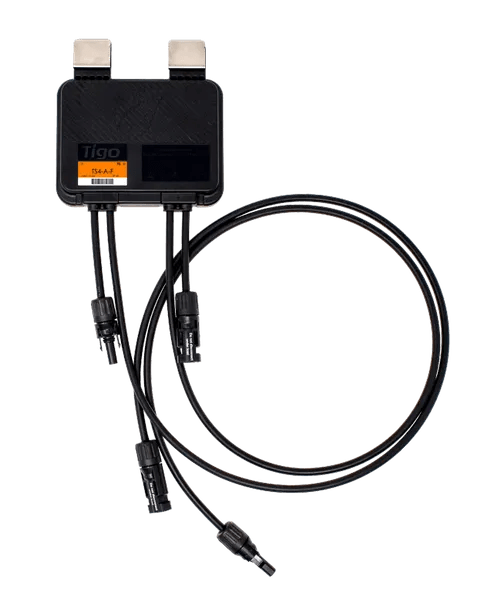

Tigo TS4-A-F

The TS4-A-F enables cost effective rapid shutdown functionality in a 1 module to 1 TS4 configuration. The TS4-A-F is both IEC and UL certified for global acceptance. The TS4-A-F is UL PV Rapid Shutdown System (PVRSS) certified with hundreds of inverters to comply with NEC 2014, 2017, and 2020 rapid shutdown requirements. Many of the inverters have integrated the RSS transmitter, which communicates with the TS4-A-F over PLC, enabling plug and play installations.

Functions

• Rapid Shutdown


Features and benefits

• Up to 700W per channel
• IEC and UL certified
• Meets US NEC rapid shutdown safety requirements
• UL PVRSS certified with the largest network of inverters
• 16-80V, up to 25A (per channel)
• MC4 (standard) connectors
• Snaps to module frame for easy mounting
• Does not require ground wire
• PLC communication
• 25-year warranty

Configuration

• 1 module per TS4

Required

• RSS Transmitter
